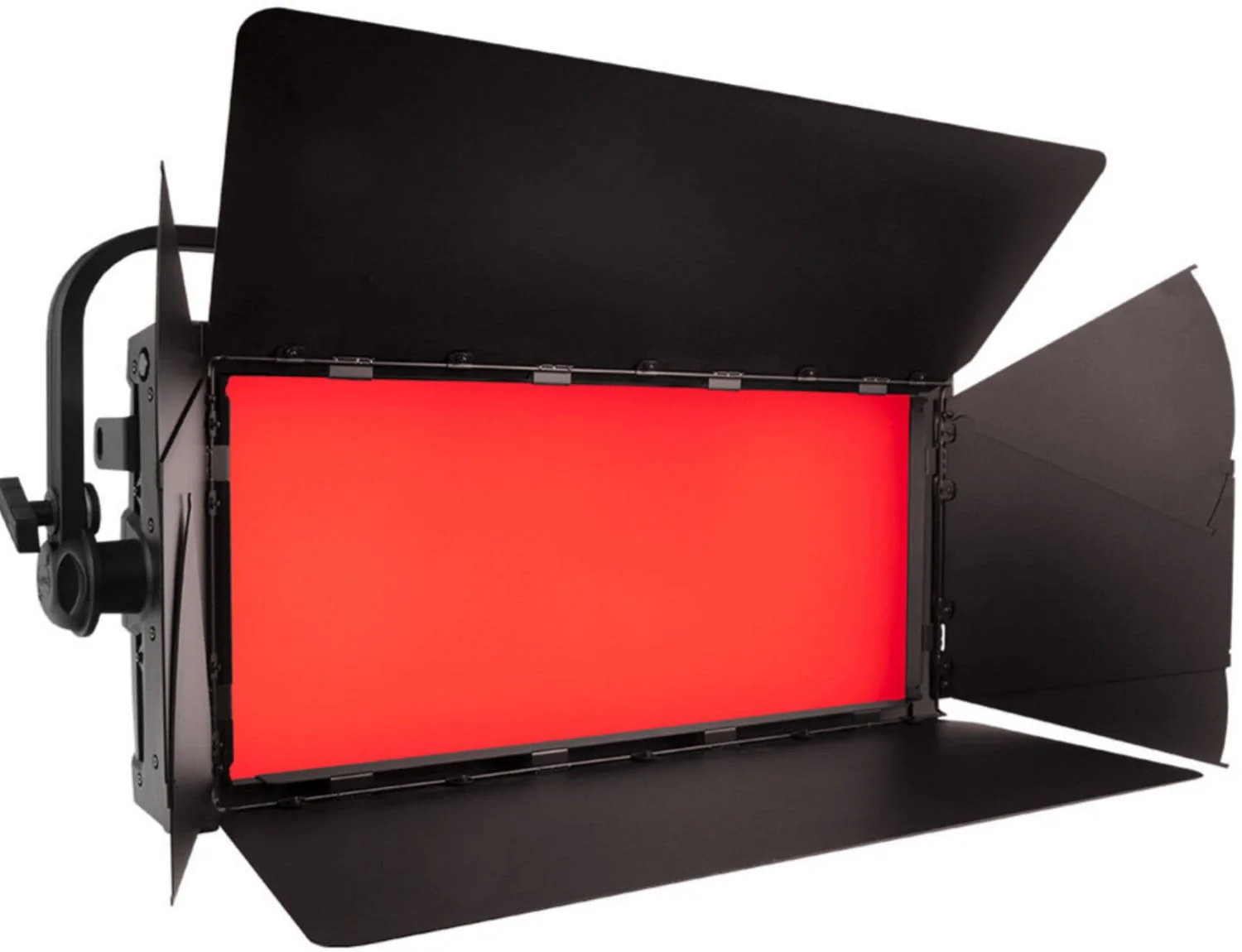

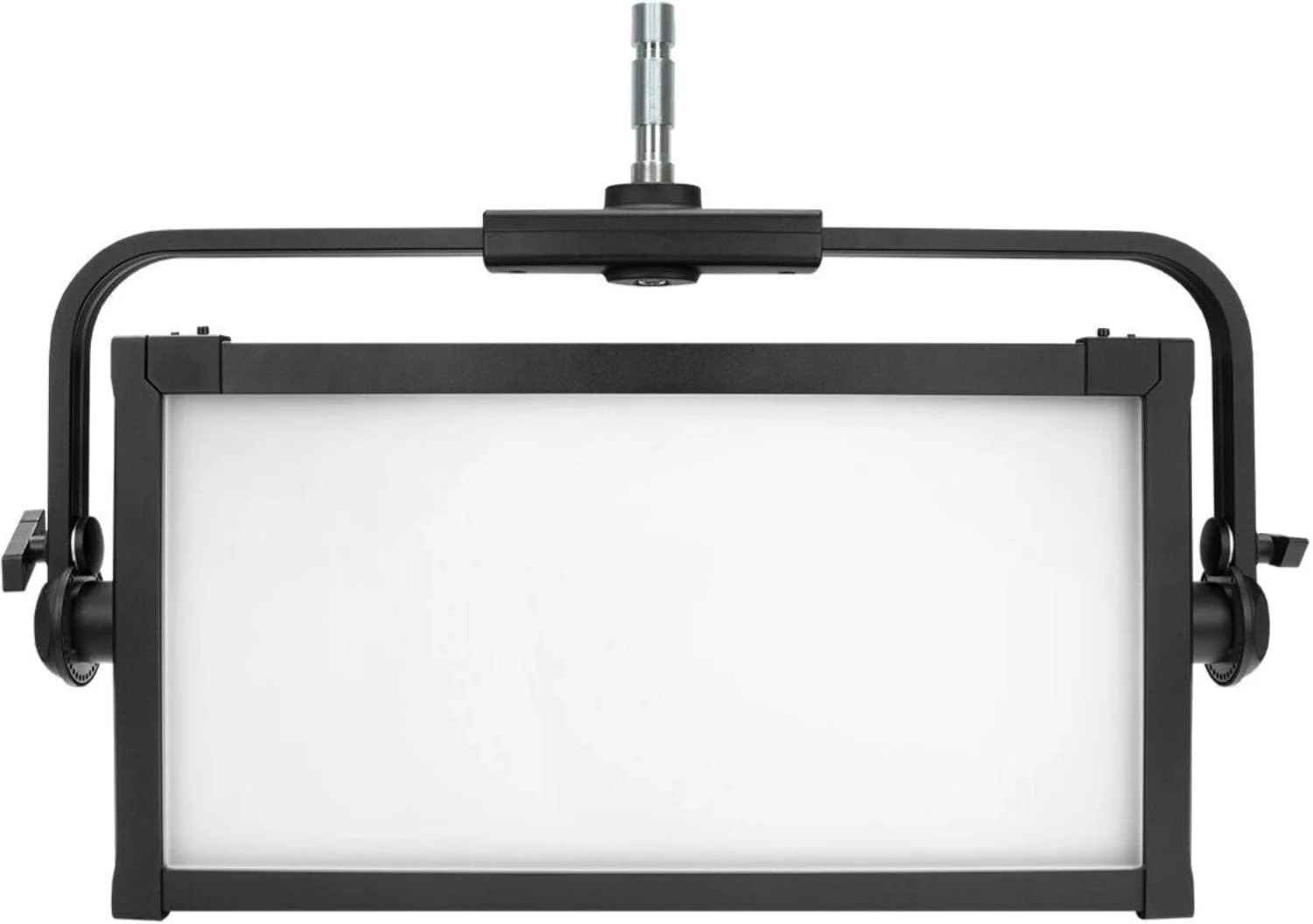

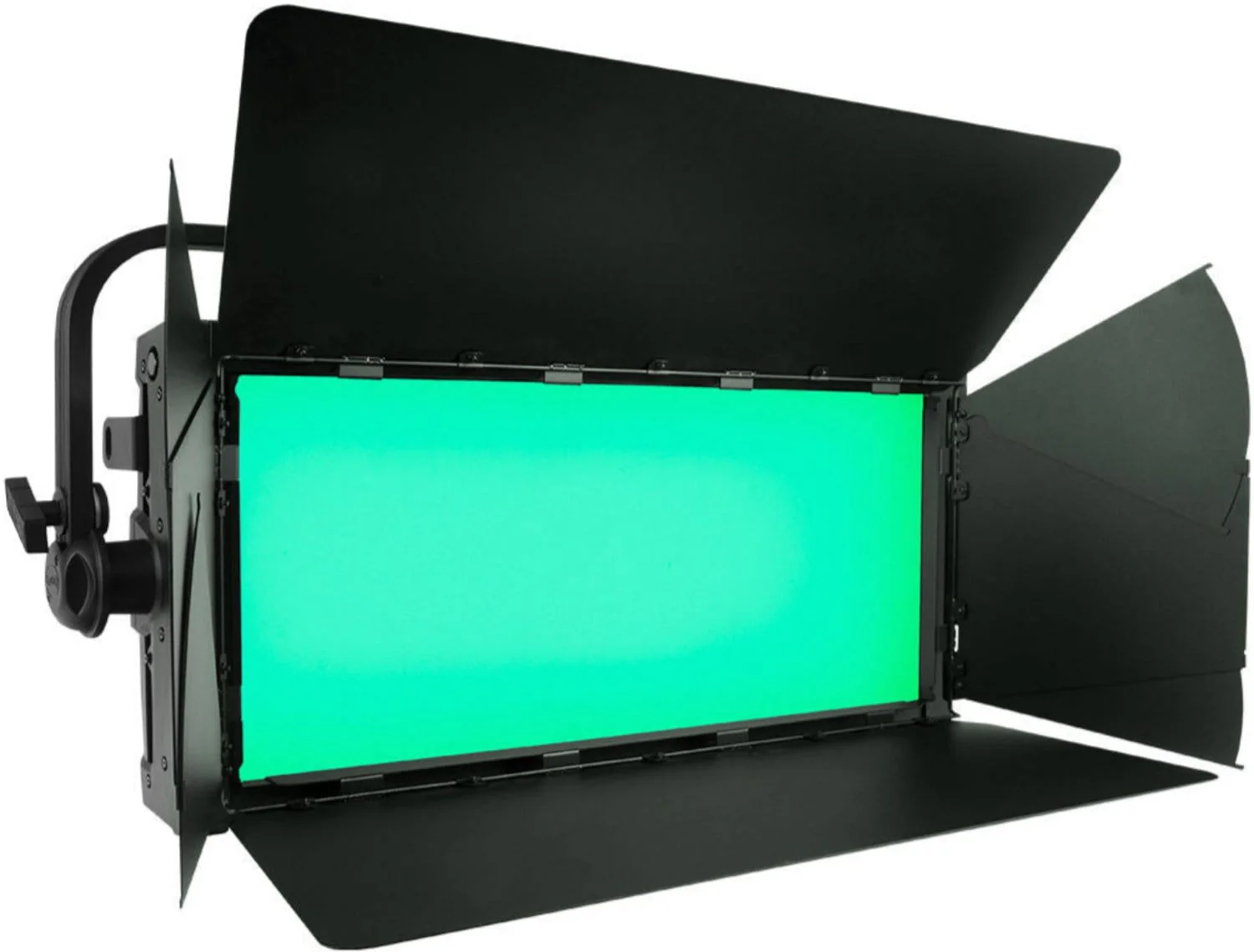

Elation KL PANEL XL IP LED Light

Elation KL PANEL XL IP IP65 Full-colour-spectrum LED Soft Light

The KL Panel XL IP from Elation Professional is a full-colour spectrum LED light fixture optimized for tenable white light, making it ideal for film and television production. With its highly efficient 6-in-1 design, this fixture delivers up to 40,000 lumens at a 100° peak angle, offering versatile performance as a key or fill light. Engineered to endure the rigors of fast-paced production environments, the KL Panel XL IP is both compact and portable. It features built-in power, battery options, and remote operation via DMX, Art-NET, or Elation's wireless system, providing flexibility and convenience for professionals.

Features:

• Perfect for film and television productions
• Up to 40,000 lumens total output
• 2000-10,000K color temperature with 95 CRI
• Full color spectrum LED
• Built-in power supply
• 4-pin XLR battery input
• DMX, Art-NET, sACN, and wireless control options
• Integrated OLED display for easy operation

Specifications:

• Item Type: 1x LED Array LED Light Panel
• Included Light Modifier: 1x Barndoors
• Photometrics (3200K): 1455 fc / 15,672 Lux at 3.3' | 161 fc / 1741 Lux at 9.8' | 58 fc / 627 Lux at 16.4'
• Photometrics (5600K): 1385 fc / 14,913 Lux at 3.3' | 153 fc / 1657 Lux at 9.8' | 55 fc / 597 Lux at 16.4'
• Color Temperature: 2000 to 10,000K
• Color Modes: RGB, Daylight, Tungsten
• Color Accuracy: CRI 95
• Dimming: Built-in dimmer / DMX / RDM
• Wireless Remote: Wireless DMX (E-FLY)
• Power Source: AC Power (cable included), Battery (not included)
• Battery: 1x rechargeable, 24 to 36 VDC (not included)
• Power Consumption: 570 W
• Fixture Mounting: 1x 1-1/8" stud (via yoke mount)
• Cooling System: Fan
• Lamp Life: 50,000 hours
• Inputs/Outputs: 5-pin and 3-pin XLR DMX input/output, powerCON TRUE1 AC power input, USB-A for power/service
• Included Cable: 1x USA Type-A/B to powerCON TRUE1 cable
