Elation SIXBAR 1000 12x12-Watt RGBAW+UV LED Wash Light

The new SIXBAR 1000 features (12) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 30° beam angle, individual control of each LED, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, ArtNet, KlingNet and RDM (remote device management) protocol support, 3pin and 5pin DMX, powerCon, and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 145W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).

Features:
  • 30° Beam Angle
  • ArtNet and Klingnet Support
  • RDM - Remote Device Management
  • Individual LED Control
  • Variable Dimming Curve Modes
  • Multiple Unit Power Linking
  • Rugged Die-Cast Aluminum Exterior
  • Flicker Free Operation for TV and FILM
Source
  • (12) 12W 6-in-1 RGBAW+UV LEDs
  • 100,000 Hour Average LED Life
Photometric Data
  • 8,500 LUX 790 FC @3.3' (1m) (30° Full ON)
  • 3,660 LUX 340 FC @6.6' (2m) (30° Full ON)
  • 2,040 LUX 190 FC @9.8' (3m) (30° Full ON)
  • 1,290 LUX 120 FC @13.1' (4m) (30° Full ON)
  • 878 LUX 82 FC @16.4' (5m) (30° Full ON)
Effects
  • Strobe and Chase Effects
  • Individual LED Control
  • Variable and Selectable Dimming Curves
Control/Connections
  • 8 DMX Channel Modes (6/7/11/13/36/72/75/79)
  • 4 Button Control Panel and LCD Menu Display
  • ArtNet + KlingNET Protocol Support
  • RDM (Remote Device Management)
  • (2) etherCON Ports
  • 3pin and 5pin DMX In/Out
  • powerCON Power In/Out
Size/Weight
  • Length: 35.4" (900mm)
  • Width: 8.1" (206.4mm) *with included shield
  • Vertical Height: 6.1" (155mm)
  • Weight: 16.0 lbs. (7.3 kg)
Electrical/Thermal
  • AC 110-240V - 50/60Hz
  • 145W Max Power Consumption
  • Power Linking: 6pcs @110V/15pcs @240V
  • 5°F to 113°F (-15°C to 45°C)
  • UV Wavelength: 395nm
Approvals/Ratings
  • CE | IP20
Installation
  • Rigging: Integrated Dual Rigging Brackets
  • Working Position: Any (360°)
Included Items
  • powerCON Cable
  • Frost Filter
  • Reflector Shield
Elation SIXBAR 1000 12x12w RGBAW Plus UV LED Wash Light - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

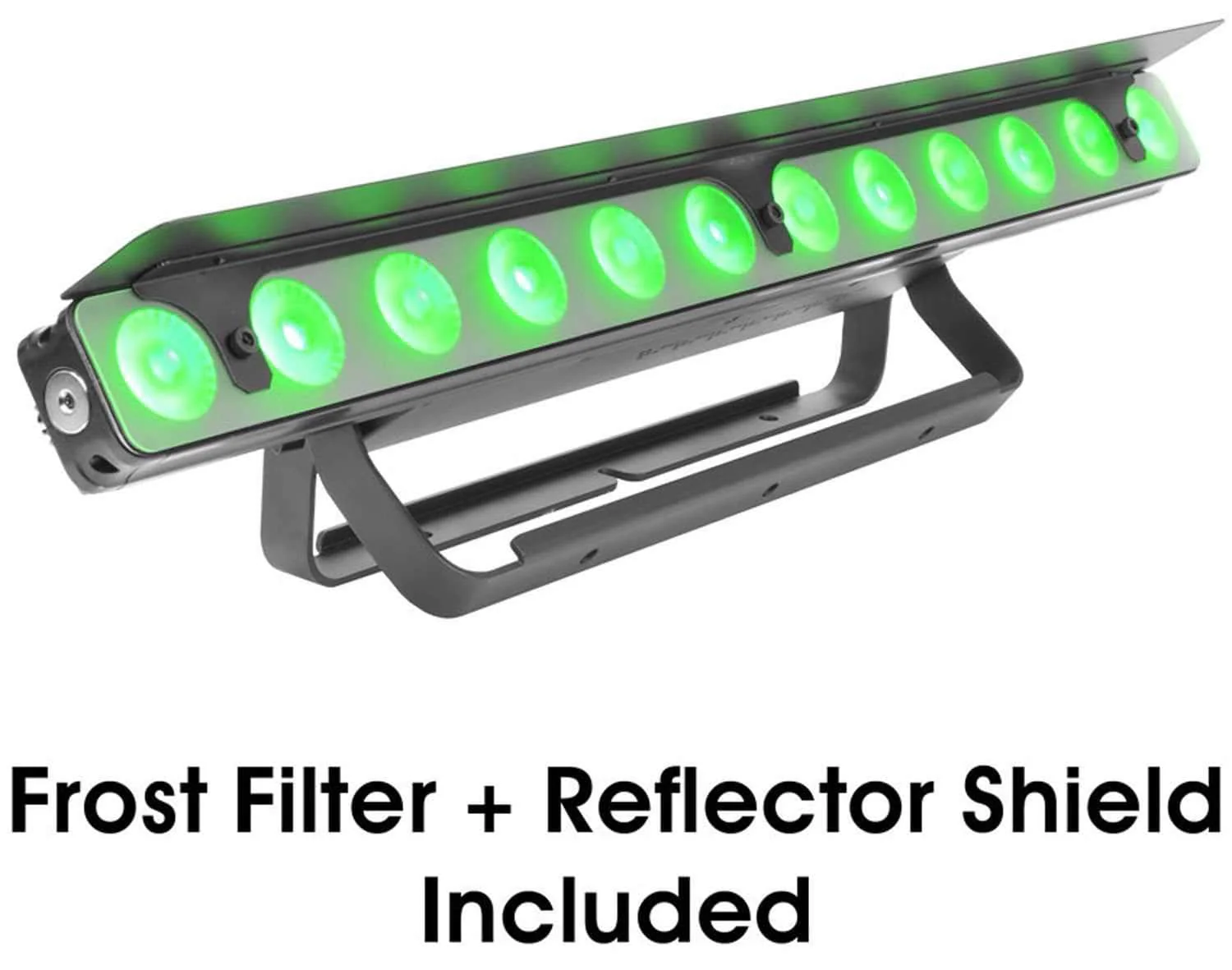

Elation SIXBAR 1000 12x12w RGBAW Plus UV LED Wash Light - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

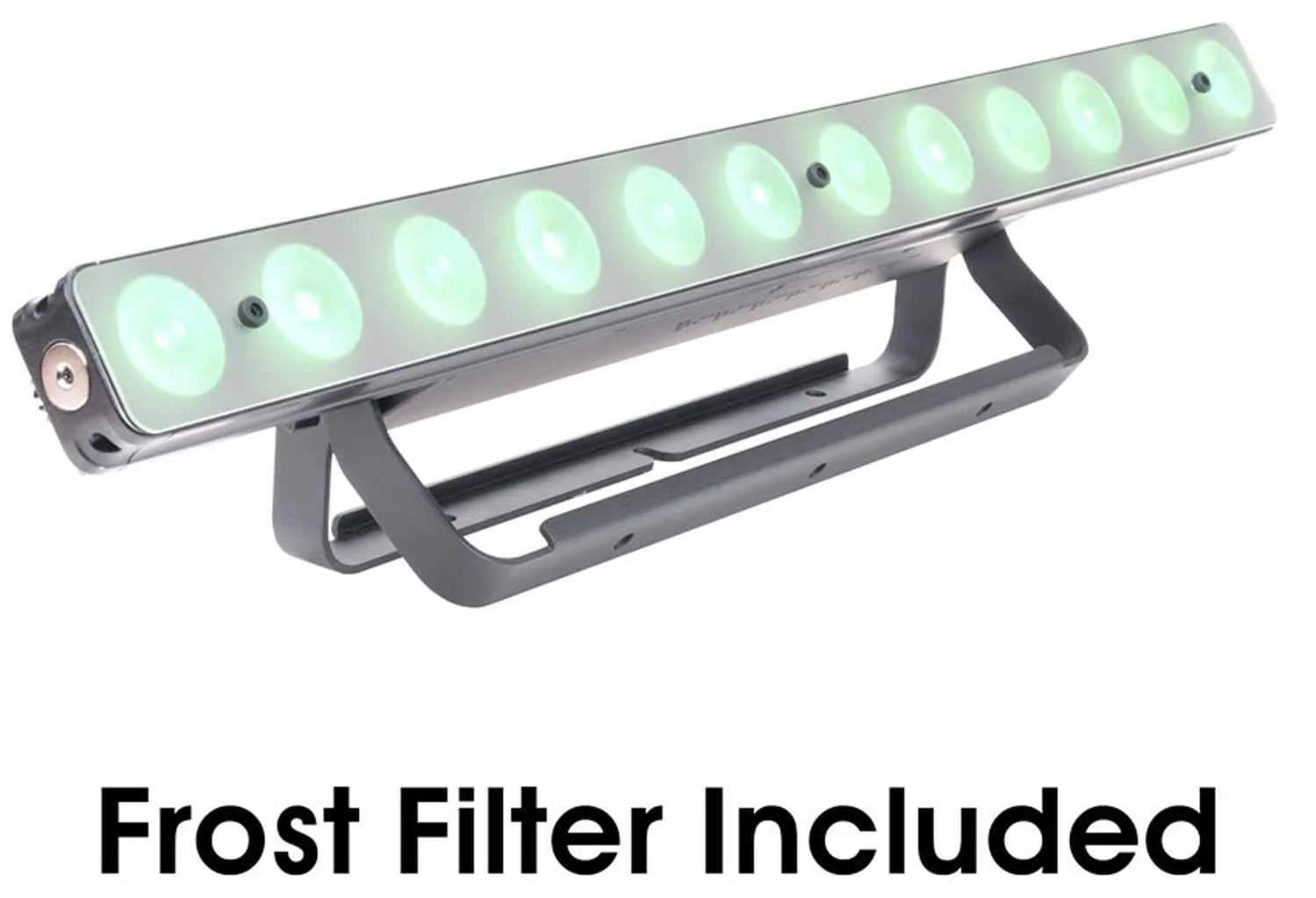

Elation SIXBAR 1000 12x12w RGBAW Plus UV LED Wash Light - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

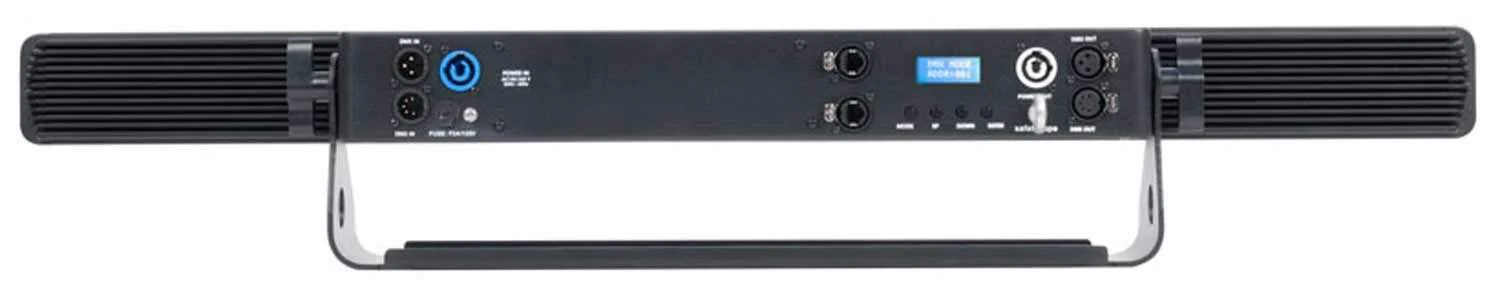

Elation SIXBAR 1000 12x12w RGBAW Plus UV LED Wash Light - Image 5
