Elation SIXBAR 500 6x12w RGBAW Plus UV LED Wash Light

Elation SIXBAR 500 6x12-Watt RGBAW+UV LED Wash Light

The new SIXBAR 500 features (6) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 30° beam angle, individual control of each LED, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, ArtNet, KlingNet and RDM (remote device management) protocol support, 3pin and 5pin DMX, powerCon, and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 93W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).

Features:

• 30° Beam Angle
• ArtNet and Klingnet Support
• RDM - Remote Device Management
• Individual LED Control
• Variable Dimming Curve Modes
• Multiple Unit Power Linking
• Rugged Die-Cast Aluminum Exterior
• Flicker Free Operation for TV and FILM

Source

• (6) 12W 6-in-1 RGBAW+UV LEDs
• 100,000 Hour Average LED Life

Photometric Data

• 6,500 LUX 604 FC @3.3' (1m) (30° Full ON)
• 1,934 LUX 180 FC @6.6' (2m) (30° Full ON)
• 901 LUX 84 FC @9.8' (3m) (30° Full ON)
• 508 LUX 47 FC @13.1' (4m) (30° Full ON)
• 318 LUX 30 FC @16.4' (5m) (30° Full ON)

Effects

• Strobe and Chase Effects
• Individual LED Control
• Variable and Selectable Dimming Curves

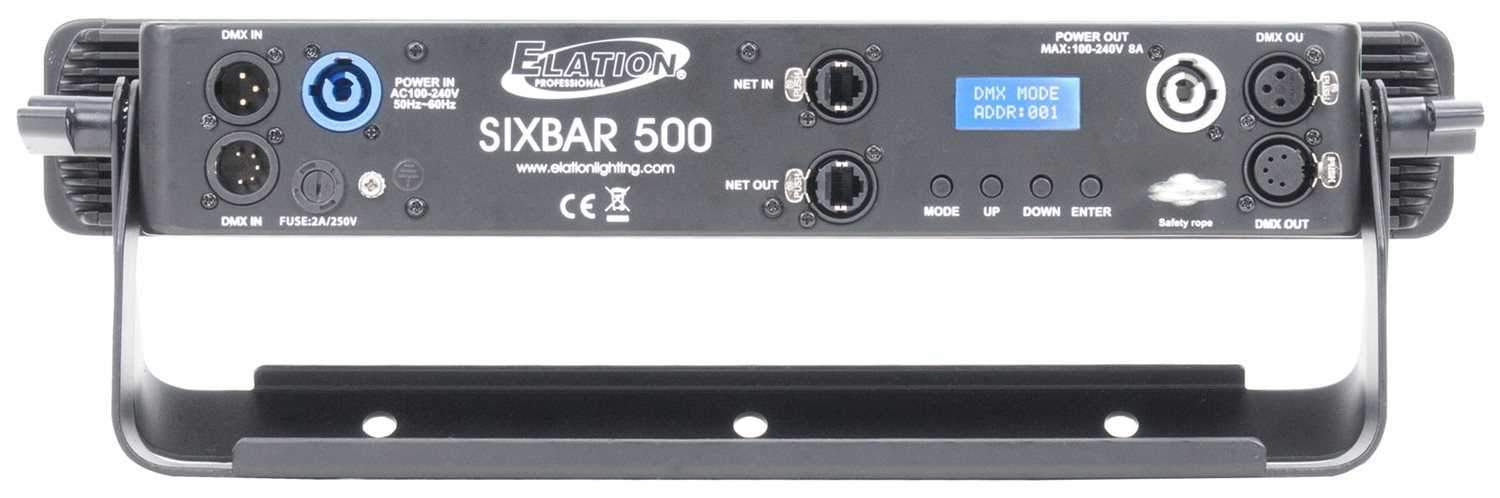

Control/Connections

• 8 DMX Channel Modes (6/7/11/13/18/36/39/43)
• 4 Button Control Panel and LCD Menu Display
• ArtNet + KlingNET Protocol Support
• RDM (Remote Device Management)
• (2) etherCON Ports
• 3pin and 5pin DMX In/Out
• powerCON Power In/Out

Size/Weight

• Length: 17.7" (450mm)
• Width: 8.1" (206.4mm) *with included shield
• Vertical Height: 6.1" (155mm)
• Weight: 9.0 lbs. (4.1 kg)

Electrical/Thermal

• AC 110-240V - 50/60Hz
• 93W Max Power Consumption
• Power Linking: 11pcs @110V/25pcs @240V
• 5°F to 113°F (-15°C to 45°C)
• UV Wavelength: 395nm

Approvals/Ratings

• CE | IP20

Installation

• Rigging: Integrated Dual Rigging Brackets
• Working Position: Any (360°)

Included Items

• powerCON Cable

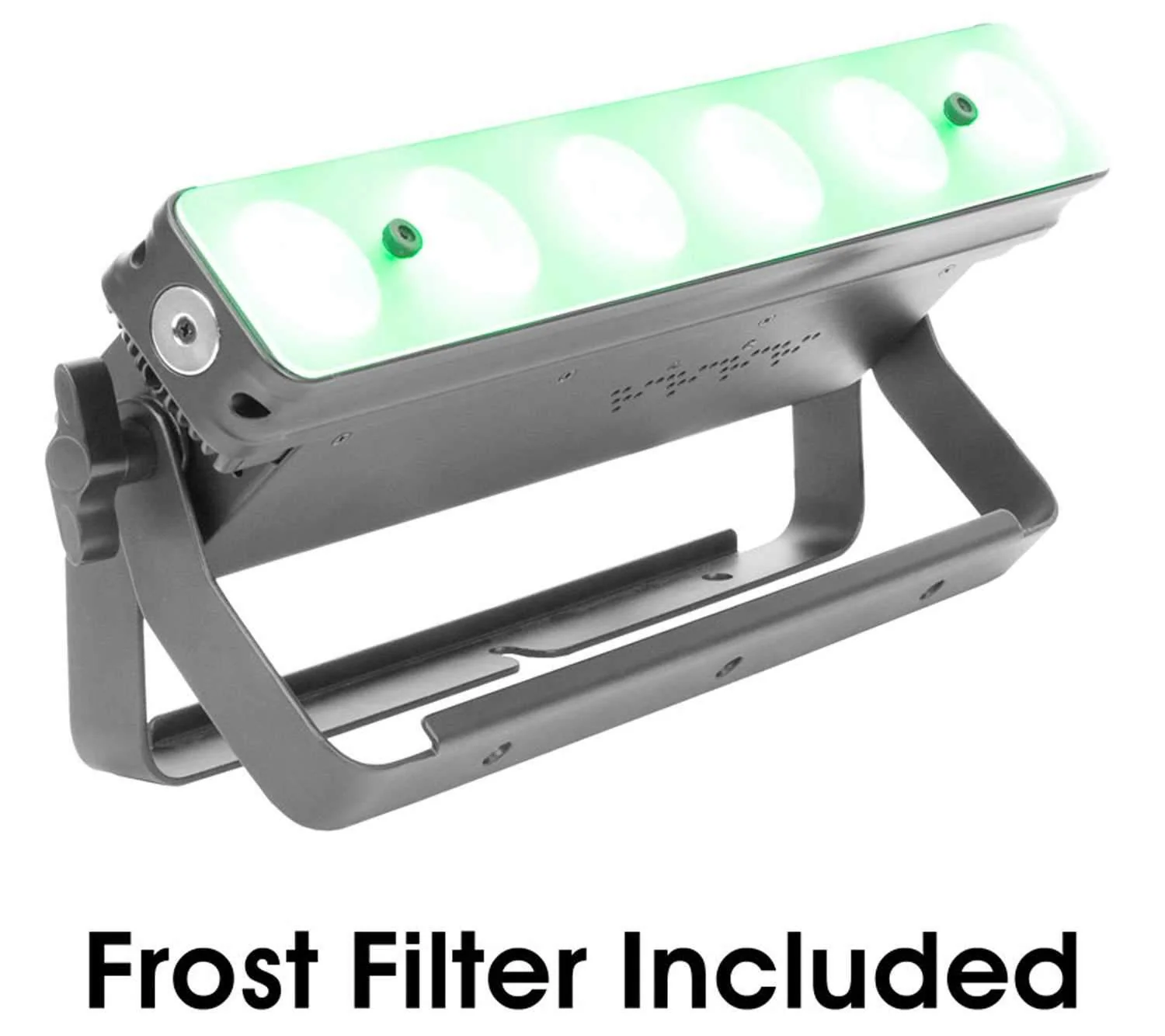

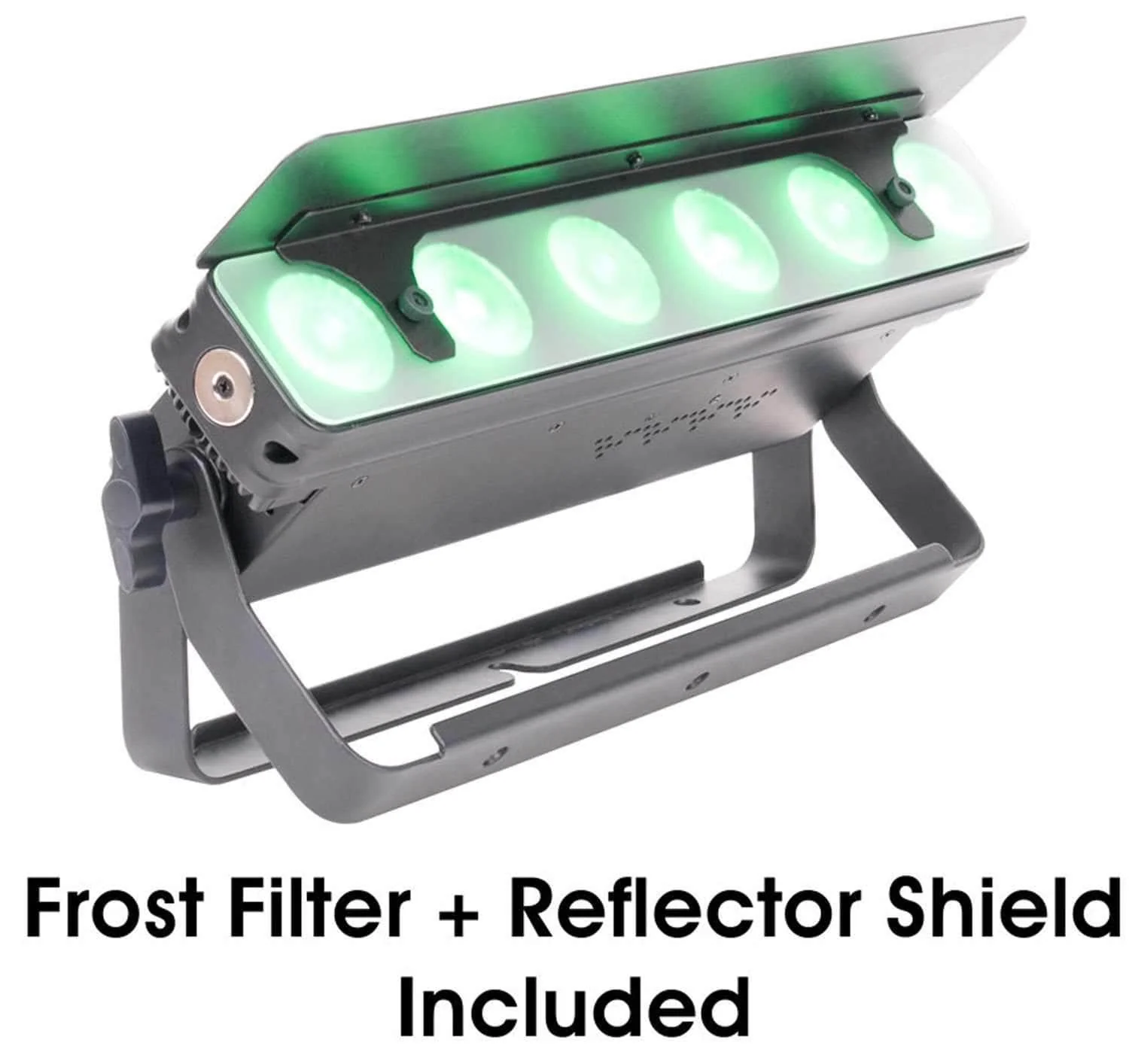

• Frost Filter
• Reflector Shield
