DiGiCo SD8 Digital Mixing Console - MADI Only
The DiGiCo SD8 Digital Mixing Console offers 120 input channels at 48kHz/96kHz, providing versatile channel processing across both inputs and outputs. It features Channel Delay, Single and Multi-Channel Presets, Dual insert points, Hi- and Lo-pass filters at 24dB/octave, and four-band parametric EQ with band curve selection. The console also includes DiGiCo’s DYN 1 (Compressor, De-esser or Multiband Compressor) and DYN 2 (Gate, Compressor or Ducker). With 190 Dynamic EQ processors assignable to any input or output, the SD8 ensures dynamic processing on each parametric band, along with 190 Multiband Compressors and 190 DiGiTuBes. Every channel is equipped to provide the same high-quality signal path and feature set.
Features:
- 120 Input Channels
- 48 Aux / Sub-Group Busses
- LR/LCR/LCRS Master Buss
- 16 x 16 Full Processing Matrix
- 190 Dynamic Equalizers
- 48/96kHz Sample Rate
Specifications:
- 37 x 100mm touch-sensitive, motorised faders
- 1 x 15” LCD high-resolution touchscreen
- 38 x 20-segment LED bargraph meters
- 1 x ¼” Headphone socket
- 1 x USB 2.0 slot

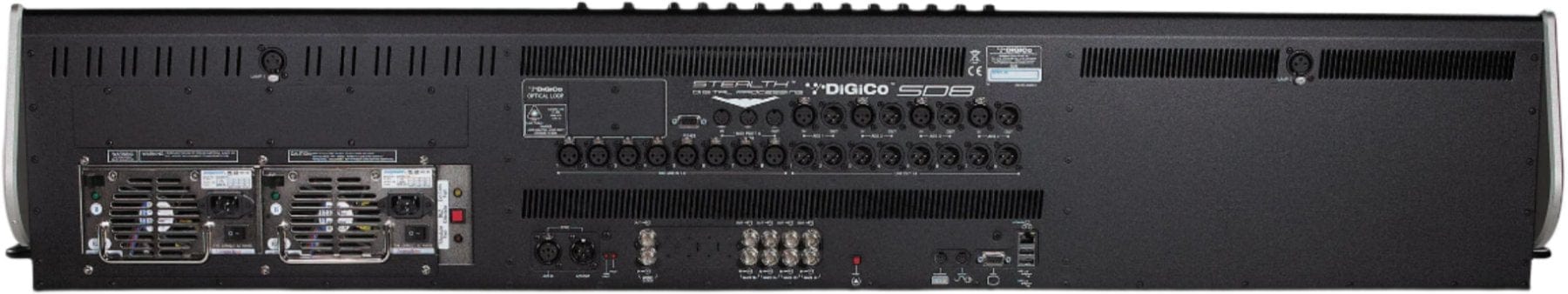

- 2 x Redundant PSUs
- 2 x XLR3 1.2 – 12V light connections
- 8 x XLR Mic/Line Inputs
- 8 x XLR Line Outputs
- 4 x XLR AES/EBU Inputs (8 channels)
- 4 x XLR AES/EBU Outputs (8 channels)
- 1 x MIDI In/Thru/Out (5 pin DIN)
- 1 x Word Clock I/O BNC
- 2 x Redundant MADI BNC I/O
- 1 x XLR AES Sync I/O
- 1 x VGA Port (1024 x 768 Resolution)
- 1 x Ethernet port
- 2 x USB 2.0 slots
- 1 x MultiMode Optocore Interface (Optional)
- Sample Rate: 48kHz or 96kHz
- Processing Delay: 2ms Typical @ 48k, 1.1ms @ 96k
- Internal Processing: Up to 40-bit, Floating Point
- A/D & D/A: 24-bit Converter Bit Depth
- Frequency Response: +/- 0.6dB (20Hz – 20kHz)
- THD: <0.05% @ Unity Gain, 10dB Input @ 1kHz
- Channel Separation: Better than 90dB (40Hz-15kHz)
- Residual Output Noise: <90dBu Typical (20Hz-20kHz)
- Microphone Input: Better than -126dB Equivalent Noise
- Maximum Output Level: +22dBu
- Maximum Input Level: +22dBu
