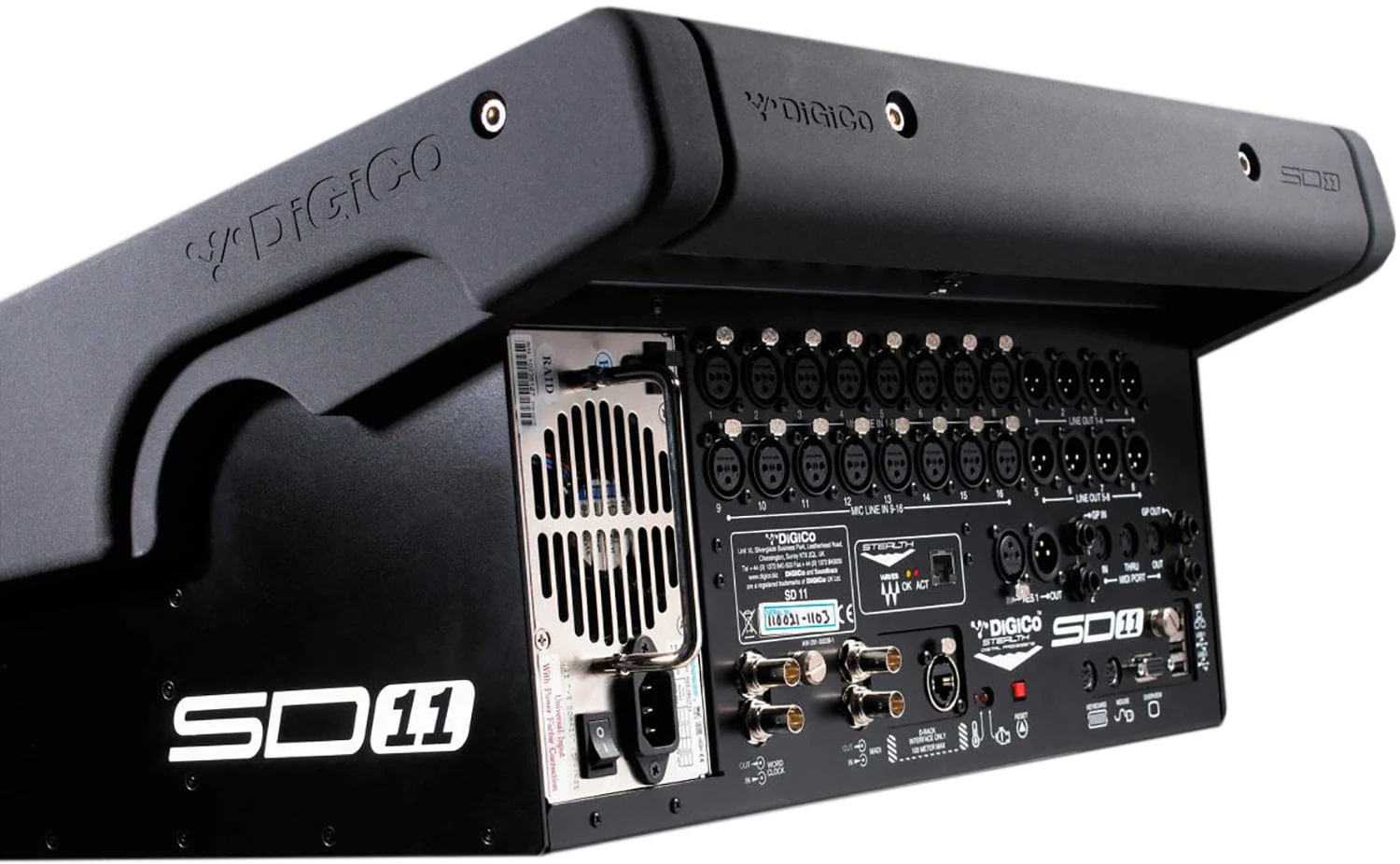

DiGiCo SD11i Digital Mixing Console

DiGiCo SD11i Digital Mixing Console

The DiGiCo SD11 Digital Mixing Console is a compact yet powerful solution tailored for professional audio applications, featuring robust MADI interface connectivity. Designed for versatility and exceptional audio performance, this console is ideal for space-constrained environments without compromising on functionality and control.

The SD11 is available with MADI Only, One Multi-Mode Optics HMA or One Multi-Mode Optics ST

The DiGiCo SD11 Digital Mixing Console is also available in the SD11B or SD11i versions.

Features:

• MADI interface: Dual MADI ports for robust multi-channel audio connectivity
• Compact design: Space-saving console suitable for various applications
• Touchscreen interface: Intuitive 10-inch multi-touch screen for comprehensive control
• Advanced processing: Mustard processing channel strips and Spice Rack plugin processing
• Snapshot automation: Seamless scene transitions with extensive automation features
• Remote control: Full compatibility with remote control via iPad and other devices
• User-friendly interface: Highly intuitive and customizable control environment

Specifications:

• Channels: Up to 40 input channels
• Buses: 16 busses + LR/LCR master bus
• Matrix: 12 x 8 matrix
• Local I/O:
  • 8 mic/line inputs
  • 8 line outputs
  • 4 AES/EBU I/O
• MADI ports: Dual MADI ports supporting up to 64 channels at 48kHz or 32 channels at 96kHz each
• DMI slots: 2 slots for DiGiCo Multichannel Interface cards
• FPGA technology: Powered by advanced FPGA processing
• Dynamic EQ: 4-band fully parametric dynamic EQ
• Multi-band compression: 3-band multi-band compression
• Power supply: Dual redundant power supplies
• Dimensions: Approximately 430mm x 330mm x 150mm (16.9" x 13" x 5.9")
• Weight: Approximately 8kg (17.6 lbs)
