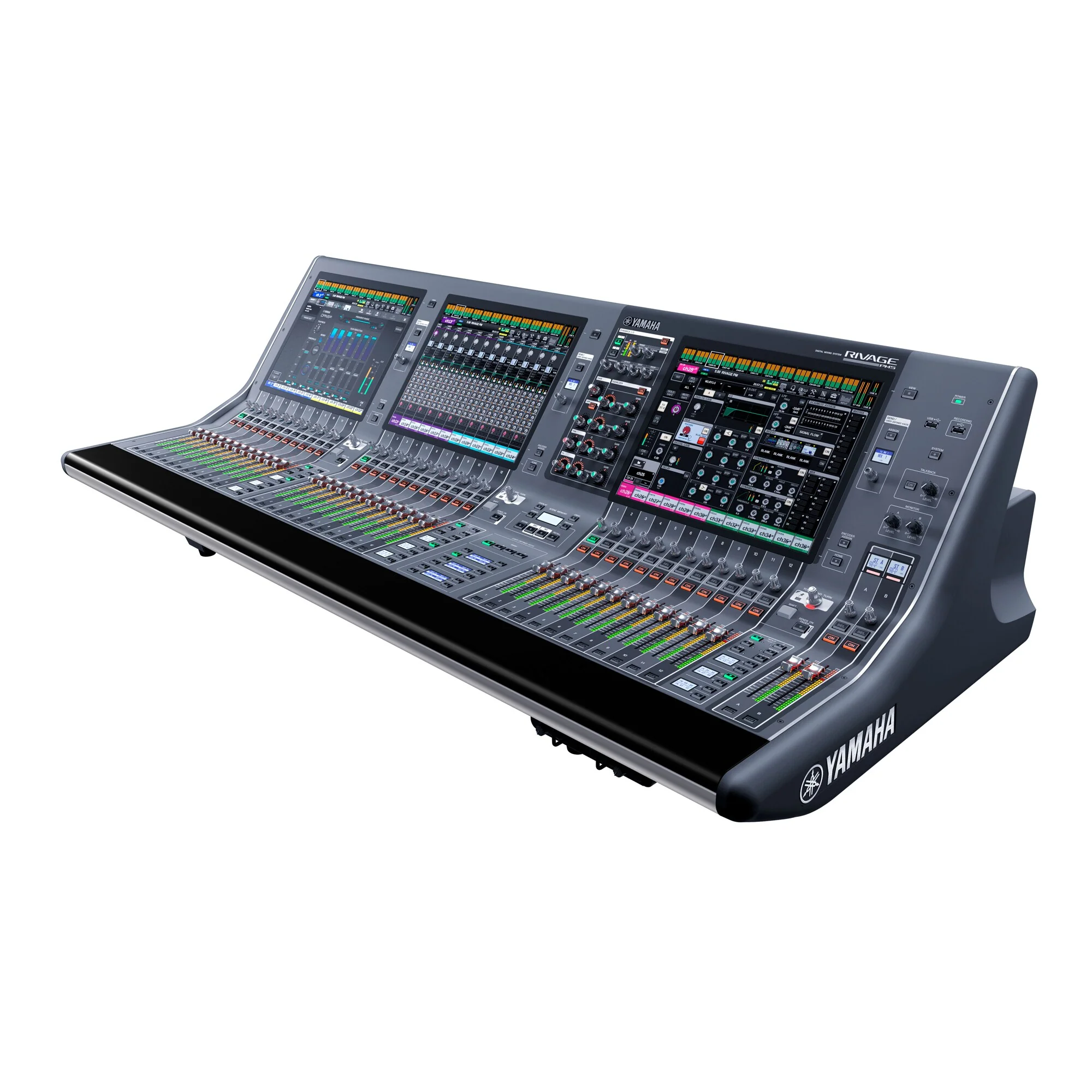

Yamaha CS-R5 Control Surface (RIVAGE PM5 System)

Yamaha CS-R5 Control Surface (RIVAGE PM5 System)

The CS-R5 Control Surface delivers mixing capabilities with full 96 kHz processing. Also, it includes three integrated touchscreens combined with 12 fader bays.

This control surface weighs just 42kg and offers closer positioned touch panels to smoothen operator and improve reach.

The CS-R5 Control Surface heads the RIVAGE PM5 system, to complete the system choose from one of these DSP Engines: DSP-RX-EX, DSP-RX, or DSP-R10.

Features:

• Display: 15" touch panel x 3
• Faders: 38 (12+12+12+2)
• Selected Channel section: Dynamics, GAIN, HPF, EQ, PAN, Function Knob
• Custom Fader banks: 6 x 5 on each bay
• User Defined keys: 12 x 4 banks
• Send/User Defined knobs: 3(4 x 4 banks can be assigned)
• Touch and Turn knobs: 3
• Analog I/O: 8 in / 8 out
• Slot: 2 MY slots
• AES/EBU: 4 in / 4 out (with SRC)
• Ports: GPI (8 in / 8 out), MIDI In/Out, 5 USB (1 for 2-track recording)
• Power supply: Dual redundant power supply built-in
• Power consumption: 300W
• Dimensions (WxHxD): 1,444 x 414 x 643mm (56.9" x 16.2" x 25.3")
• Net Weight: 42 kg (92.6 lbs)

Engines

• Yamaha DSP-RX-EX DSP Engine
• Yamaha DSP-RX DSP Engine
• Yamaha DSP-R10 Engine

Racks:

• Yamaha Rio1608-D3 I/O Rack
• Yamaha Rio3224-D3 I/O Rack
• Yamaha RPio222 I/O Rack
• Yamaha RPio622 I/O Rack
