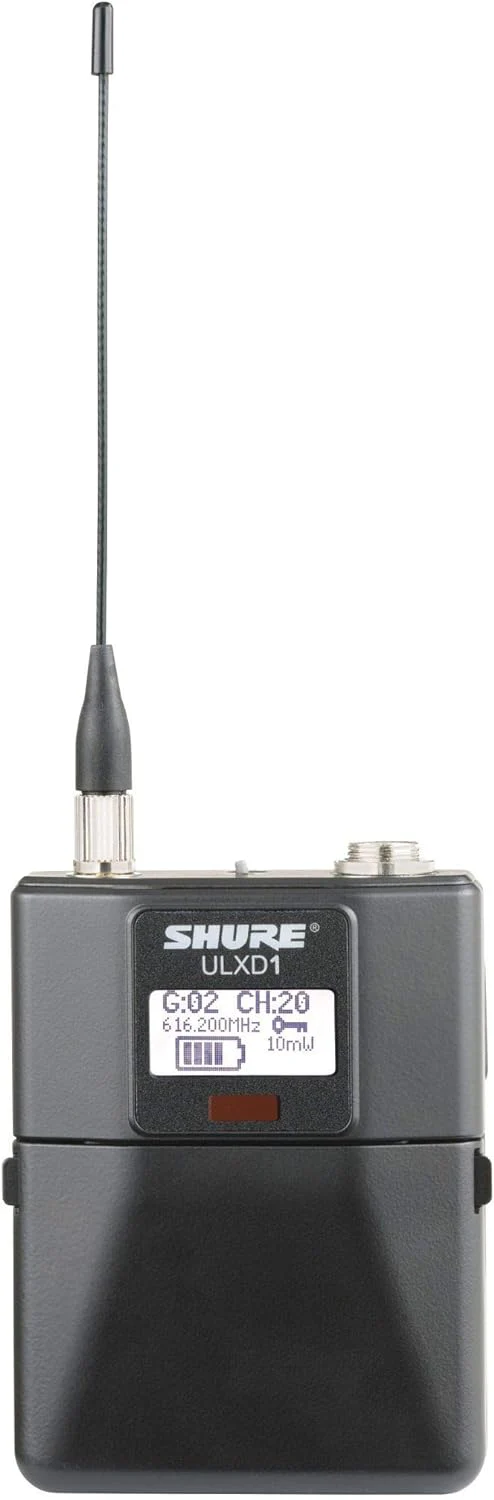

Shure ULXD1 Digital Bodypack Transmitter - V50 Band

Shure ULXD1 Digital Bodypack Transmitter - V50 Band

The Shure ULXD1 is a digital wireless bodypack transmitter compatible with ULX-D receivers. With rugged, yet lightweight aluminum housing, it delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

Features:

• For ULX-D Digital Systems
• Use with Lav/Headset Mic or Instrument
• TA4M Connector
• Automatic Gain Adjustment
• 1/10/20mW RF Output Power
• Detachable Antenna
• Mute Mode, Backlit LCD
• Secure AES-256 Encryption
• Networked Intelligent Charging
• 12-Hour SB900A Rechargeable Battery

Specifications:

• RF Frequency Band: V50 (174 to 216 MHz)
• RF Bandwidth: 42 MHz
• Frequency Step Size: 25 kHz
• RF Channel Scanning: Auto-Scan
• Max Operating Range: 328.1' / 100 m
• Sample Rate/Resolution: 48 kHz / 24-Bit
• Latency: < 2.9 ms
• Encryption: AES 256
• Modulation: Proprietary
• Transmitter:
  • Transmitter Type: Bodypack
  • RF Output Power: 1 / 10 / 20 mW
  • Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input
  • Muting: Off/On Switch
  • Audio Input Level: 20.5 dBV (Max, Pad On)
  • Gain Range: 0 to +21 dB (3 dB Steps)
  • Sync Method: IR
  • Antenna: 1 x 1/4 Wave External, Detachable (Beltpack)
  • Power Requirements: Battery
  • Battery Type: 2 x AA
  • Approx. Battery Life: 11 Hours (Alkaline)
  • Display & Indicators: 1 x Backlit LCD (Channel, Group, Mute, Power, RF Output Power)
  • Housing: Aluminum
  • Dimensions: 2.6 x 3.4 x 0.9" / 66 x 86 x 23 mm
  • Weight: 5 oz / 142 g (without Batteries)
• Packaging Info:
  • Package Weight: 0.9 lb
  • Box Dimensions (LxWxH): 12.8 x 4.9 x 3.4"
