Shure P9TRA+425CL-G7 PSM900 Personal Monitor System - Transmitter/Bodypack/Earphones - G7 Band

Shure P9TRA+425CL-G7 PSM900 Personal Monitor System - Transmitter/Bodypack/Earphones - G7 Band

Experience the empowerment of the PSM 900 Personal Monitor System, a top-tier audio solution tailored for live performances, setting a new industry benchmark with its superior audio quality and robust RF performance. With innovative features like CueMode for effortless monitoring of different audio mixes, performers gain unprecedented flexibility and control over their sound environment, ensuring optimal performances every time. Precision front-end RF filtering minimizes dropouts, guaranteeing stable and uninterrupted audio transmission, while the enhanced digital stereo encoder delivers exceptional stereo separation and clarity, elevating the sound experience for both artists and audiences. The comprehensive system includes a rackmountable wireless transmitter, rechargeable bodypack receiver, and sound-isolating earphones, along with essential accessories for a complete and hassle-free monitoring solution. Whether on stage or in a theater, the PSM 900 system promises reliability and unparalleled audio monitoring, transforming your performance with its unmatched clarity and precision.

Features:

• High-quality PSM 900 Personal Monitor System for professional live performances

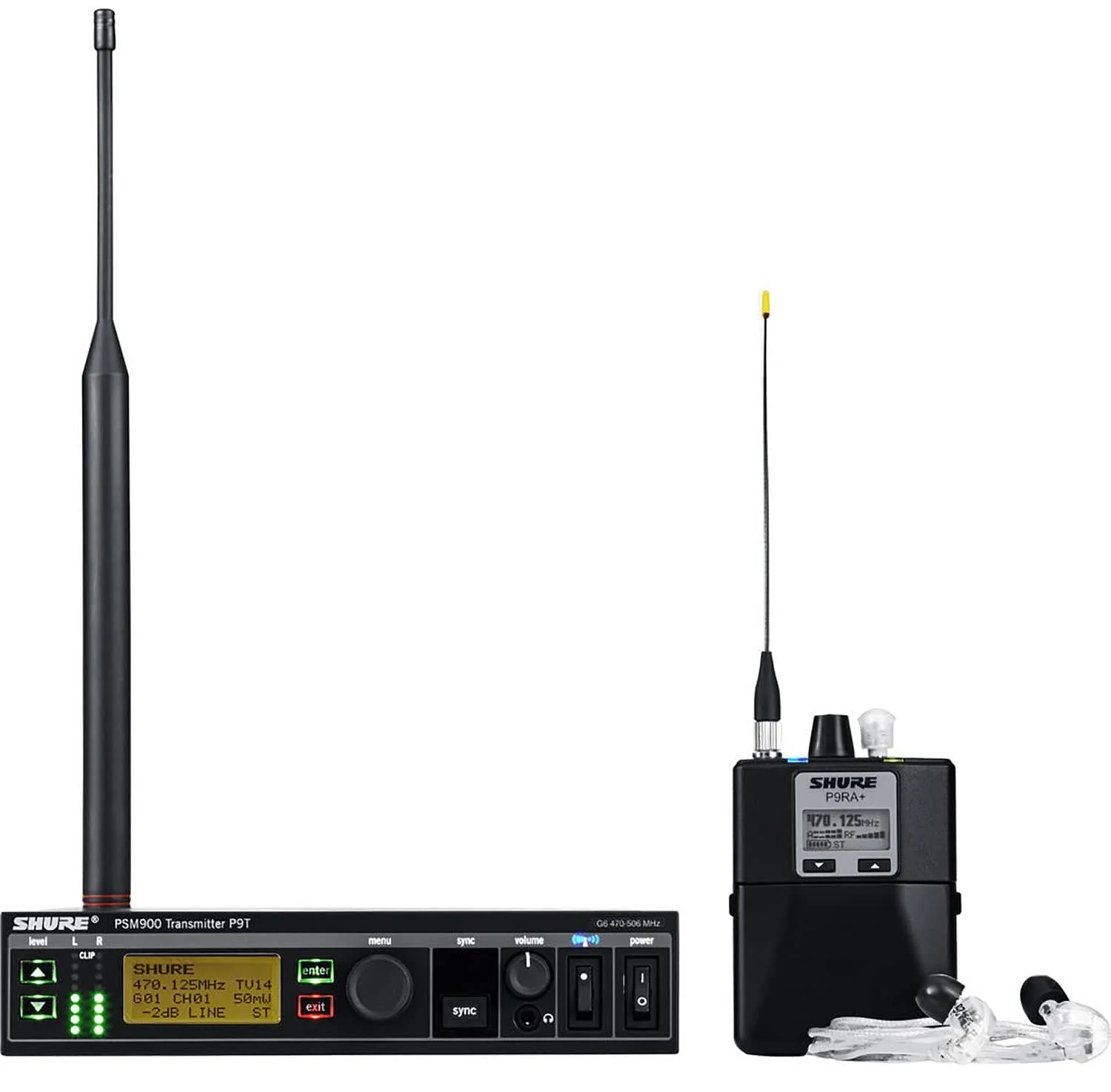

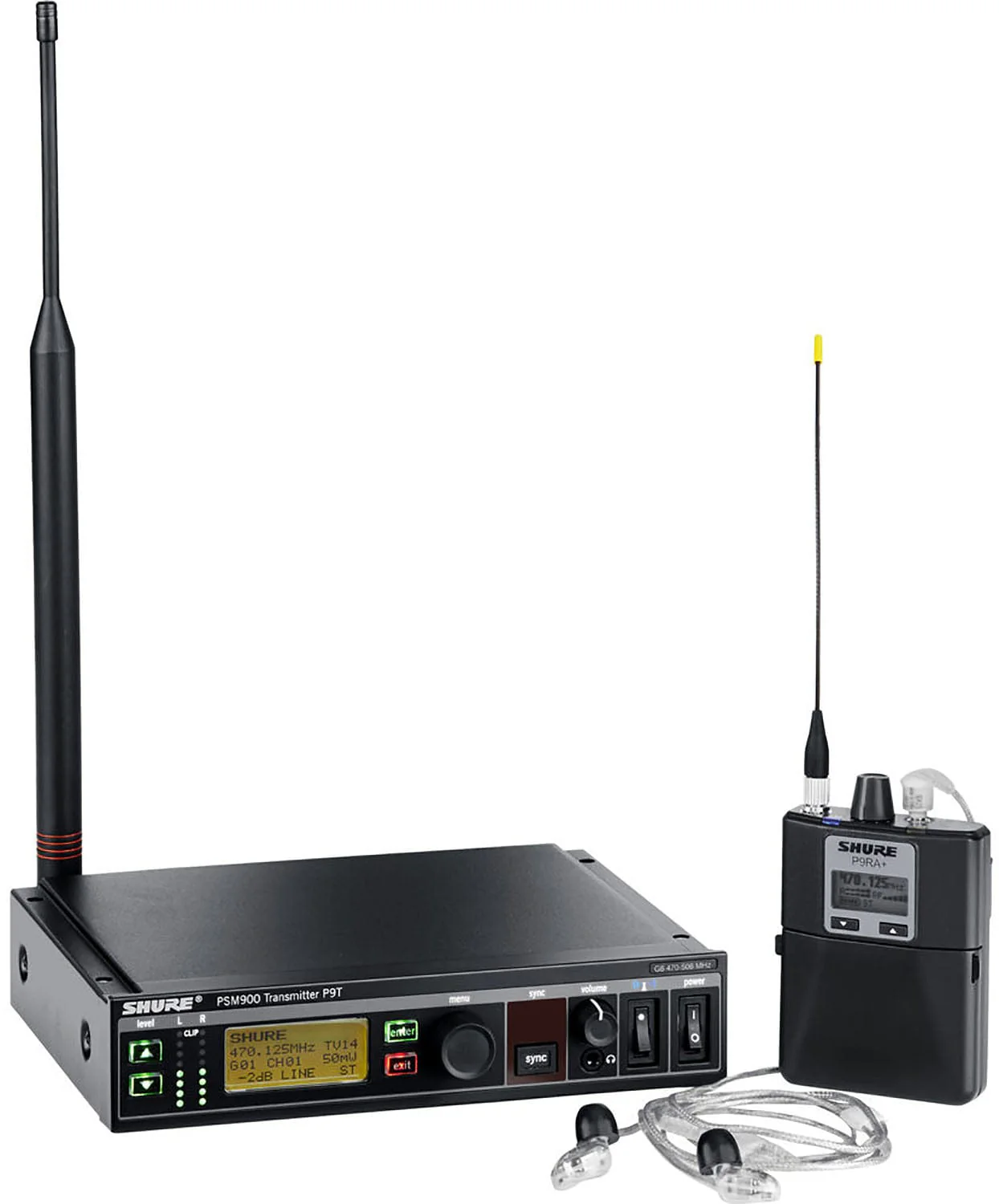

• Includes P9T rackmountable wireless transmitter and P9RA rechargeable bodypack receiver
• Features advanced CueMode for monitoring different audio mixes
• Precision front-end RF filtering for reduced dropouts and stable audio transmission
• Enhanced digital stereo encoder for superior stereo separation and audio clarity

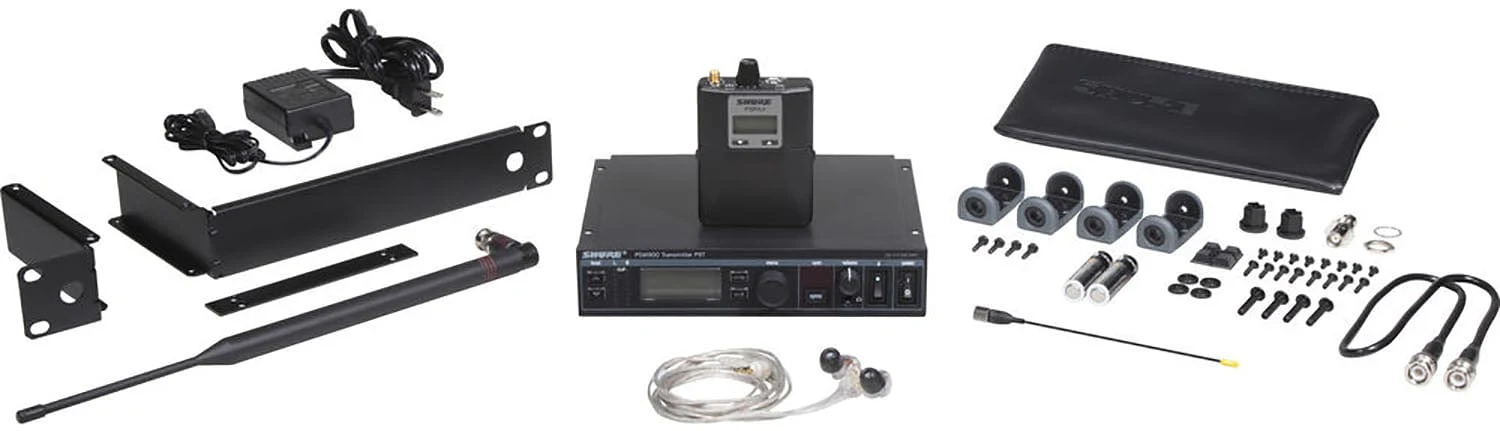

• Comes with SE425-CL Sound Isolating Earphones and comprehensive accessory kit

Specifications:

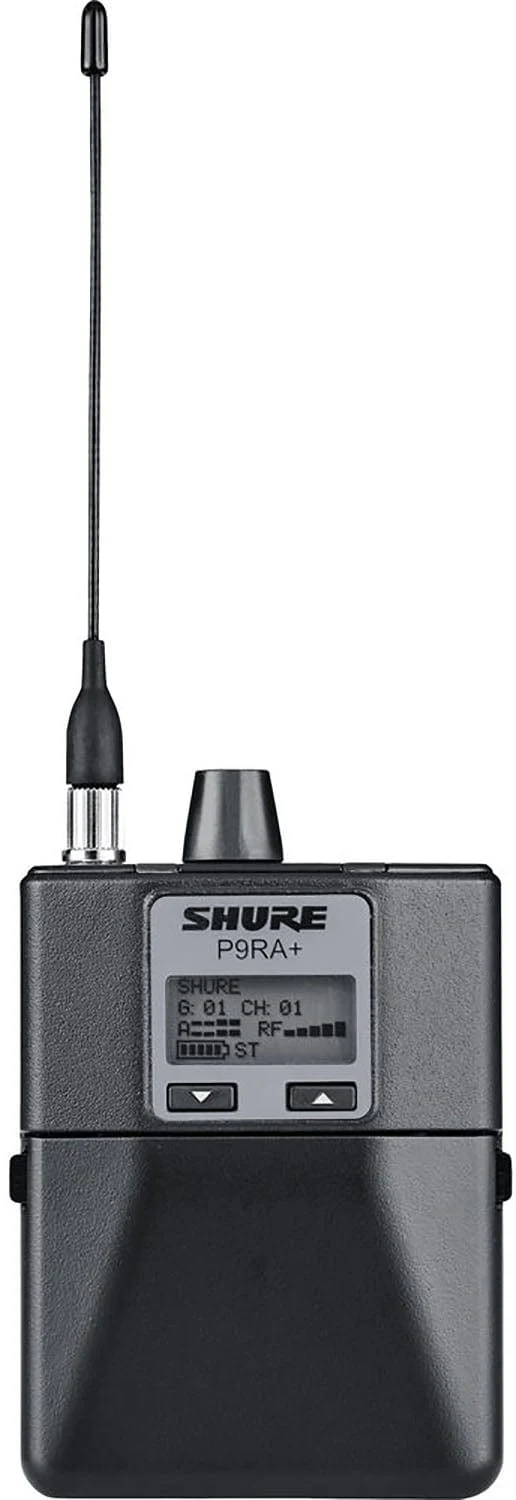

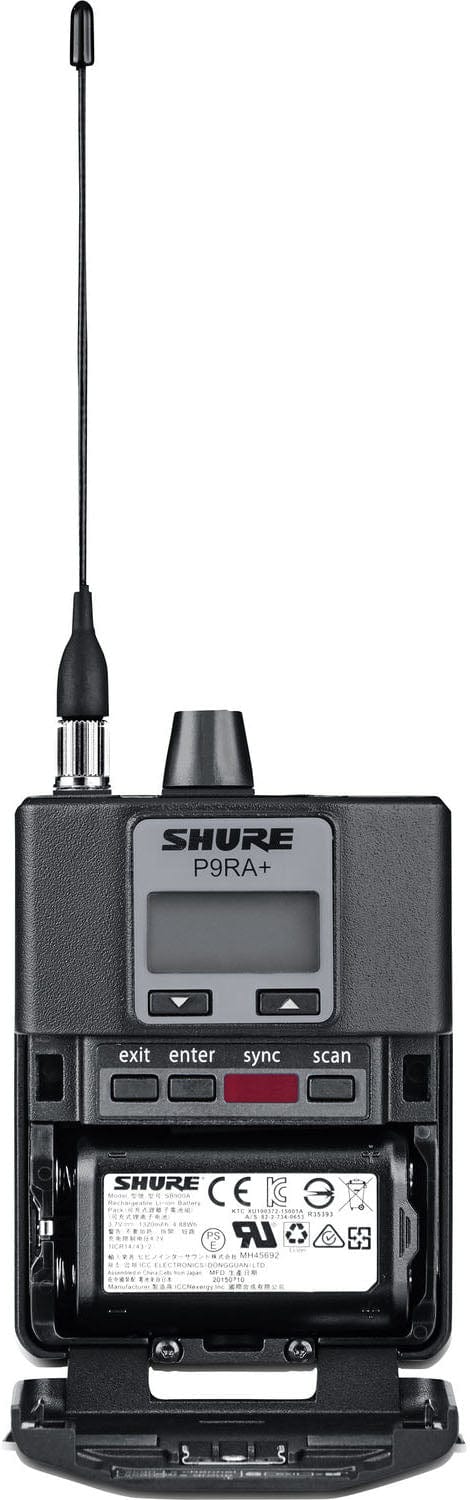

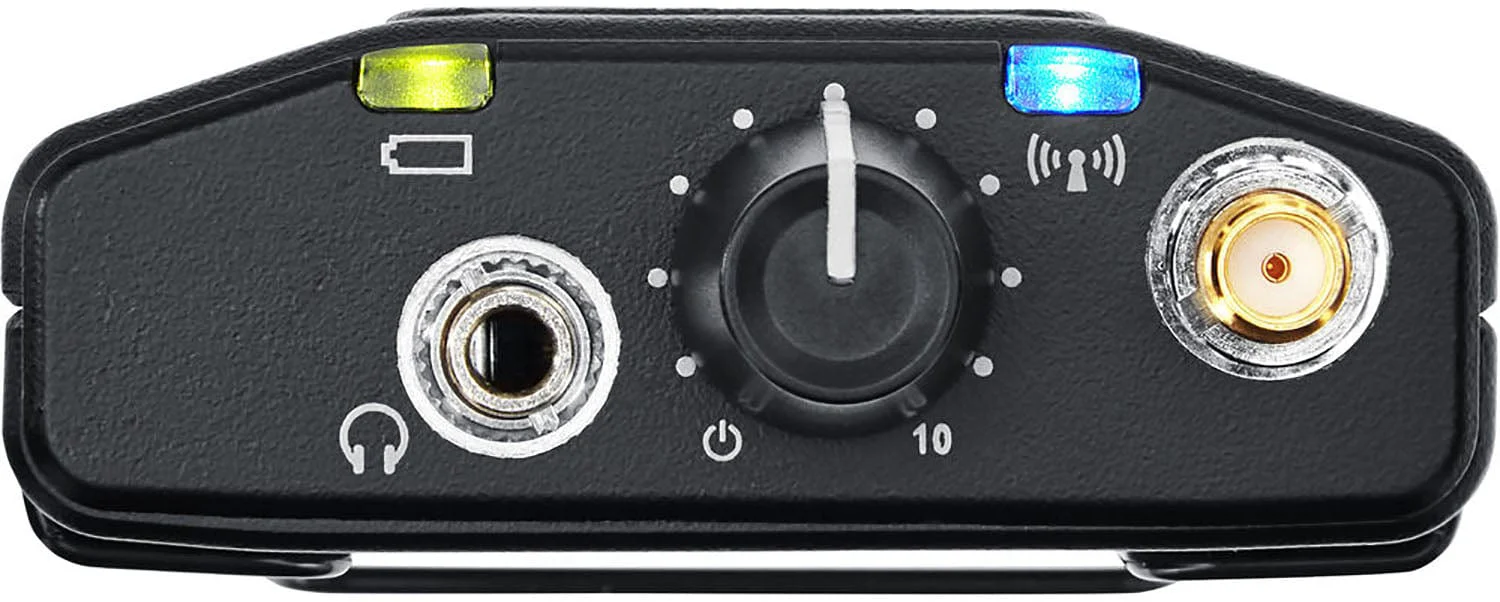

• Bodypack Receiver:
  • Available Frequency: G7: 506 to 542 MHz
  • RF Filter Range: -3 dB at 30.5 MHz from the Center Frequency of Each Band
  • RF Gain: Active: 31 dB (Adjusts RF Sensitivity to Provide more RF Dynamic Range)
  • RF Sensitivity: 2.2 micro V (20 dB SINAD)
  • Image Rejection: >90 dB
  • Adjacent Channel Rejection: >70 dB
  • Squelch Threshold: 22 dB SINAD ( +/-3 dB), Default Setting
  • Intermodulation Attenuation: >70 dB
  • Blocking: >80 dB
  • Audio Output Power: 100 mW Per Output (1 kHz at <1% Distortion, Peak Power, at 16 Ohms)
  • 4-Band Parametric Equalizer:
    • Low-Shelf Selectable Gain: +/-2, +/-4, +/-6 dB at 100 Hz
    • Low-Mid Selectable Gain: +/-2, +/-4, +/-6 dB at 160, 250, 400, 500, 630 Hz
    • Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
    • High-Mid Selectable Gain: +/-2, +/-4, +/-6 dB at 1, 1.6, 2.5, 4, 6.3 kHz
    • Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
    • High-Shelf Selectable Gain: +/-2, +/-4, +/-6 dB at 10 kHz
  • Volume Limiter: Selectable: 0 to -48 dB in 3 dB Steps
  • Volume Lock:
    • Selectable: 0 to -70 dB
    • Limits Volume Adjustment Knob
    • Selected Value Analogous to Volume Knob Increment
  • Audio Connector: 1/8" (3.5mm)
  • Battery Life: 4-6 Hours (Continuous Use) with 2x AA Batteries
  • Battery Info: Required, not included
  • Battery Material: Alkaline
  • Battery Type: AA
  • Battery Quantity: 2
  • Dimensions: 3.3 x 2.6 x 0.9" (8.3 x 6.5 x 2.2cm)
  • Weight: Without Batteries: 5.4 oz (154g)
• P9T Wireless Transmitter:
  • Output Power: 10/50/100 mW, Selectable (Regionally Dependent)
  • Output Impedance: 50 Ohms (RF, Typical)
  • Input Level: +4 dBu and -10 dBV, Switchable
  • Connectors:
    • 2x XLR-TRS Combo Inputs
    • 2x 1/4" Loop Outputs
    • 1x DC Power Input
    • 1x Antenna Connector
    • 1x 3.5mm Headphone Jack
  • Power Requirements: 415 mA, Typical (RF On, 100 mW Power Mode, No Audio)
  • Dimensions: 7.75 x 6.5 x 1.6" (19.7 x 16.6 x 4.2cm)
  • Weight: 1.9 lbs (850g)

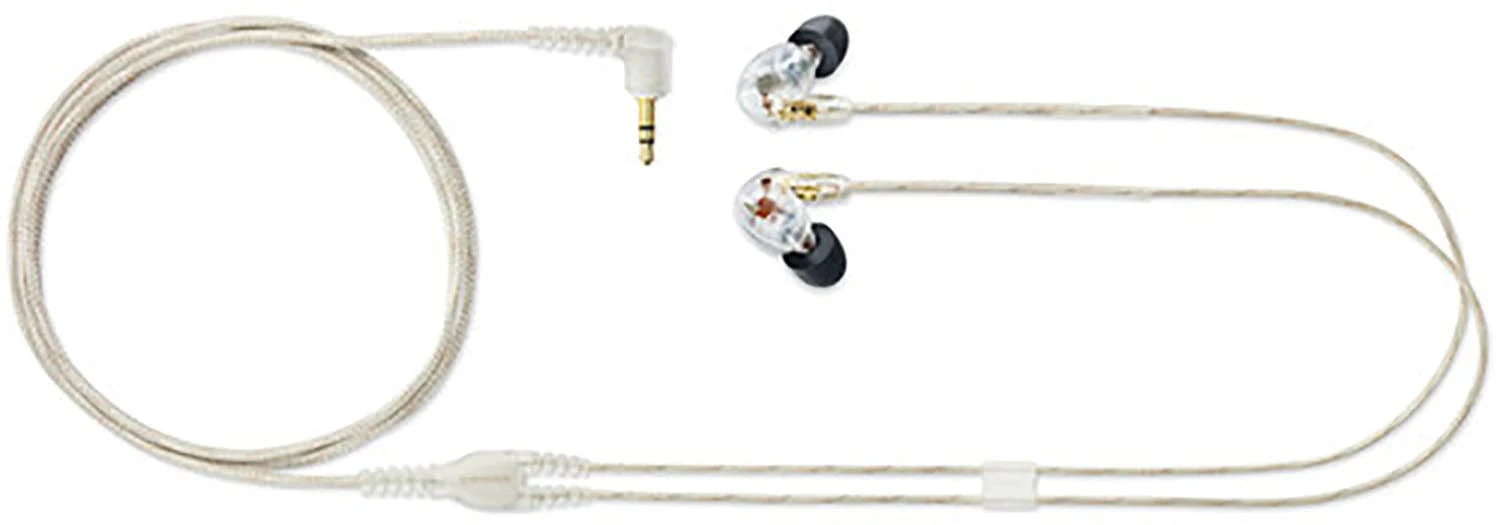

• SE425 Earphones:
  • Design: In-Ear (Intra-Aural)
  • Frequency Response: 20 Hz to 19 kHz
  • Sensitivity: 109 dB
  • Impedance: 22 Ohms
  • Audio Connector: 1/8" (3.5mm) TRS
  • Connector Plating: Gold
  • Adapter (Included): 1/4"
  • Detachable: Yes
  • Cable Length: 5.3' (1.6m)
