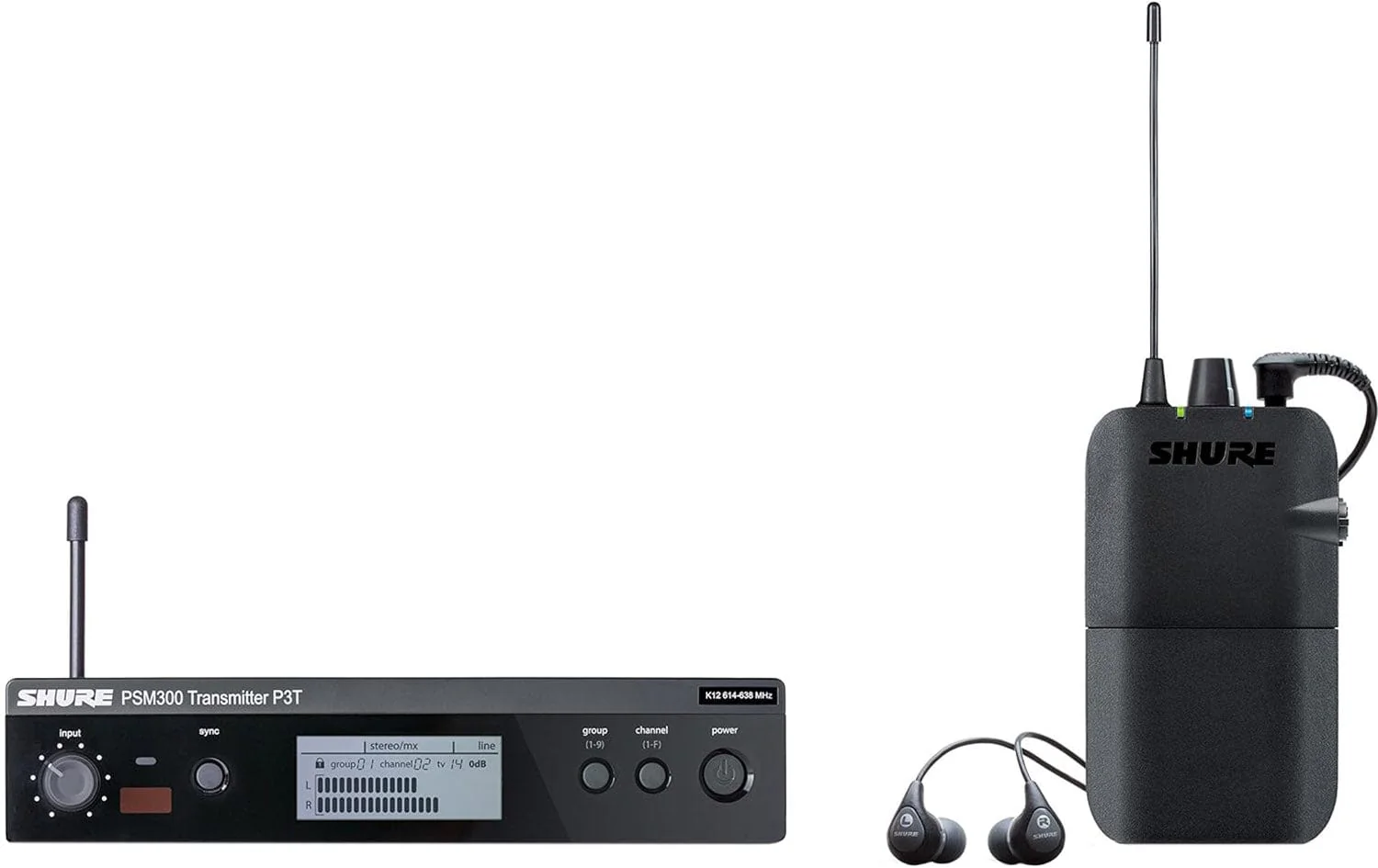

Shure P3TR112GR-J13 PSM300 Wireless System with SE112-GR Earphones - G20 Band

Shure P3TR112GR-J13 PSM300 Wireless System with SE112-GR Earphones - G20 Band

Part of the PSM 300 wireless Stereo Personal Monitor systems family, the P3TR112GR brings wireless freedom to the stage. PSM 300 Systems ensure reliable performance throughout, with patented Audio Reference Companding delivering crystal-clear sound, minimal noise, and no distortions.

Setting up and operating PSM 300 systems is effortless, thanks to features like one-touch frequency scan and sync, enabling the quick and clean assignment of wireless channels. Users can easily adjust volume and utilize MixMode technology or stereo mode to craft a personalized mix from two audio channels.

Experience the liberation of wireless performance without the constraints of cables and wedges. With detailed, 24-bit digital audio, every note is vividly rendered, allowing performers to hear clearly from any position on any stage.

Features:

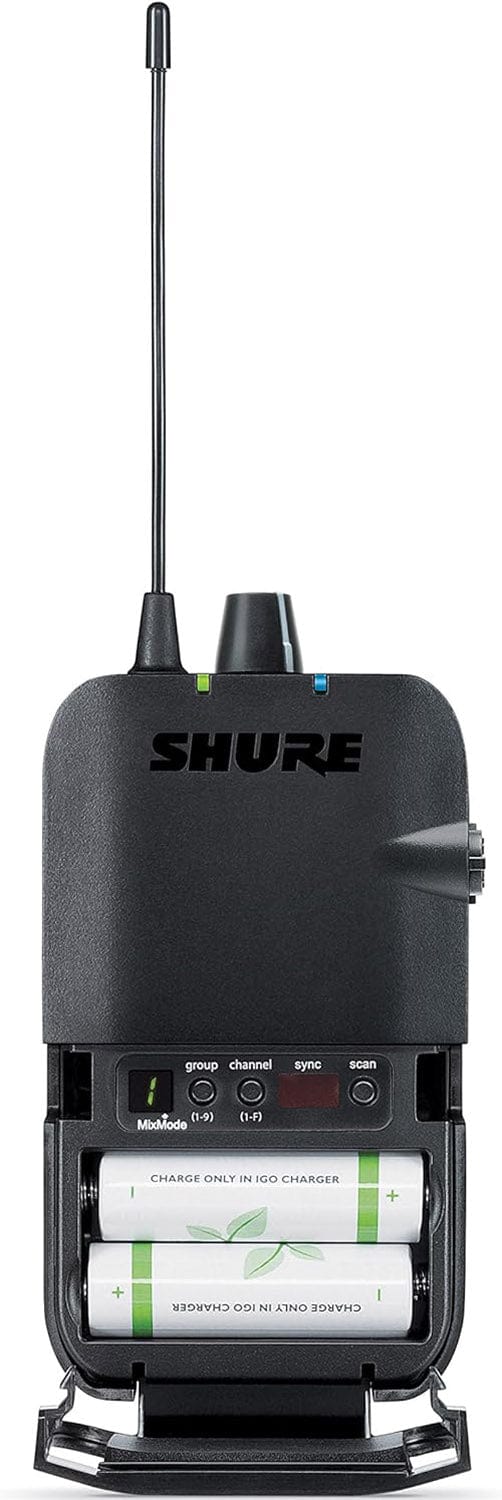

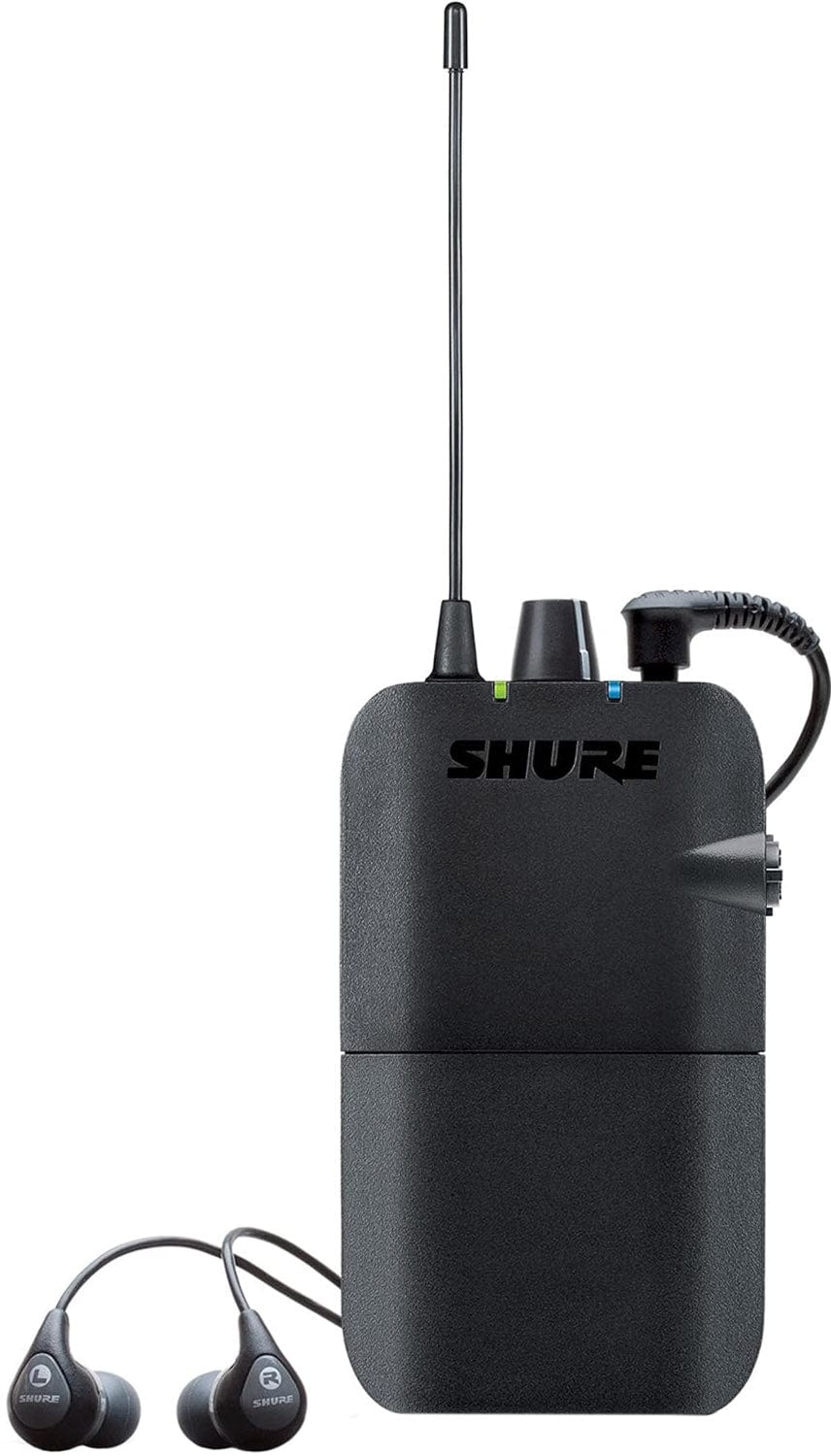

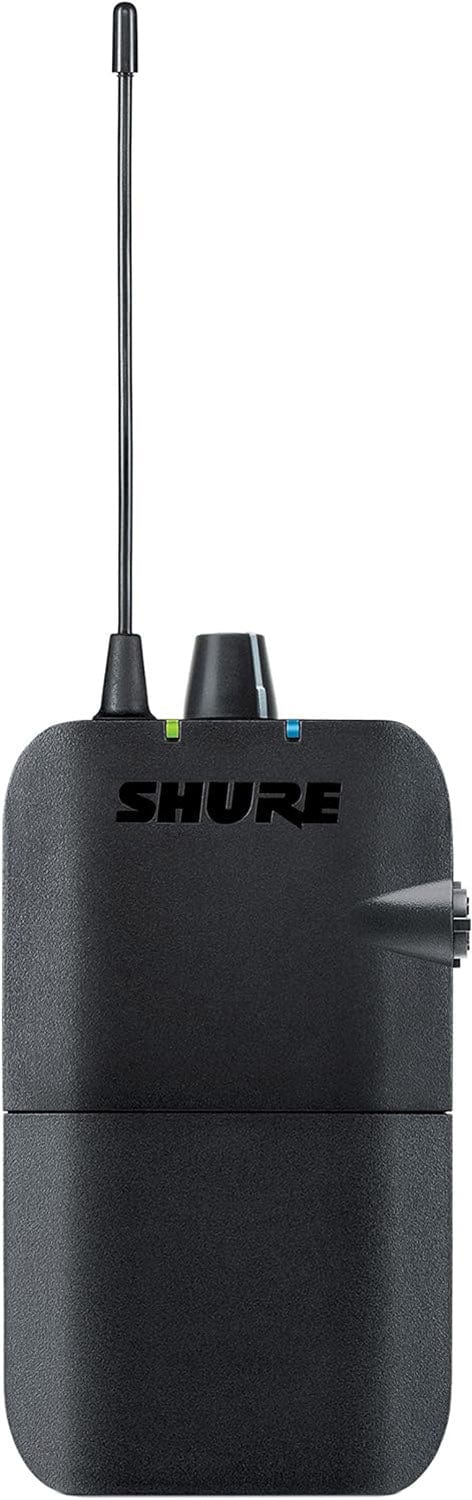

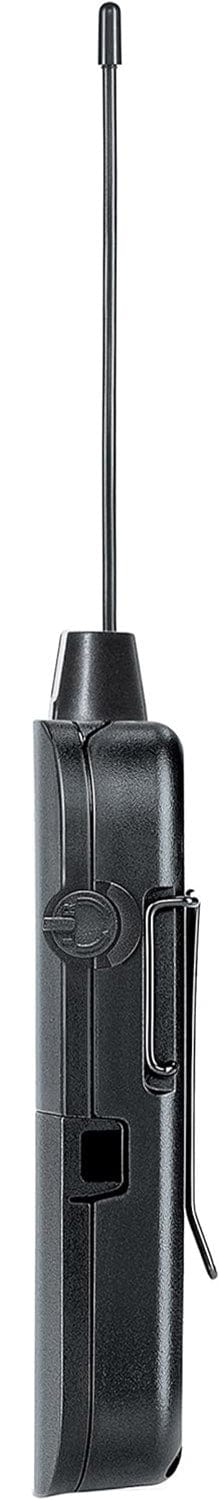

• P3R Wireless Bodypack Receiver:
  • Use MixMode or stereo mode to create a personal 2 channel mix
  • Easy-to-adjust volume and mix controls
  • Scan function quickly finds an open frequency
  • Over 90 dB of dynamic range for precise, low-noise audio
  • Up to 6 hours continuous use from 2 AA batteries
  • Slim, lightweight bodypack attaches easily to a belt or guitar strap

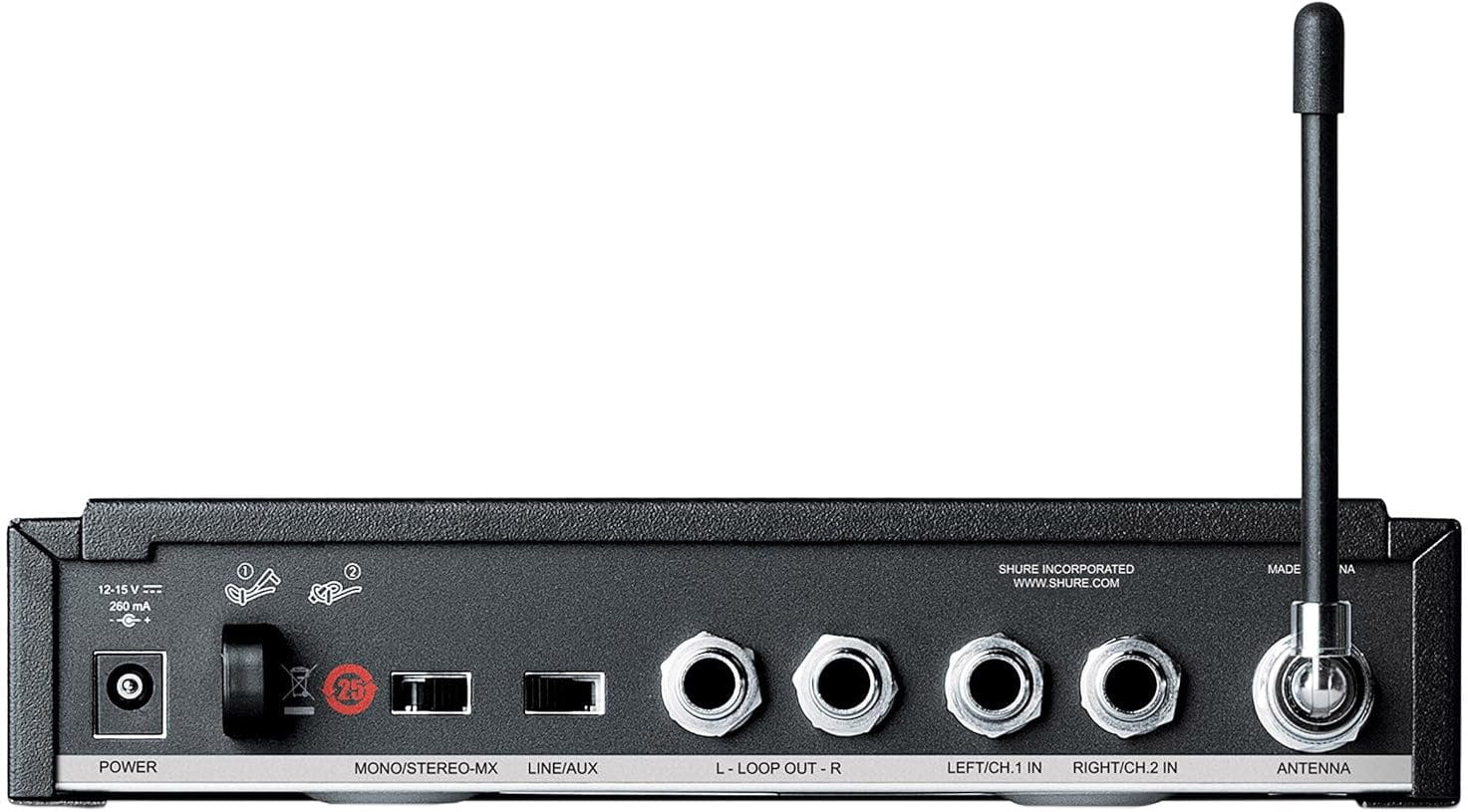

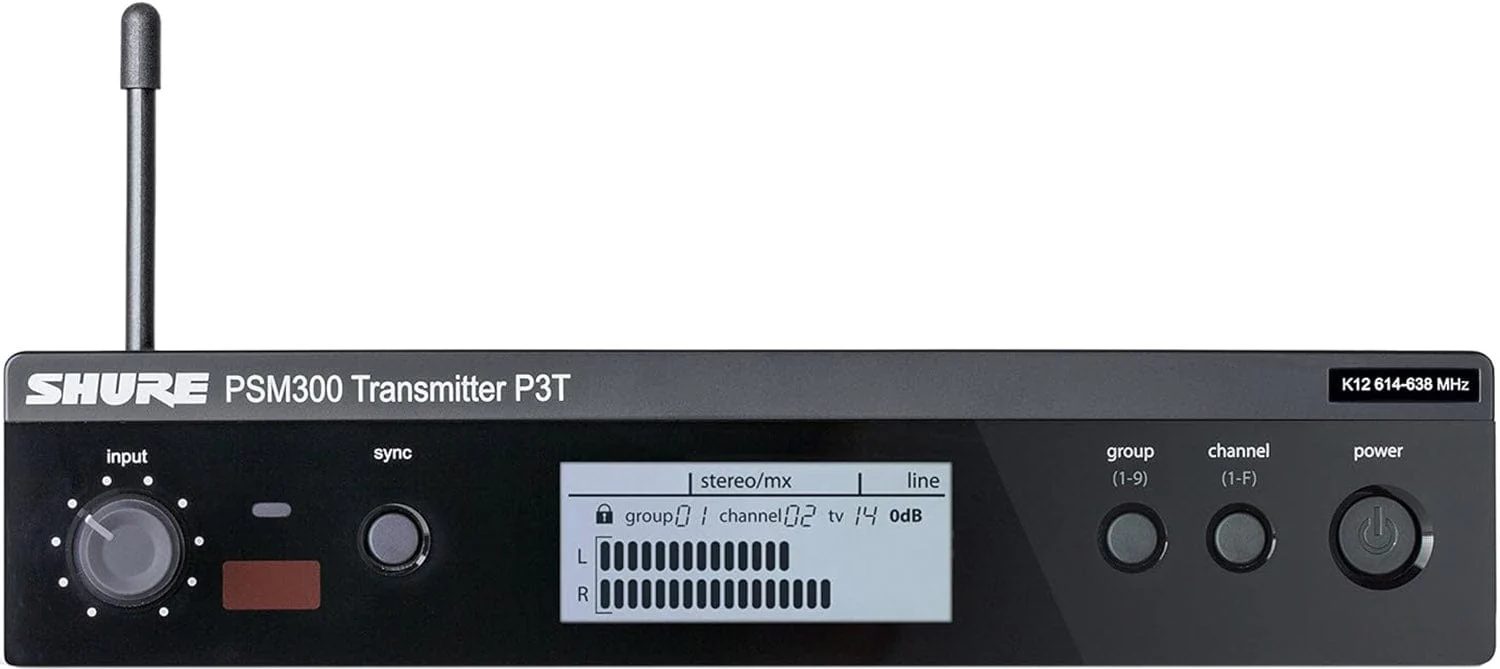

• P3T Wireless Transmitter:
  • Sends a stereo or mono mix wirelessly to performers onstage
  • Detailed, 24-bit digital audio
  • Rock-solid analog wireless connection over a 300 foot (90 meter) range
  • One-touch IR sync instantly links transmitter to bodypack receiver
  • High-contrast LCD screen with audio metering
  • Selectable line/aux level
  • 1/4" (6.3 mm) TRS balanced inputs and loop outputs
  • Detachable 1/4 wave antenna
  • Rack hardware kit included

Specifications:

• PSM 300 System:
  • Frequency Range: 488–512 MHz
  • Compatible Frequencies Per Band: up to 15
  • Tuning Bandwidth: 24 MHz maximum (Note: varies by region)
  • Operating Range: 90 m (300 ft)
  • Audio Frequency Response: 38 Hz-15 kHz
  • Signal-to-Noise Ratio: 90 dB (typical)
  • Total Harmonic Distortion: <0.5% (typical)
  • Companding: Patented Shure Audio Reference Companding
  • Spurious Rejection: >80 dB (typical)
  • Frequency Stability: +/-2.5 ppm
  • MPX Pilot Tone: 19 kHz (±1 Hz)
  • Modulation: FM*, MPX Stereo (ref. ±34 kHz deviation @ 1 kHz)
  • Operating Temperature: -18 °C (0 °F) to +63 °C (145 °F)
• P3R Wireless Bodypack Receiver:
  • Active RF Sensitivity (at 20 dB SINAD): 2.2 µV
  • Image Rejection: >90 dB
  • Adjacent Channel Rejection: >60 dB
  • Intermodulation Attenuation: >50 dB
  • Blocking: >60 dB
  • Audio Output Power 1 kHz @ ,1% distortion, Peak power, @32Ω: 80mW (per output)
  • Minimum Load Impedance: 16 Ω
  • Headphone output: 3.5 mm (1.8") stereo
  • Net Weight: 98 g (3.5 oz.) (without batteries)
  • Dimensions (H + W + D): 110 + 64 + 21 mm (4.3 x 2.5 x 0.8 in.)
  • Battery Life: 5-7 hours (continuous use) AA batteries
• P3T Transmitter:
  • RF Output Power: 10, 20, 30 mW Note: varies by region
  • RF Output Impedance: 50 Ω (typical)
  • Net Weight: 783 g (27.6oz.)
  • Dimensions (H + W + D): 43 + 198 + 172 mm (1.7 + 7.8 + 6.8 in.)
  • Power Requirements: 12-15 V DC, 260 mA maximum
