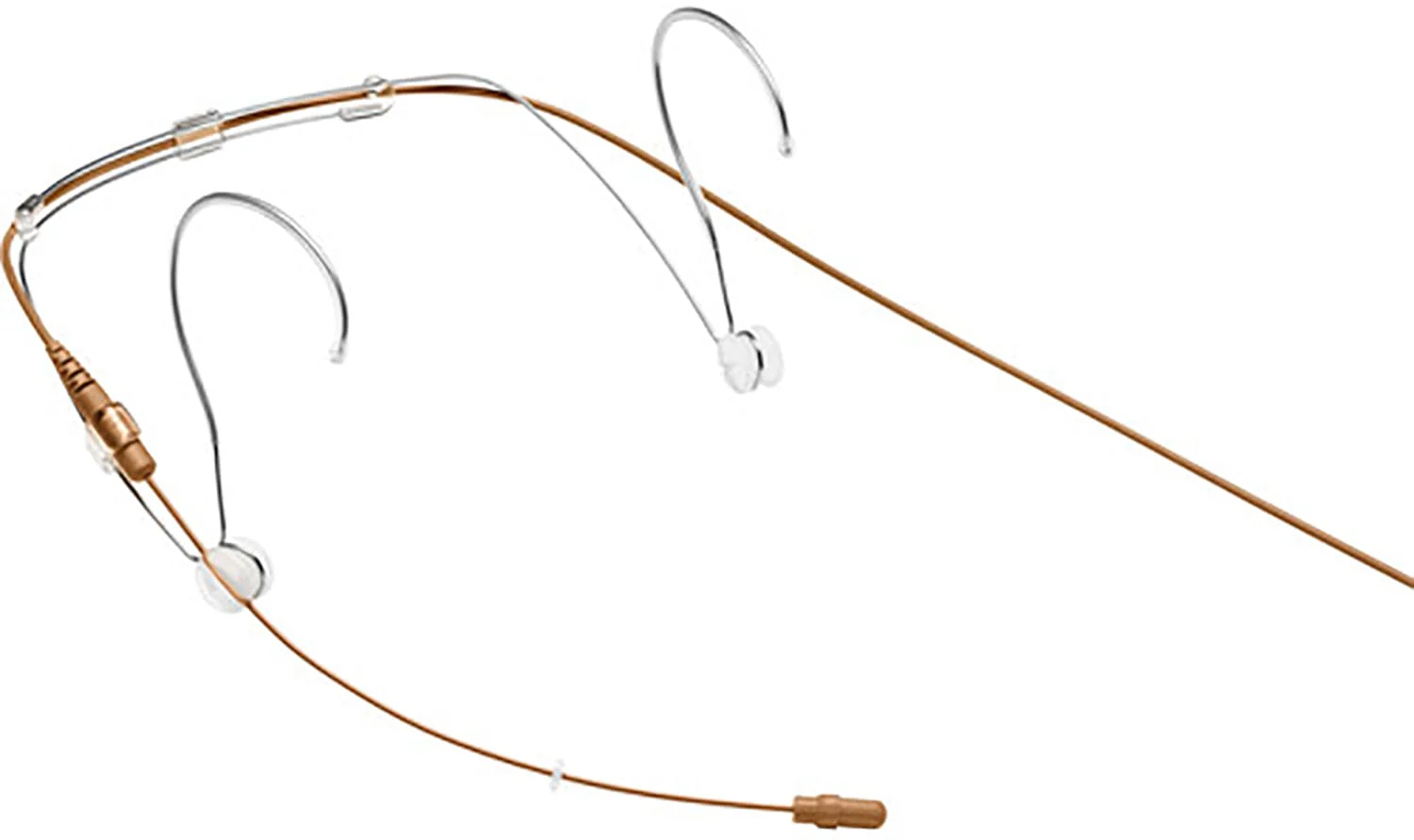

Shure DH5C/O-MTQG DuraPlex Omnidirectional Subminiature Headset Microphone - MTQG Plug - Cocoa
Lightweight and comfortable to wear, the DuraPlex DH5 wireless headset microphone offers a neutral, full sound that will lift your performance, speech, musical, or broadcast. Rely on the DH5 wireless headset microphone in the harshest environments, thanks to its long-lasting Shure Plex cable and a certified IP57 rating, which means you’re protected against water, sweat, moisture, dust, and dirt. Capture every moment with confidence.
Features:
- 5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
- IP57 dust-resistant, waterproof rated
- Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
- Advanced 1.6 mm Shure Plex cable:
- Dual redundant ground in cable serves as secondary shield for unprecedented longevity
- Immune to memory effect and kinks
- Fully paintable with typical theater paints, pens, and polishes
- Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
- Available in three colors: Cocoa
- Available in two connector types: TA4F (mTQG)
- Kit includes the following accessories: Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, Sticky Mount, TQG Locking Collar (mTQG/TA4F SKUs only)
Specifications:
- Microphone Capsule: MEMS
- Polar Pattern: Omnidirectional
- Frequency Response: 20 Hz to 20 kHz
- Sensitivity: –42.5 dBV (7.5 mVRMS) @ 1 kHz
- Self-Noise: 31 dB SPL-A A-weighted, Equivalent Acoustical
- Signal-to-Noise Ratio: 63 dB
- Maximum SPL: 132.0 dB SPL 1 kHz @ 1% THD, typical
- Dynamic Range: 101.0 dB Typical
- Microphone Current Draw: 220 µA, maximum
- Bias Voltage Recommended Operating Voltage: 5 VDC
- Housing: Molded ABS
- Polarity: Positive pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
- Cable Diameter: 1.6 mm
- Cable Length: 66.0 in (1.67 m)
- Net Weight: 15.0 g (0.53 oz)
- Capsule Dimensions (L × D): 14.5 mm × 5.2 mm
