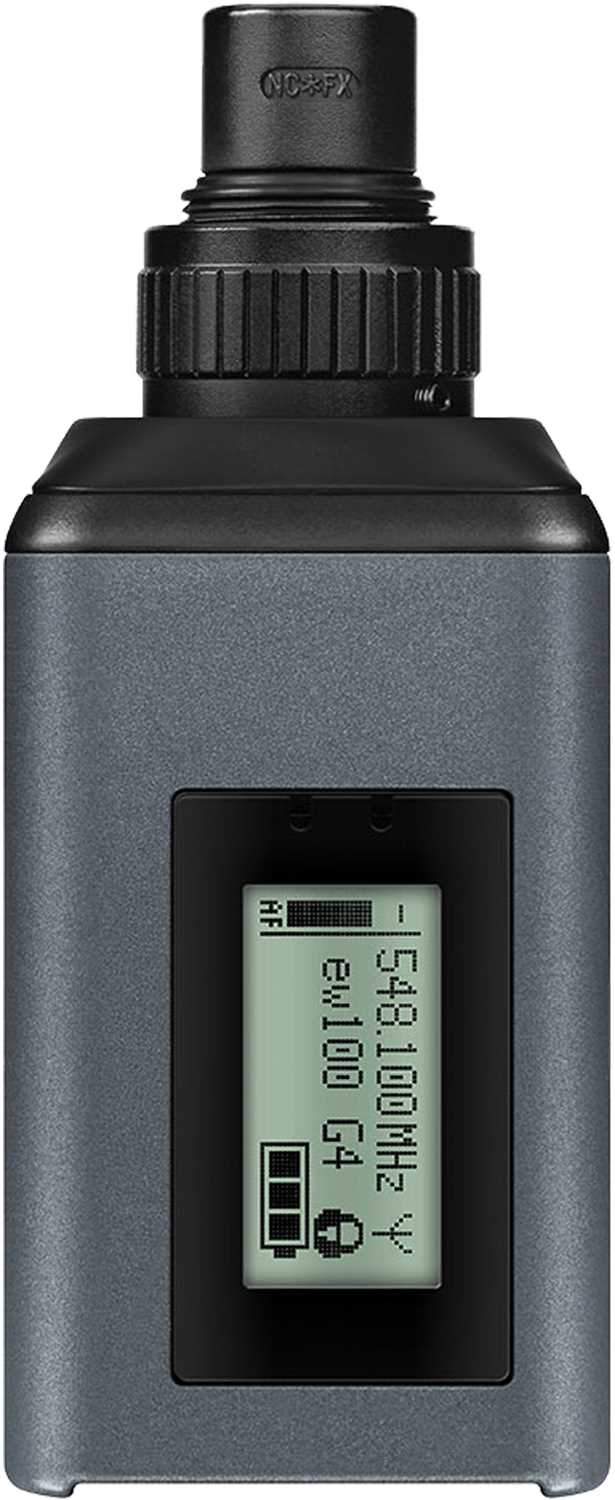

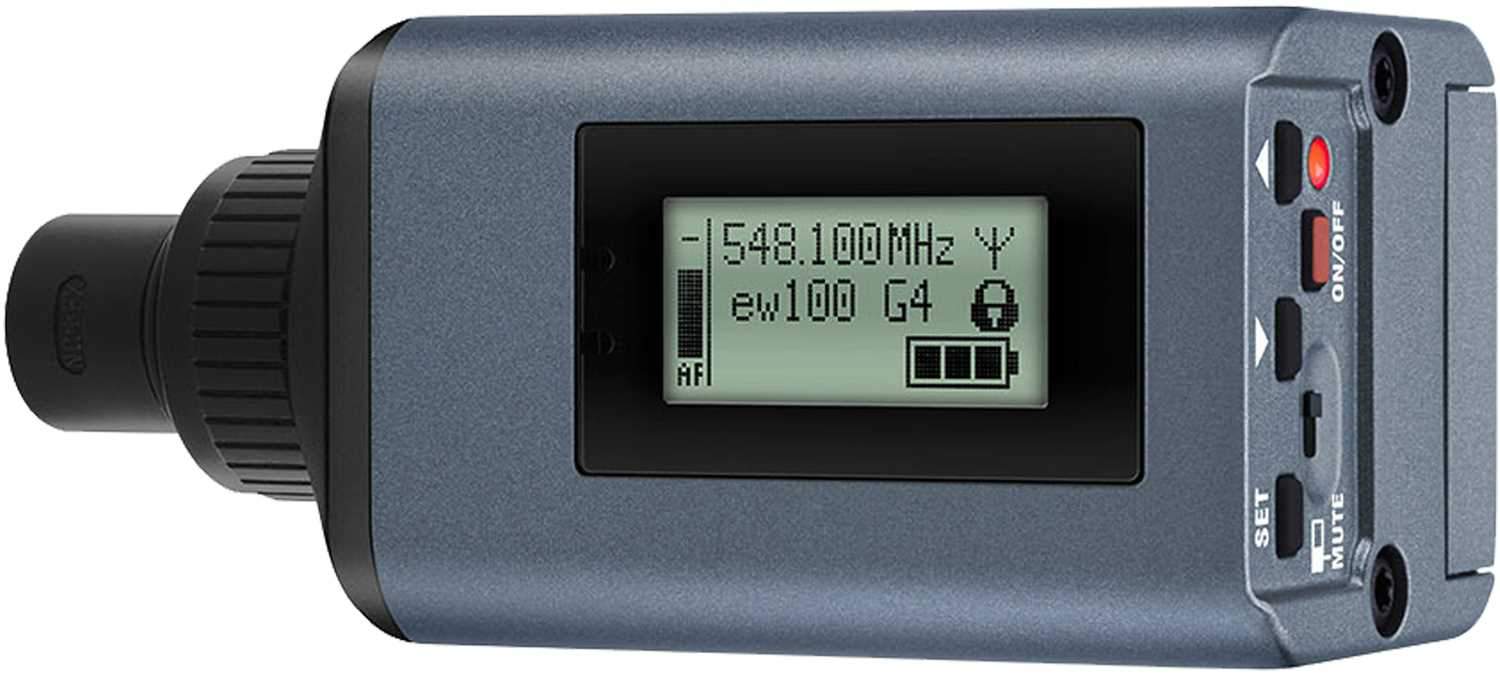

Sennheiser SKP 100 G4 Plug-on Wireless Mic Transmitter G

Sennheiser SKP 100 G4 Plug-on Mic Transmitter G

Powerful camera receiver, easily mounted on any kind of microphone

Powerful plug-on transmitter that turns every wired dynamic microphone into a wireless transmitter for evolution wireless G4 100P Series systems. For documentary, Mobile Journalism and audio for video applications.

What's in the box

• SKP 100 G4 plug-on transmitter
• 2 AA batteries
• quick guide
• safety guide
• manufacturer declaration sheet

Features:

• Powerful camera receiver, easily mounted on any kind of microphone
• Excellent sound and construction quality
• Easy to use and fast setup time
• Powerful and reliable wireless transmission
• Range: up to 100 meters / 330 feet
• Up to 8 hours of operation time

Specifications:

• Frequency range: G: 566 - 608 MHz
• Dimensions: Approx. 105 x 43 x 43 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: ? 0.9 %
• Weight: approx. 195 g
• Signal-to-noise ratio: ? 110 dBA
• RF output power: Max. 30 mW
• Switching bandwidth: up to 42 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ? 25 ?A
• Input impedance: 68 k?, unbalanced
• Max. Input voltage: 3.3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• AF frequency response: 80 – 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency stability: ? ±15 ppm
