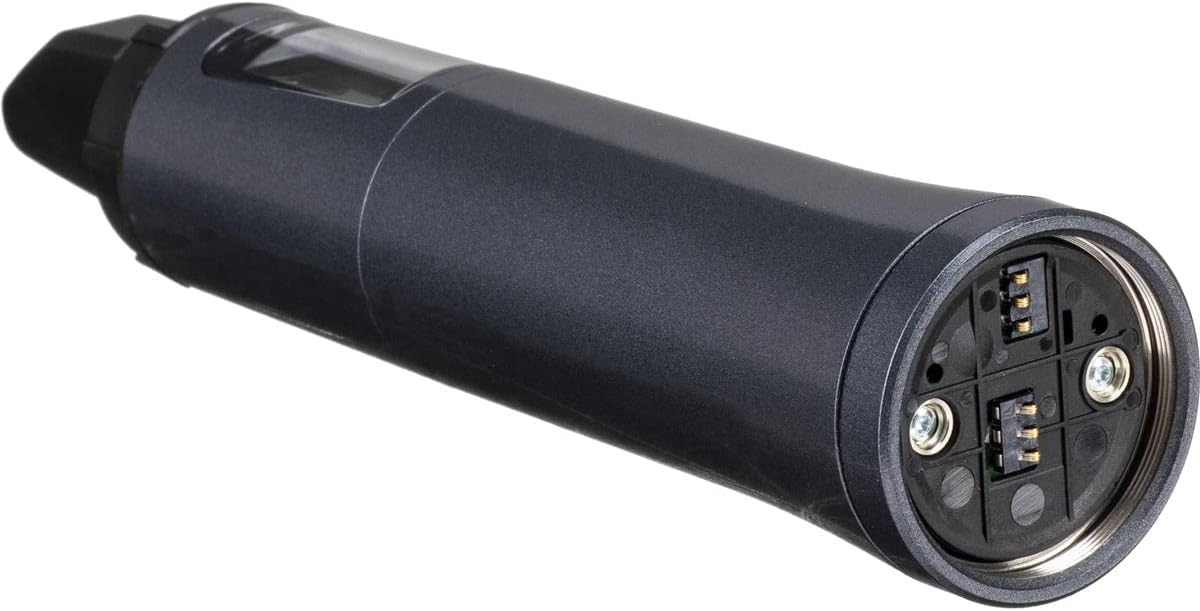

Sennheiser SKM 100 G4 Evolution Wireless Handheld Transmitter A1

Sennheiser SKM 100 G4 Handheld Transmitter A1

Powerful handheld transmitter with a lightweight aluminum housing for evolution wireless G4 100 Series systems.

What's in the box

• SKM 100 G4 handheld transmitter
• MZQ 1 microphone clamp
• 2 AA batteries
• quick guide
• safety guide
• manufacturer declaration sheet

Features:

• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

Specifications

• Frequency range: A1: 470 - 516 MHz
• Dimensions: Approx. Ø 50 x 265 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: ? 0.9 %
• Weight: (incl. batteries) approx. 450 g
• Signal-to-noise ratio: ? 110 dBA
• RF output power: Max. 30 mW
• Switching bandwidth: up to 42 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ? 25 ?A
• Input impedance: 40 k?
• Max. Input voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• AF frequency response: 80 – 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency stability: ? ±15 ppm
