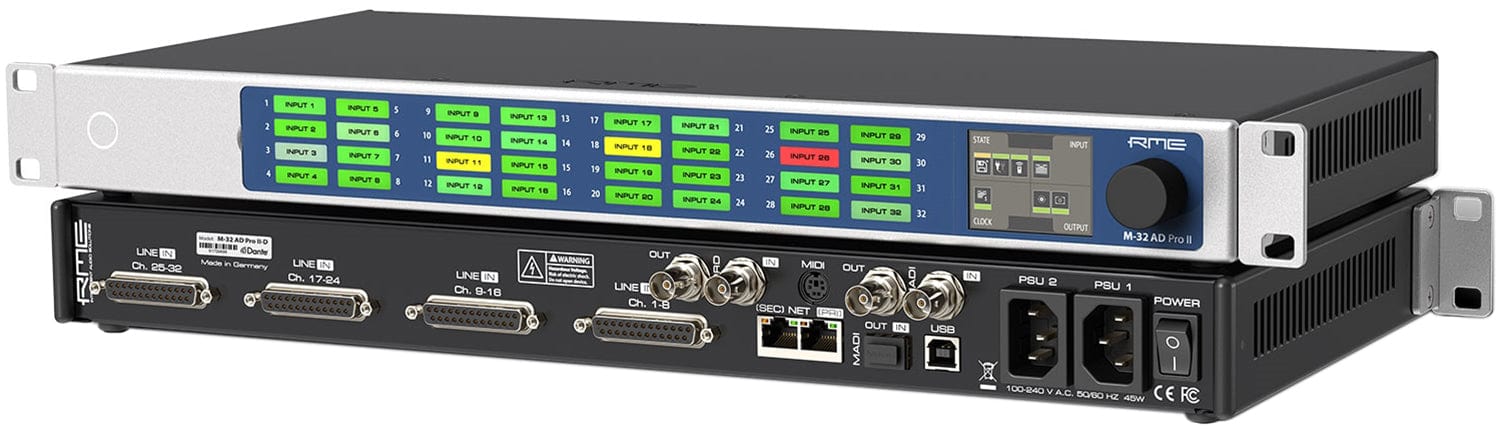

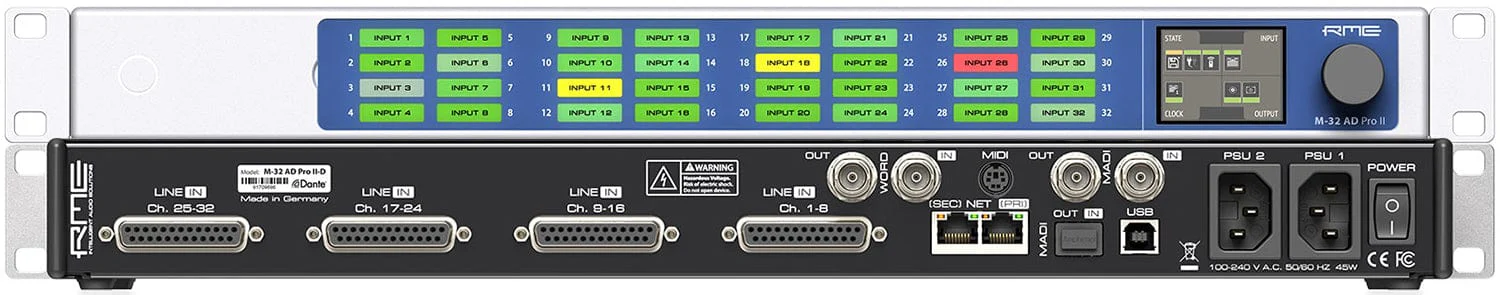

RME M32-AD-PRO-II-D 32-Channel High-End 192 kiloHertz AD Converter with Dante and MADI
The RME M-32 AD Pro II-D Dante + MADI 32-Channel A/D Converter is meticulously crafted to fulfill the rigorous needs of professional studios, immersive sound installations, live sound systems, and industrial applications. It offers a dependable solution for reference-grade A/D conversion, coupled with advanced Dante and MADI network audio processing capabilities.
Features:
- 32-channel reference-quality A/D converter, fully symmetrical design
- 32 analog inputs (25-pin D-sub, up to +24 dBu)
- 2 MADI I/O (via separately available optical SFP and coaxial BNC, up to 128 channels)
- 2 RJ45 ports for Dante network connectivity (up to 64 channels)
- MIDI I/O for legacy MIDI remote
- Wordclock I/O (BNC)
- USB 2.0 for remote control
- SyncCheck and ICC detect when a clock source is not in sync and fall back to other available signals
- MADI Auto-Input provides seamless redundancy
- Integrated matrix for single-channel routing

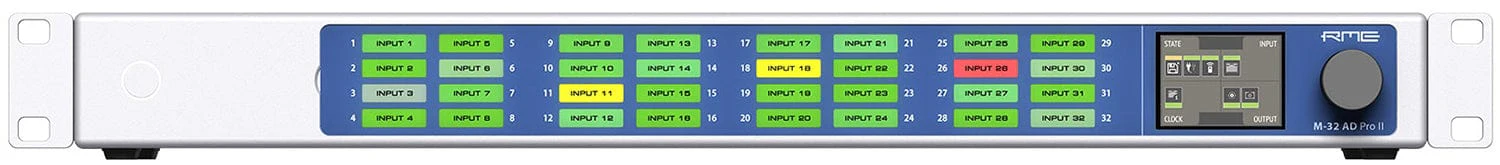

- 2" display with control knob for full device control
- Large tricolor backlit channel indicators with peak/RMS metering
- Magnetic cover with customizable channel labels
- 15 preset storage, firmware-upgrade persistent
- Lock (optional code) and dark mode
- Remote control via HTTP, JSON, MIDI over MADI, and optional MIDI
- 2 monitored, fully redundant internal PSUs
- Compact 1 RU, 19" enclosure
Specifications:
- Form Factor: Rackmount (Rack-Mountable with Included Hardware)
- Converter Type: A/D Converter
- Number of Channels: 32x A/D (at 192 kHz)
- Maximum Sampling Rate: 192 kHz / 24-Bit
- Number of Microphone Inputs: No

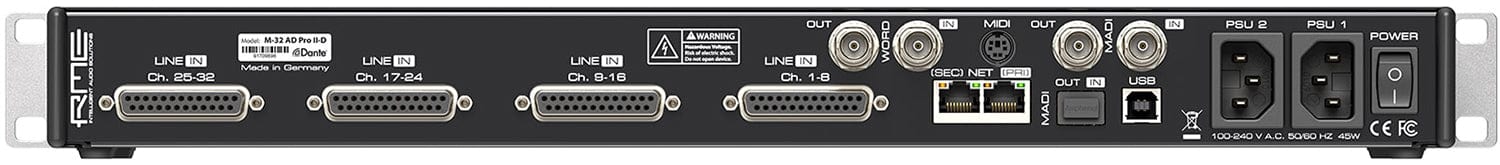

- Analog Audio I/O: 4x DB-25 25-Pin Balanced Line Input
- Digital Audio I/O:
- 1x BNC Coaxial MADI Input
- 1x BNC Coaxial MADI Output
- 1x TOSLINK Optical MADI In & Out
