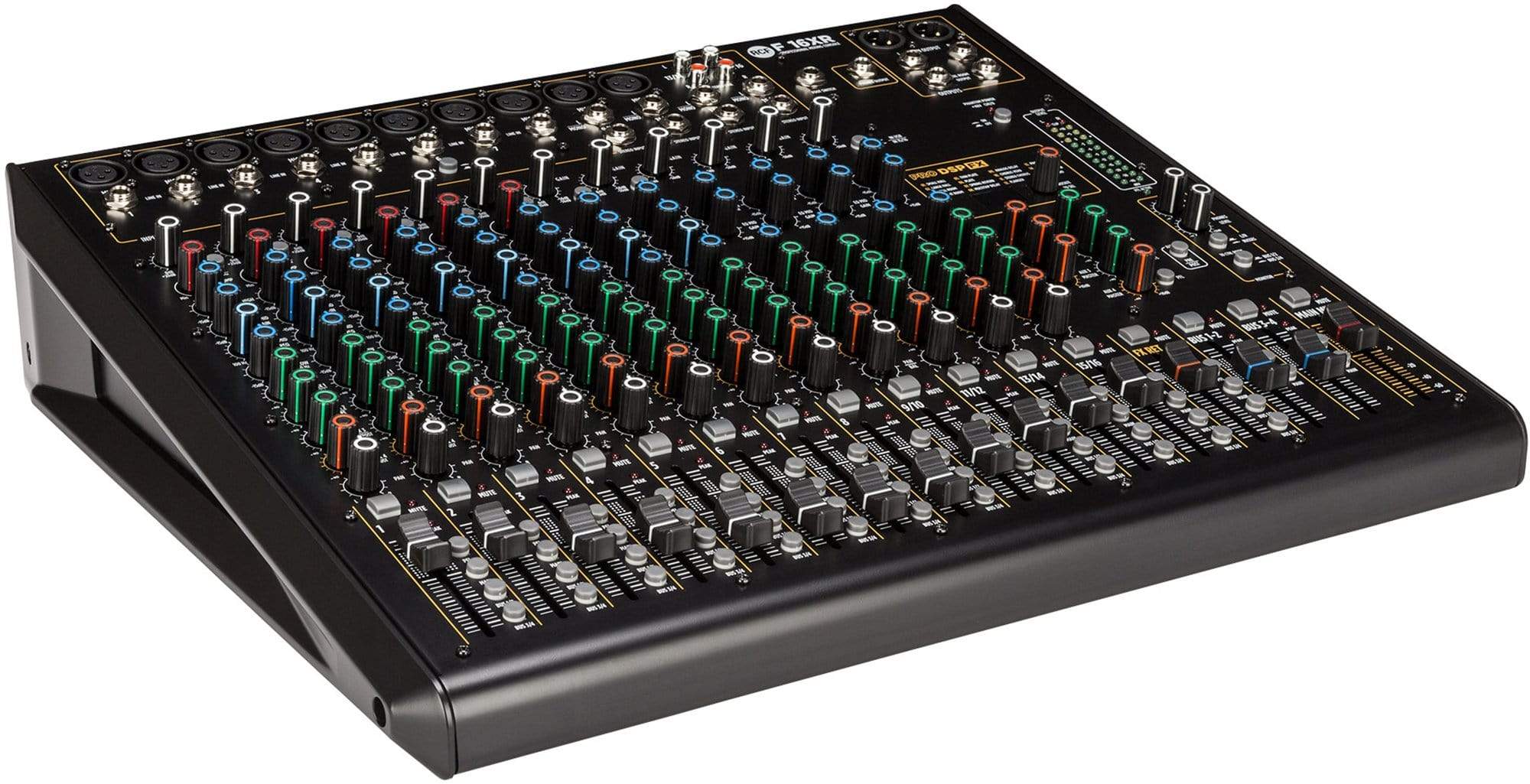

RCF F16-XR 16 Channel Mixer with FX and Recording

RCF F16-XR 16 Channel Mixer with FX and Recording

The F 16XR features 10 mic preamp inputs, 4 mono line inputs, 4 stereo line inputs plus multi-FX and Recording via USB port, with balanced main output (Stereo XLR + TRS) and 6 single control compressors. The mono channels are provided with 3-band EQ, with selectable mid frequency, and 3-band for stereo channels. The mixer features 16 PRO DSP internal presets, two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post). It also features 60mm faders.

Features:

• 10 Mic preamp inputs, 4 mono line inputs
• 4 Stereo line inputs
• PRO DSP FX onboard with 16 presets
• Stereo recording and playback via USB port
• 6 single control compressors
• Balanced main output +28 dB (Stereo XLR + TRS)
• Two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post)
• 60 mm faders
• Internal universal power supply
• Designed and engineered in Italy

Specifications:

• Electrical specifications
  • Frequency Response: 20 Hz ÷ 20 kHz
  • THD+N, 20dB gain, 0dBu out (% A-Weighted): <0,02% A-Weighted
  • Power supply: Internal
  • Voltage requirements: 100 V - 240 V
  • Power consumption (W): 30 W
• Inputs
  • Gain Range: 0 dB ÷ -50 dB
  • Gain Selection: 20 dB ÷ -30 dB
  • HI-Z Line Inputs Impedance (MOhm): 1 Mohm
  • HI-Z Line Inputs: 1
  • Input Noise Level (dBu A-Weighted): -124 dBu A-Weighted
  • Mic Inputs Impedance (KOhm): 14 kohm
  • Line: 8
  • Line Input Impedance (kOhm): 21 kohm
  • Low Cut: 80 Hz
  • Mic: 10
  • Phantom Power +48V: Yes
  • Stereo Line: 4
  • Stereo Line Gain Selection: 20 dB ÷ -30 dB
  • Stereo Line Input Impedance: 14 kohm
• Outputs
  • Main MIX: 1
  • Control Room: Yes
  • FX Send: 1
  • AUX Send: 3
  • AUX output: 4
  • Group Out: 4
  • Phones: 1
• Outputs specifications
  • Main Out Level (dBu): 28 dBu
  • Aux Out Level (dBu): 28 dBu
  • Group Out Level (dBu): 28 dBu
  • Phones Out impedance (Ohm): 150 ohm
  • Phones Out Level (dBm): 10 dBm
• Compressors
  • RCF Compressors: n°6 Single Control Compressors on Channels 1 to 6
• EQ
  • Input Channels EQ: 1 Semi Parametric / 2 Shelving
  • Description:
    • High: +/-15 dB @ 10 kHz Shelving
    • Mid: +/-15 dB @ Freq. sel. from 100Hz to 8kHz - Bell
    • Low: +/-15 dB @ 100 Hz Shelving
• Auxiliary sends
  • AUX: 2 PRE / 1 PRE/POST
  • FX POST: 1
• Internal Effects
  • Send Effects: 1
• USB audio
  • Type: B
  • Play trk: 2
  • Rec trk: 2
  • Supported Sample Rate (kHz): 44.1, 48.0 kHz
• Other features
  • Footswitch: Yes
• Standard compliance
  • CE marking: Yes
• Physical specifications
  • Cabinet/Case Material: Metal
  • Color: Black
• Size
  • Depth: 406 mm / 15.98 inches
  • Height: 107 mm / 4.21 inches
  • Weight: 6.4 kg / 14.11 lbs
  • Width: 479 mm / 18.86 inches
• Shipping informations
  • Package Depth: 523 mm / 20.59 inches
  • Package Height: 150 mm / 5.91 inches
  • Package Weight: 7.4 kg / 16.31 lbs
  • Package Width: 453 mm / 17.83 inches
