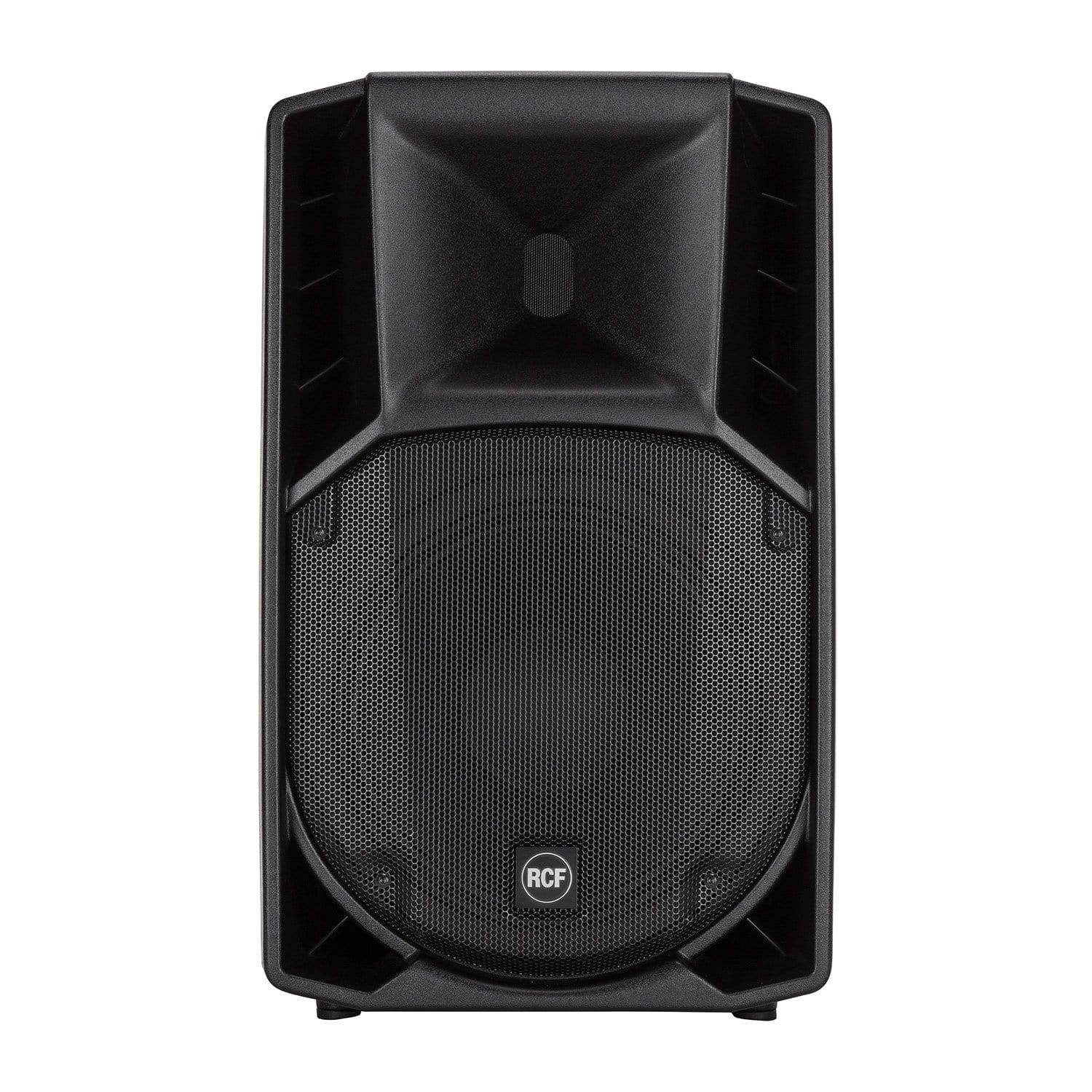

RCF ART735a-MK4 15-inch 1400W 2-Way Powered Speaker

RCF ART735a-MK4 15-in 1400W 2-Way Powered Speaker

The ART 735-A MK4 is a unique speaker in its category. The titanium dome, 3.0" voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 15"neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.

Features:

• 132 dB Max SPL
• 1400 WATT 2-way peak power
• Innovative DSP Processing
• 1.4" Titanium Compression Driver, 3.0" v.c. Neodimium
• 15" Woofer
• 800 Hz crossover point for perfect vocal reproduction
• 90°x60°, wide dispersion constant directivity horn
• FiRPHASE Technology

Applications:

• Compact live sound reinforcement
• Portable PA
• Frontfill and sidefill
• Auditorium, Clubs, Ballroom, Corporate AV, Theatre

Specifications:

• Frequency Response -3 dB: 45 Hz ÷ 20000 Hz
• Max SPL: 132 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 60°
• Compression Driver: 1.4", 3.0" v.c.
• Woofer: 15", 3.0" v.c.
• Input signal: Bal / unbal
• Input connectors: XLR, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu / +4 dBu
• Crossover frequencies: 800 Hz
• Protections: Thermal, rms
• Limiter: Soft limiter
• Controls: Volume, Boost, Mic/Line
• Total power: 1400 W PEAK
• High frequencies: 400 W PEAK
• Low frequencies: 1000 W PEAK
• Total power: 700 W RMS
• High frequencies: 200 W RMS
• Low frequencies: 500 W RMS
• Cooling: Convection / forced
• Connections: VDE connector in
• Cabinet Material: Composite PP
• Hardware: 2xM10 flying p.
• Handles: 2 side, 1 top
• Pole Mount/Cap: Yes
• Colour: Black
• Height: 708 / 27.87 mm/inch
• Width: 437 / 17.2 mm/inch
• Depth: 389 / 15.31 mm/inch
• Net Weight: 21.4 / 47.18 kg/lbs
