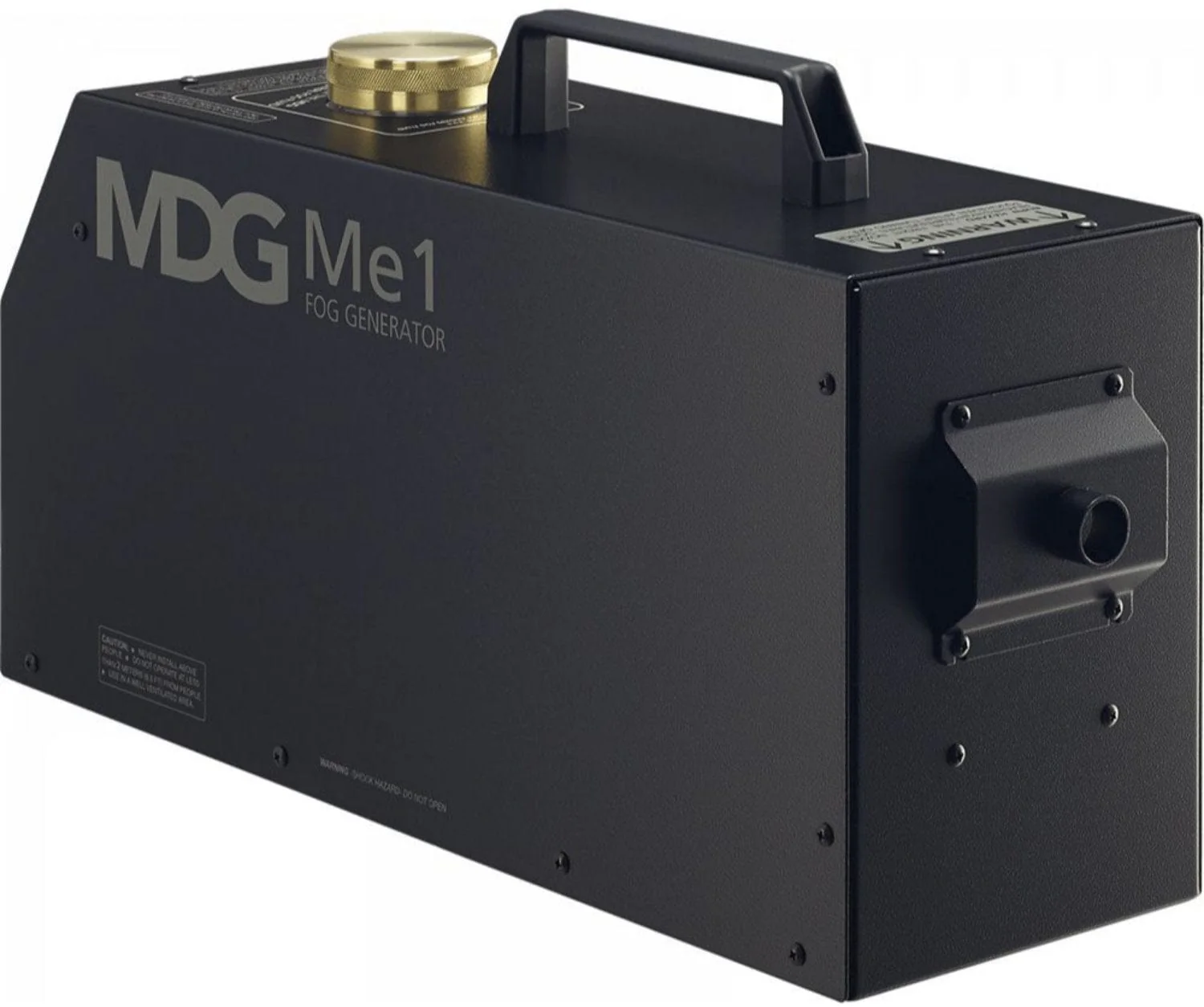

MDG Me1 Auto-Refilling Central Pump System Single High Output Fog Generator

MDG Me1 Auto-Refilling Central Pump System Single High Output Fog Generator

The MDG Me1 is a high-output fog generator designed for demanding environments, equipped with an auto-refilling central pump system for continuous and efficient fog production. With a maximum fog output of 100 m³ per minute, it ensures consistent, dense fog with minimal interruption, making it ideal for large events and productions. The advanced auto-refill system and automatic purging feature enhance reliability, delivering powerful atmospheric effects whenever needed.

Features:

• Variable fog output control from 0-100% via DMX/RDM or direct local control
• Second personality with MAX 3000APS configuration setting
• Fluid consumption of only 1 L (0.26 US gallon) per hour at maximum output
• Numerous control options including a 4-button LCD user interface and RDM compliance
• 100% duty cycle for continuous fog production as long as fluid and gas are available
• Automatic Purging System (APS) prevents residual buildup and clogging
• Single nozzle design with maximum fog output of 100 m³ (3,531 ft³) per minute

Specifications:

• Maximum fog output: 100 m³ (3,531 ft³) per minute
• Fluid consumption: 1 L (0.26 US gallon) per hour at 2.76 bar / 40 psi
• Gas type: CO2 or N2
• Gas consumption: 1 kg (2.2 lb) per hour at 2.76 bar / 40 psi
• Control: 4-button LCD, 3 DMX512 channels, XLR-5 connectors, RDM compliant
• Reservoir capacity: 2.5 L (0.66 US gallon)
• APS™: Standard
• Fog color: Pure white
• Particle size: 0.5 - 0.7 microns
• Warm-up time: 8 minutes (maximum)
• Fluid type: MDG Neutral
• Operating voltage: 100 - 250 VAC, 50/60 Hz single phase
• Power consumption: 715 W
• Dimensions: 61 cm (24") length, 18 cm (7") width, 30 cm (12") height
• Weight: 15.62 kg (35 lb), Shipping weight: 29.12 kg (64 lb) with flight case
• Approval: CB, CSA, UL Certified; CE Declaration
