Elation SIXPAR 200 12x12w RGBAW Plus UV LED Wash Light

Elation SIXPAR 200 12x12-Watt RGBAW+UV LED Wash Light

Part of the Sixpar Series

The new indoor version SIXPAR 200 features (12) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 15° beam and 25° field angles, electronic strobe and dimming (0-100%), 5 variable dimming curve modes, dual yoke/floor stand, multiple unit power linking, RDM (remote device management), rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 150W max power consumption, and a multi-voltage universal auto switching power supply (110-250v).

Features:

• 15° Beam 25° Field Angles
• 5 Variable Dimming Curve Modes
• Dual Yoke/Floor Stand
• Multiple Unit Power Linking
• RDM - Remote Device Management
• Rugged Die-Cast Aluminum Exterior
• Flicker Free Operation for TV and FILM

Source

• (12) 12W 6-in-1 RGBAW+UV LEDs
• 100,000 Hour Average LED Life

Photometric Data

• 22,250 LUX 2.067 FC @3.3' (1m) (15° Full ON)
• 5,600 LUX 520 FC @6.6' (2m) (15° Full ON)
• 2,500 LUX 232 FC @9.8' (3m) (15° Full ON)
• 1,360 LUX 126 FC @13.1' (4m) (15° Full ON)
• 930 LUX 86 FC @16.5' (5m) (15° Full ON)

Effects

• Electronic Strobe
• Color and Chase Macros
• Electronic Dimming: 0% - 100%
• 5 Variable Dimming Curve Modes

Control/Connections

• (4) DMX Channel Modes (6/7/8/12)

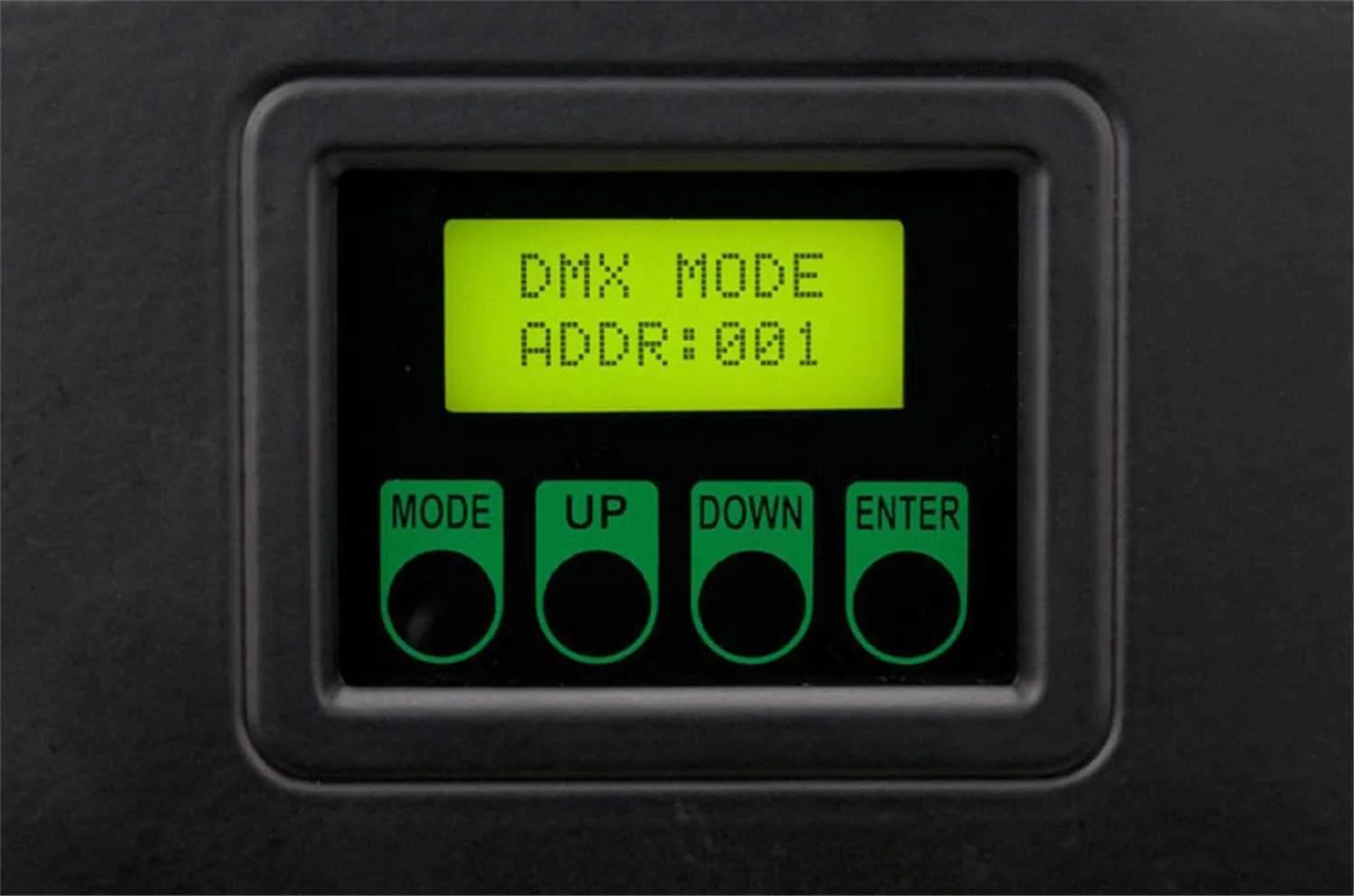

• (4) Button Touch Control Panel
• LCD Menu Display
• 3pin and 5pin DMX and powerCON In/Out

Size/Weight

• Length:12.3" (313mm)
• Width: 4.9" (125mm)
• Vertical Height: 11.8" (300mm)
• Weight: 18.0 lbs. (8.1 kg)

Electrical/Thermal

• AC 110-250V - 50/60Hz
• 150W Max Power Consumption
• Power Linking: 8pcs @110V/18pcs @240V
• 5°F to 113°F (-15°C to 45°C)
• UV Wavelength: 395nm

Approvals/Ratings

• CE | cETLus | IP20

Installation

• Rigging: Integrated Dual Yoke/Floor Stand
• Working Position: Any (360°)

Included Item

• powerCON Power Cable
