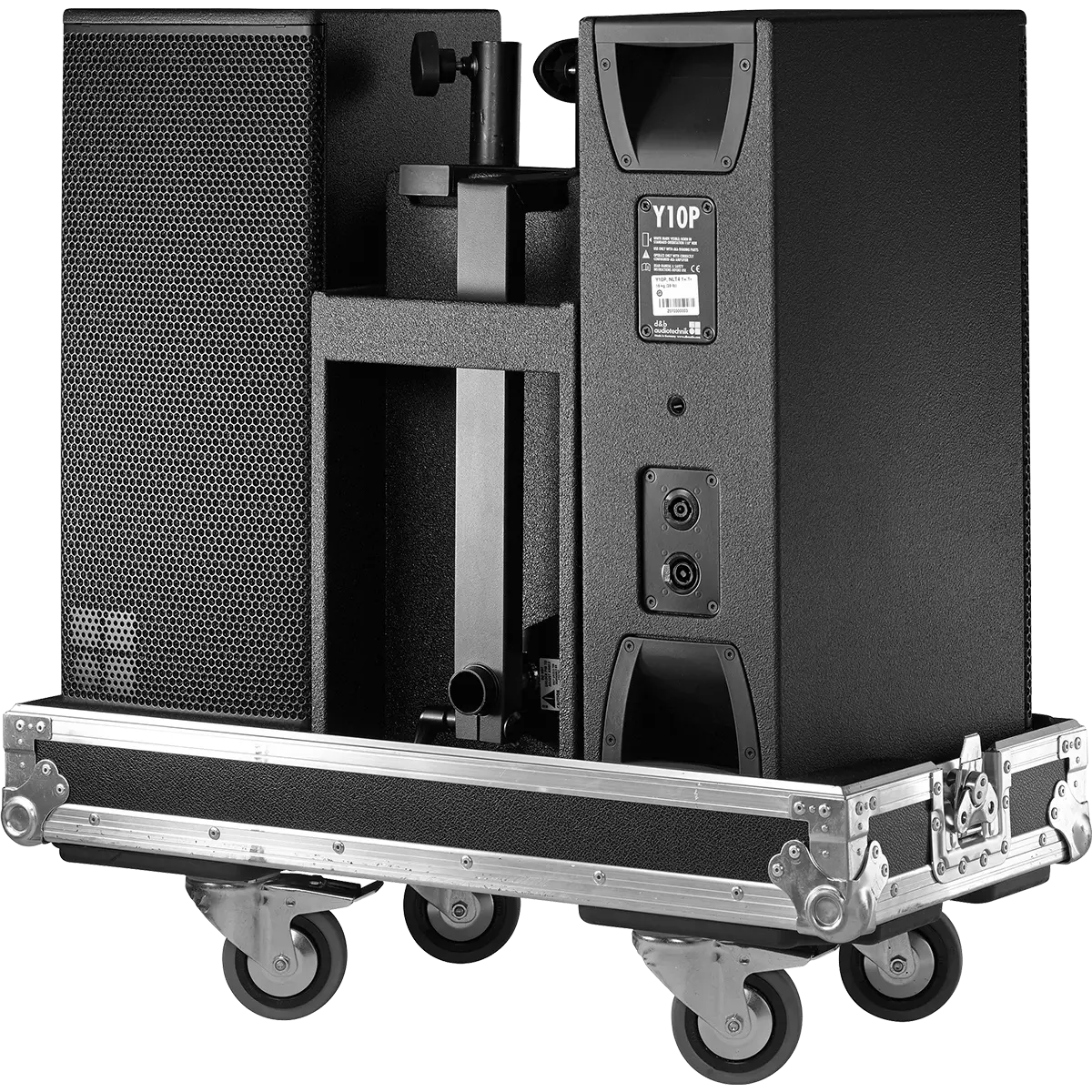

d&b audiotechnik Y10P Loudspeaker

d&b audiotechnik Y10P Loudspeaker High Performance 2-way Passive Point Source Loudspeaker

The Y10P is a compact, 2-way passive loudspeaker featuring two 8" drivers in a dipole arrangement with a 1.4" compression driver on a rotatable CD horn.

The loudspeaker provides broadband dispersion control down to approximately 500 Hz within the dipole plane.

The Y10P delivers a 110° horizontal and 40° vertical coverage pattern, and the rotatable horn can be rotated 90° to enable horizontal orientation. Also, the Y10P is suitable for ground stacking, flying, or standalone use.

The Y10P is available with NL4 Speakon Connection or NLT4 F/M Connections.

Features:

• Components 2 x 8"/1.4"
• Dispersion 110° x 40°
• SPLmax 136 dB
• Weight 18 kg / 40 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 59 Hz - 18 kHz
  • Frequency response (-5 dB CUT mode): 118 Hz - 18 kHz
  • Max. sound pressure:
    • with 10D: 131 dB
    • with D20/30D: 134 dB
    • with D40/D80/40D: 136 dB
  • Cabinets per amplifier channel: 2
• Loudspeaker data:
  • Configuration: High performance 2-way passive point source loudspeaker
  • Nominal impedance: 8 Ω
  • Power handling capacity (RMS/peak 10 ms): 400/1600 W
  • Nominal dispersion angle (h x v): 110° x 40°
  • Components:
  • 2 x 8" driver with neodymium magnet
  • 1.4" exit compression driver
  • passive crossover network
  • Connections: 2 x NL4
• Dimensions / weight:
  • Dimensions (H x W x D): 580 x 257 x 341 mm (22.8 x 10 x 13.4")
  • Weight: 18 kg (40 lb)

Amplifiers:

• d&b audiotechnik D20 Amplifiers
• d&b audiotechnik D40 Amplifier
• d&b audiotechnik D80 Amplifier
• d&b audiotechnik D25 Amplifier
• d&b audiotechnik D90 Amplifier
• d&b audiotechnik 10D Amplifier
• d&b audiotechnik 30D Amplifier
• d&b audiotechnik 40D Amplifier
• d&b audiotechnik 25D Amplifier
