d&b audiotechnik T10 Loudspeaker

d&b audiotechnik T10 Loudspeaker 2-way Loudspeaker with Rotatable Horn for Point and Line Source Operation

The T10 is a passive 2-way loudspeaker with dual 6.5" drivers and a 1.4" HF compression driver.

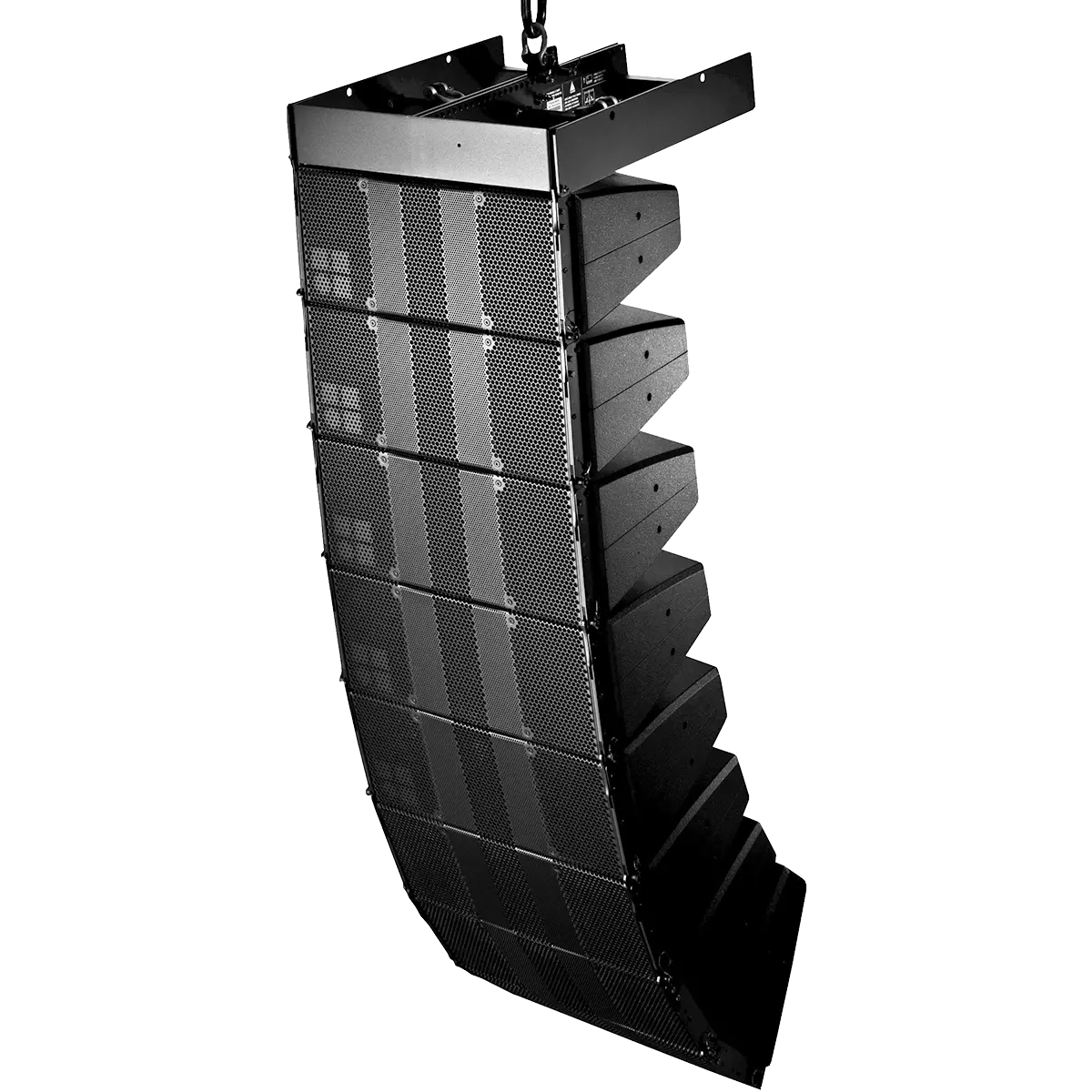

The T10 delivers a vertical line source with 90° horizontal dispersion maintained down to about 600 Hz.

The loudspeaker features an acoustic lens that expands its horizontal dispersion to 105°, and rotation of the horn by 90° adjusts its dispersion to 90° horizontal and 35° vertical, allowing the T10 to operate alone as a full-range loudspeaker.

The T10 is available with NL4 Connections or NLT4 F/M Connections.

Features:

• Components 2 x 6.5"/1.4"
• Dispersion 90° x 35° / 105°
• SPLmax 130 / 132 dB
• Weight 11 kg / 24 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 68 Hz - 18 kHz
  • Frequency response (-5 dB CUT mode): 120 Hz - 18 kHz
  • Max. sound pressure:
    • with 10D: 129 dB2 / 127 dB3
    • with D20/5D/30D: 132 dB2 / 130 dB3
    • with D40/D80/40D: 132 dB2 / 130 dB3
  • Cabinets per amplifier channel: 4
• Loudspeaker data:
  • Configuration: 2-way loudspeaker with rotatable horn for point and line source operation
  • Nominal impedance: 16 Ω
  • Power handling capacity (RMS/peak 10 ms): 200 /800 W
  • Nominal dispersion angle (point source, h x v): 90° x 35°
  • Nominal dispersion angle (line source, horizontal): 105°
  • Components:
    • 2 x 6.5" driver with neodymium magnet
    • 1.4" exit compression driver on rotatable waveguide
    • passive crossover network
  • Connections: 2 x NL4
• Dimensions / weight:
  • Dimensions (H x W x D): 197 x 470 x 300 mm (7.8 x 18.5 x 11.8")
  • Weight: 11 kg (24 lb)

Amplifiers:

• d&b audiotechnik D25 Amplifier
• d&b audiotechnik D40 Amplifier
• d&b audiotechnik D80 Amplifier
• d&b audiotechnik D90 Amplifier
• d&b audiotechnik 25D Amplifier
• d&b audiotechnik 40D Amplifier
• d&b audiotechnik D20 Amplifier
• d&b audiotechnik 5D Amplifier
• d&b audiotechnik 10D Amplifier
• d&b audiotechnik 30D Amplifier
