$3,437.14
Original: $9,820.40
-65%d&b audiotechnik 40D Amplifier—
$9,820.40
$3,437.14The Story
d&b audiotechnik 40D Amplifier Installation Specific Four Channel Amplifier
The d&b audiotechnik 40D is a 2RU installation amplifier features integrated DSP with comprehensive loudspeaker management, switchable filters, and parametric EQ capabilities.
The amps has a 4.3" colour touchscreen, which allows for intuitive configuration and real-time system diagnostics.
The 40D includes flexible input routing, supporting 8 Milan network, 4 analogue, and 4 AES3 inputs, plus GPIO integration for building control systems. LoadMatch technology compensates for cable losses of up to 70 m while maintaining tonal accuracy. Remote configuration via AES70/OCA and R1 software also streamlines deployment and ongoing management.
Features:
- Maximum output power
4 x 2400/2000 W into 4/8 Ω - Monitoring display, Color TFT touchscreen, 4.3" / 480 x 272 pixel
- 12 configurable GPIOs (8 x GPI, 4 x GPO)
- Milan-enabled
Specifications:
Digital Signal Processing:
- Equalizer:
2 x 16-band PEQ/notch/shelving/asymmetric
- Latency Analog and Digital Inputs: 0.3 ms
- Delay Setting: 0.3 ms - 10 s
- Configurations: Current d&b loudspeakers (except GSL, SL-SUB, J-Series, M2)
- Function Switches: d&b loudspeaker specific circuits
- Frequency Generator: Pink noise or Sine wave 10 Hz - 20 kHz
Controls and Indicators:
- Status Information and Monitoring: Colour touchscreen, 4.3" 480 x 272 pixel

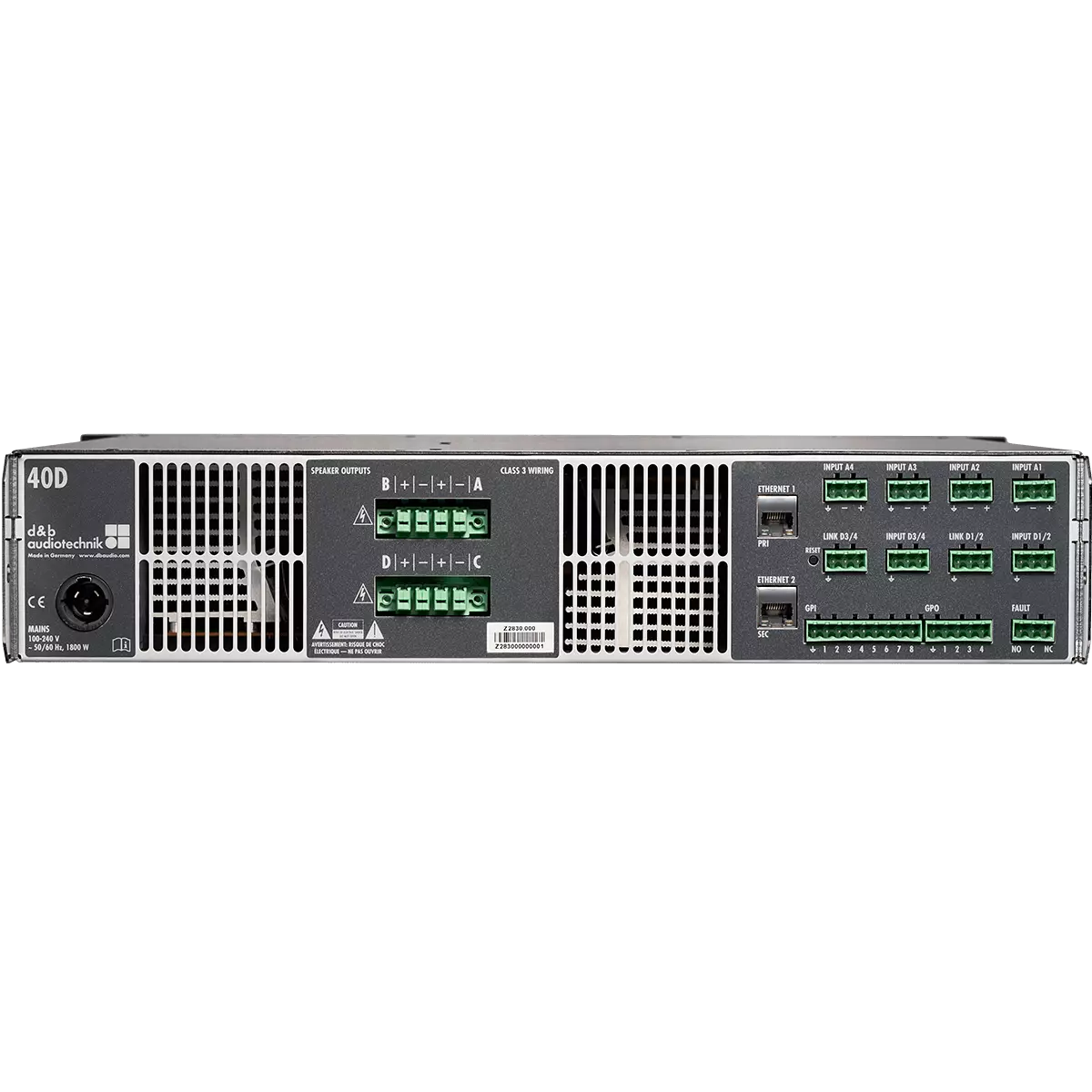

Connectors:
- Sampling Frequency Digital AES/EBU: 44.1, 48, 96, 192 kHz
- INPUT ANALOG (A1 - A4): 3-pin Phoenix Euroblock male
- ANALOGUE LINK (A1 - A4): 3-pin Phoenix Euroblock male
- INOUT DIGITAL (D1/2, D3/4): 3-pin Phoenix Euroblock male, AES3
- INPUT Network Audio (Milan) (M1-M8): etherCON built-in 5-port AVB Ethernet switch 100/1000 Mbit
- DIGITAL LINK (Output): 3-pin Phoenix Euroblock male, AES3
- Mix TOP/SUB / 2-Way Active Output A/B and C/D: 2 x 4-pin Phoenix Euroblock female
- GPIO (General Purpose Input Output): 1 X 14-pin Phoenix Euroblock male
- Ethernet: 2 x RJ 45, 1 Gbit / 100 Mbit
- FAULT: 1 x 3-pin Phoenix Euroblock male
- Speaker Outputs A/B/C/D: 2 x 4-pin Phoenix Euroblock female
- Mains Connector: powerCON TRUE1 TOP
Data (Linear Setting with Subsonic Filter):
-
Maximum output power per channel (THD+N < 0.5%, all channels driven)
CF = 12 dB at 4 / 8 ohms: 4 x 2400/2000 W
Power Supply:
- Type: Autosensing switch mode power supply with active Power Factor Correction (PFC)
- Rated Mains Voltage: 100 - 127 / 208 - 240 V, 50 - 60 Hz
Dimensions / Weight:
- Dimensions (h x w x d): 2 RU x 19" x 465 mm=/18.3"
- Weight: 13,3 kg
29,3 lb
Speakers and Subs:
- d&b audiotechnik CCL8 Loudspeaker
- d&b audiotechnik CCL12 Loudspeaker
- d&b audiotechnik CCLi8 Loudspeaker
- d&b audiotechnik CCLi12 Loudspeaker
- d&b audiotechnik KSL8 Loudspeaker
- d&b audiotechnik KSL12 Loudspeaker
- d&b audiotechnik KSLi8 Loudspeaker
- d&b audiotechnik KSLi12 Loudspeaker
- d&b audiotechnik T10 Loudspeaker
- d&b audiotechnik Ti10L Loudspeaker
- d&b audiotechnik V8 Loudspeaker
- d&b audiotechnik V12 Loudspeaker
- d&b audiotechnik Vi8 Loudspeaker
- d&b audiotechnik Vi12 Loudspeaker
- d&b audiotechnik XSL8 Loudspeaker
- d&b audiotechnik XSL12 Loudspeaker
- d&b audiotechnik XSLi8 Loudspeaker
- d&b audiotechnik XSLi12 Loudspeaker
- d&b audiotechnik Y8 Loudspeaker
- d&b audiotechnik Y12 Loudspeaker
- d&b audiotechnik Yi8 Loudspeaker
- d&b audiotechnik Yi12 Loudspeaker
- d&b audiotechnik AL60 Loudspeaker
- d&b audiotechnik AL90 Loudspeaker
- d&b audiotechnik ALi60 Loudspeaker
- d&b audiotechnik ALi90 Loudspeaker
- d&b audiotechnik 4S Loudspeaker
- d&b audiotechnik 5S Loudspeaker
- d&b audiotechnik 8S Loudspeaker
- d&b audiotechnik 10S Loudspeaker
- d&b audiotechnik 10S-D Loudspeaker
- d&b audiotechnik 12S Loudspeaker
- d&b audiotechnik 12S-D Loudspeaker
- d&b audiotechnik 24S Loudspeaker
- d&b audiotechnik 24S-D Loudspeaker
- d&b audiotechnik 42S Loudspeaker
- d&b audiotechnik 44S Loudspeaker
- d&b audiotechnik E4 Loudspeaker
- d&b audiotechnik E5 Loudspeaker
- d&b audiotechnik E6 Loudspeaker
- d&b audiotechnik E8 Loudspeaker
- d&b audiotechnik E12 Loudspeaker
- d&b audiotechnik E12-D Loudspeaker
- d&b audiotechnik Ti10P Loudspeaker
- d&b audiotechnik U3 Loudspeaker
- d&b audiotechnik U5 Loudspeaker
- d&b audiotechnik U7 Passive Loudspeaker
- d&b audiotechnik V7P Loudspeaker
- d&b audiotechnik V10P Loudspeaker
- d&b audiotechnik Vi7P Loudspeaker
- d&b audiotechnik Vi10P Loudspeaker
- d&b audiotechnik Y7P Loudspeaker
- d&b audiotechnik Y10P Loudspeaker
- d&b audiotechnik Yi7P Loudspeaker
- d&b audiotechnik Yi10P Loudspeaker
- d&b audiotechnik 12S Subwoofer
- d&b audiotechnik 18S Subwoofer
- d&b audiotechnik 21S Subwoofer
- d&b audiotechnik 27S Subwoofer
- d&b audiotechnik B4 Subwoofer
- d&b audiotechnik B6 Subwoofer
- d&b audiotechnik B8 Subwoofer
- d&b audiotechnik B10 Subwoofer
- d&b audiotechnik B12 Subwoofer
- d&b audiotechnik B22 Subwoofer
- d&b audiotechnik Bi6 Subwoofer
- d&b audiotechnik Bi8 Subwoofer
- d&b audiotechnik Bi10 Subwoofer
- d&b audiotechnik Bi12 Subwoofer
- d&b audiotechnik CCL Subwoofer
- d&b audiotechnik CCLi Subwoofer
- d&b audiotechnik E12X Subwoofer
- d&b audiotechnik E15X Subwoofer
- d&b audiotechnik KSL Subwoofer
- d&b audiotechnik KSLi-GSUB Subwoofer
- d&b audiotechnik KSLi Subwoofer
- d&b audiotechnik Ti Subwoofer
- d&b audiotechnik V-GSUB Subwoofer
- d&b audiotechnik V Subwoofer
- d&b audiotechnik Vi-GSUB Subwoofer
- d&b audiotechnik Vi Subwoofer
- d&b audiotechnik XSL Subwoofer
- d&b audiotechnik XSLi-GSUB Subwoofer
- d&b audiotechnik XSLi Subwoofer
- d&b audiotechnik Y Subwoofer
- d&b audiotechnik Yi Subwoofer
- d&b audiotechnik 16C Loudspeaker
- d&b audiotechnik 24C Loudspeaker
- d&b audiotechnik 24C-E Loudspeaker
- d&b audiotechnik M4 Stage Monitor
- d&b audiotechnik M6 Stage Monitor
- d&b audiotechnik MAX2 Stage Monitor
