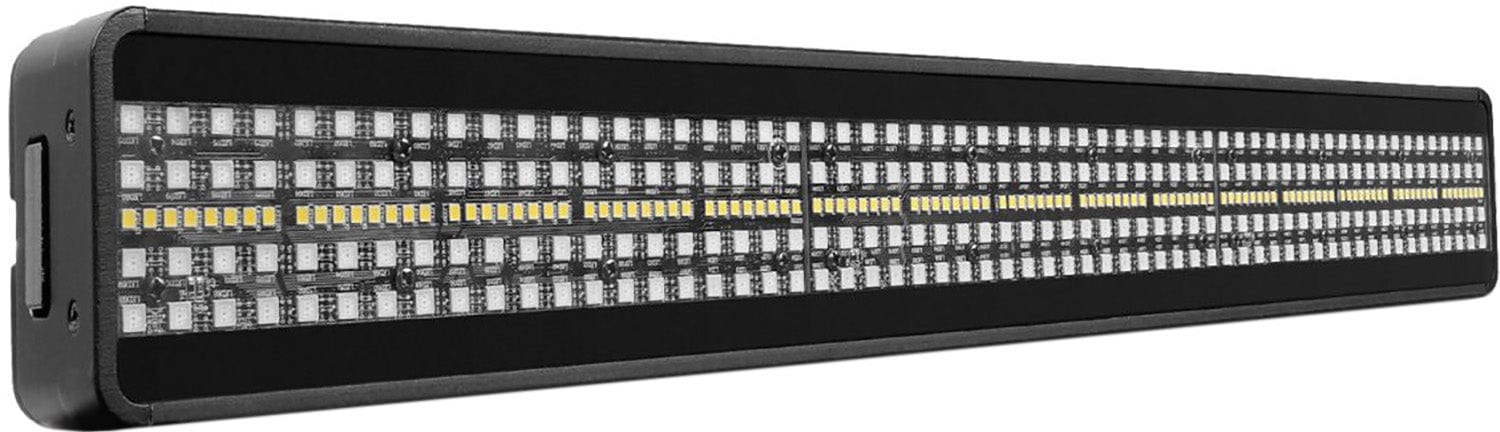

Clay Paky Tambora Linear 60 240x RGB Background LED 120x 3.7-Watt High Output BarWhite LED

Clay Paky Tambora Linear 60 240x RGB Background LED 120x 3.7-Watt High Output BarWhite LED

Following on from its successful range of LED bars introduced last year, Claypaky has now expanded the Tambora family further and introduces Tambora Linear 60, an advanced static LED Pixel mapping bar designed for versatile lighting effects and artistic set decoration.

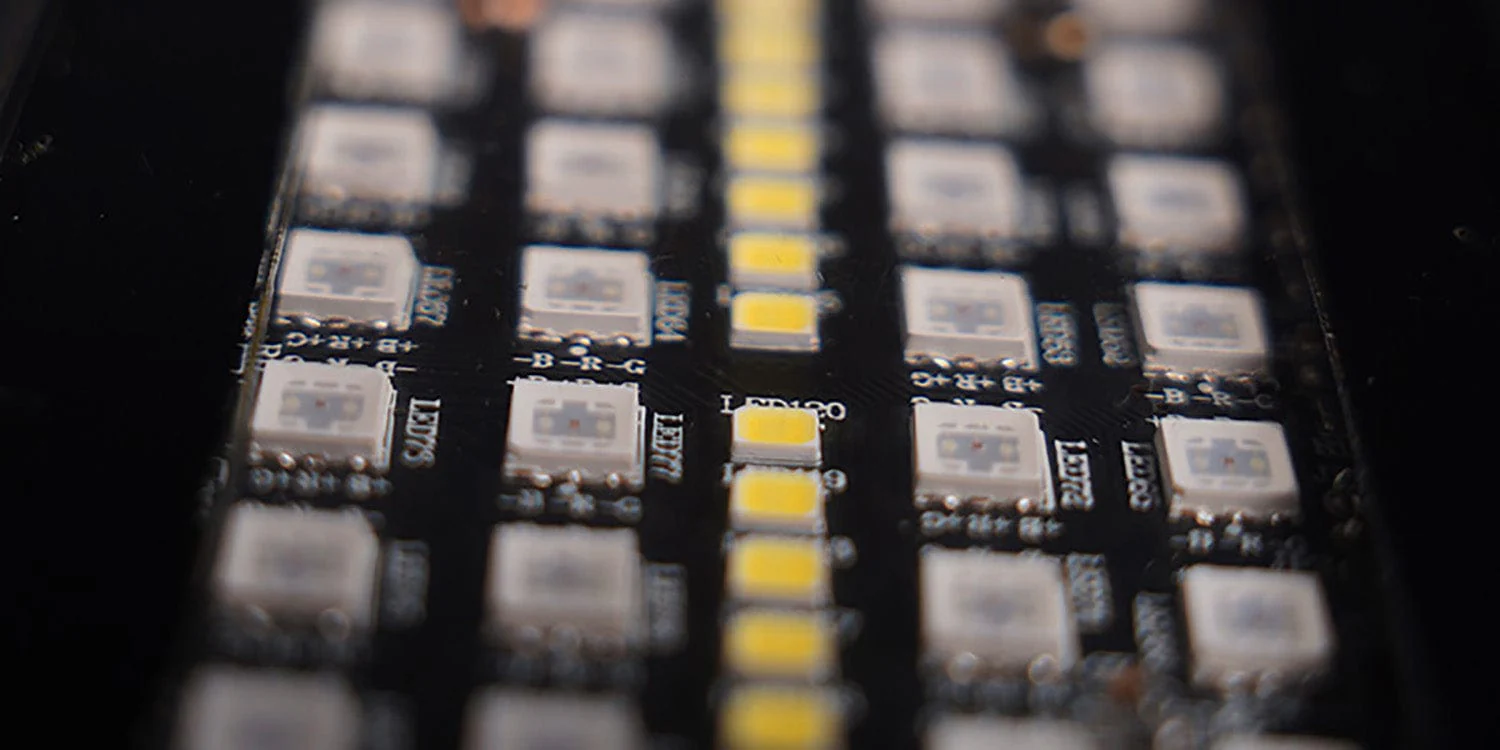

These are hybrid bars, which incorporate two complementary effects into one fixture. The first is driven by a system of 240 RGB pixel LEDs, which offer a background light very similar to that of a high definition LED wall in appearance. This LED array can be controlled as 16 LEDs in 15 groups to provide high quality motion graphics.

The second effect is created by a central line of 120 extremely powerful white LEDs for an overwhelming strobe effect, capable of reproducing the behavior of the most celebrated strobe fixtures on the market. This effect can also be controlled through 15 different areas, offering unparalleled versatility.

All graphic content can be managed through the Advanced Layers Management, an exclusive feature of Claypaky LED bars, with which you can choose to use different levels of effects simultaneously, giving free expression to your creativity.

Tambora Linear 60 features a large number of built-in effects, so it can be used not only in advanced mode but also in a simple mode for whenever a media server is not available, or the installation requires a speedy solution.

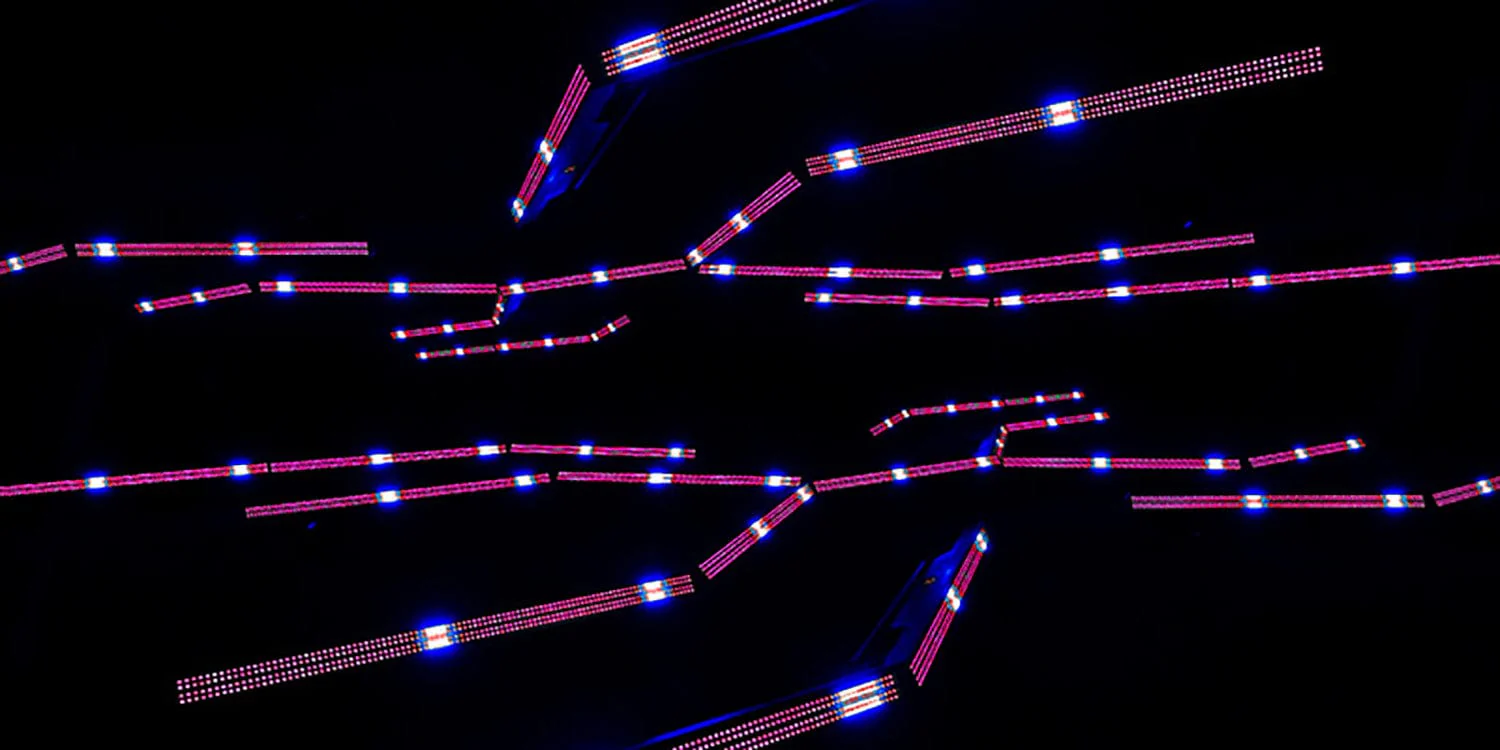

The Tambora Linear 60 can be easily connected mechanically with multiple units and then operated as one complete fixture from the control software. This is extremely easy and user-friendly to use. For greater compositional modularity, we also offer Tambora Linear 100 (1 m length).

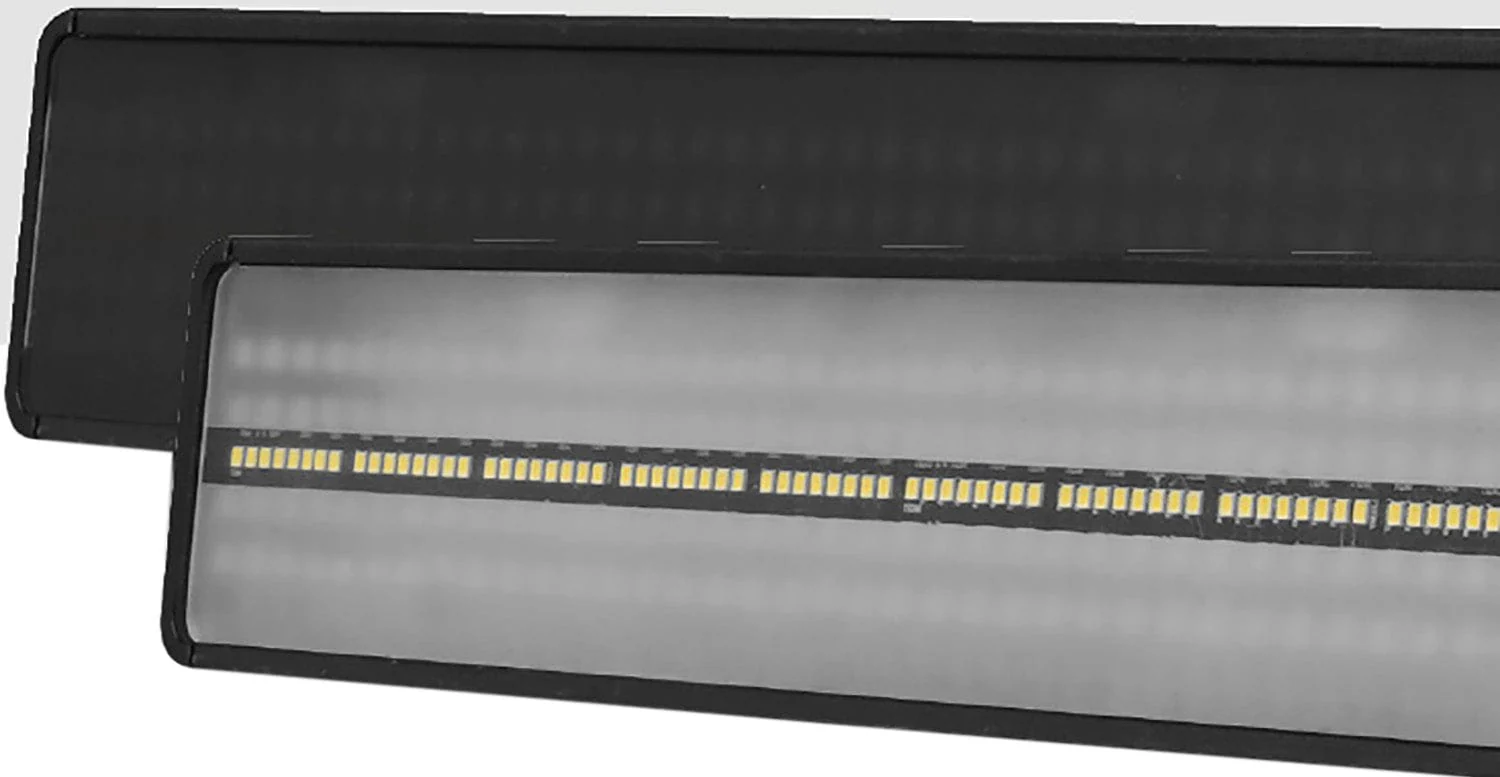

Claypaky also offers a wide range of easy-to-apply accessory filters. These can shape the beam of light with a frost effect or increase the readability of the pixels with the “neutral density” filter, which is particularly useful for television applications and really enhances the on-camera performance.

Tambora Linear 60 is both sleek and lightweight and has been designed with a slim body, in order to better adapt to many applications, from TV studios to touring, where the need for pixel mapping light sets is increasingly in demand and appreciated. The “hybrid” nature of Tambora is perfect for this need and provides a two-in-one versatility. This is a truly distinctive product within each lighting set, at a truly competitive price.

Features:

• Hybrid LED bars
• Exclusive Advanced Layers Management
• Easy-to-apply accessory filters

Specifications:

• Light Source Type:
  • 240 RGB LEDs background and 120 white LEDs strobe
  • Lamp life expectancy: 50000 hrs
• Photometric Data:
  • White strobe 120° of beam aperture
  • RGB LEDs 69°@50% - 113°@10%
  • 10114 Lumen Output (Integrating Sphere)
• Noise Level:
  • Sln: 33.0 dBA
  • Theatre: 33.1 dBA
  • Auto: 44.8 dBA
  • Constant: 45.9 dBA
• Control and Connections:
  • 5 Personalities: 9/13/31/33/39 control channels
  • Control Protocol: DMX, Art-Net, RDM, sACN
  • DMX and RDM connectors: Locking 5 pin XLR IN/THRU
  • Ethernet ports: RJ45 IN/OUT
  • Power connectors: PowerCon True1 IN/OUT
  • Built In Web Server
• Dynamic Effects:
  • 240 pcs 3-in-1 RGB LEDs, split into 15 areas
  • 120 pcs white LEDs, split into 15 areas
  • Advanced Layer Management (Color – Internal Shape – Pixel Mapping - Strobe)
  • White CT emulation 2800-8000K
  • RGB and Strobe Shape effect
  • Electronic linear dimmer, 24 bit and 5 curves
  • Electronic strobe/stop from 0.3 to 25 f/sec
• Hardware and Software:
  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM
  • CloudIO compatibility
• Housing:
  • Aluminum and steel structure with plastic parts
  • One handle for transportation
  • IP20 protection rate
  • Built-in mechanical alignment system
• Working Position:
  • Working in any position
  • Hanging system: with long bracket
  • Optional safety chain
• Electrical:
  • Operating Voltage: 100-240V, 50/60 Hz - In/Out Max 10.9 A @ 200-240Vac (9.6 A @ 100-120Vac)
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 240W
• Thermal Specification:
  • Max ambient temperature 45°C (113°F)
  • Min ambient temperature -20°C (-4°F)
  • Max temperature of the external surface 50°C (122°F)
  • Total heat dissipation: 819 BTU/hr ±10% / 864 kJ/hr ±10%
• Safety Specs:
  • Minimum distance of illuminated objects 0.5 meters (1’ 8”)
  • Minimum distance from flammable materials 0.2 meters (8”)
  • Fuse T8A – 250V
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans
• Compliance:
  • CE: conforms to the European Directives
  • UKCA: conforms to UK Regulations
  • EAC: conforms to EurAseC Regulations
  • cMETus Listed
• Weight - Size:
  • 5.3 Kg (11.6 lbs)
  • 600mm x 172mm x 74mm
