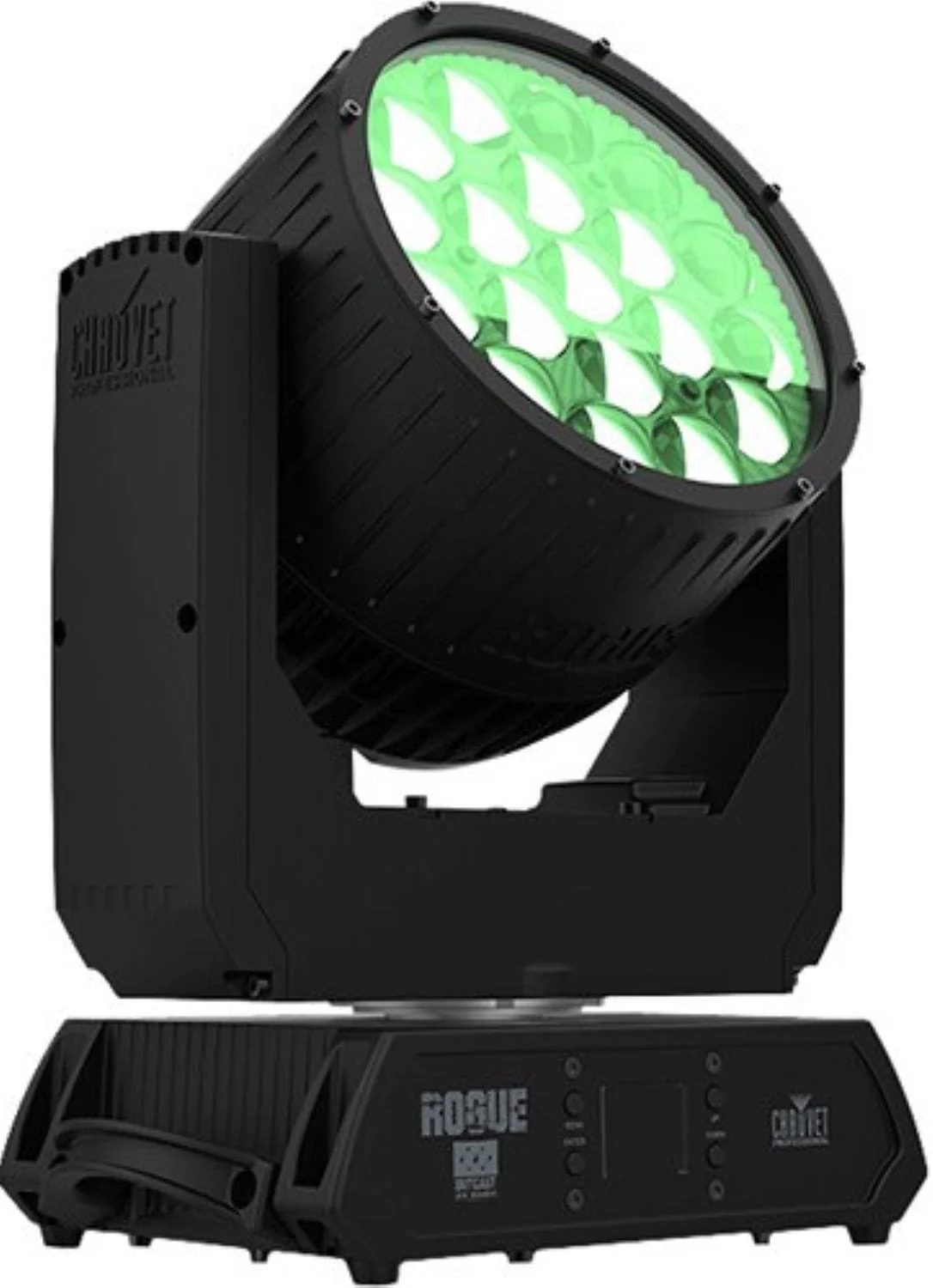

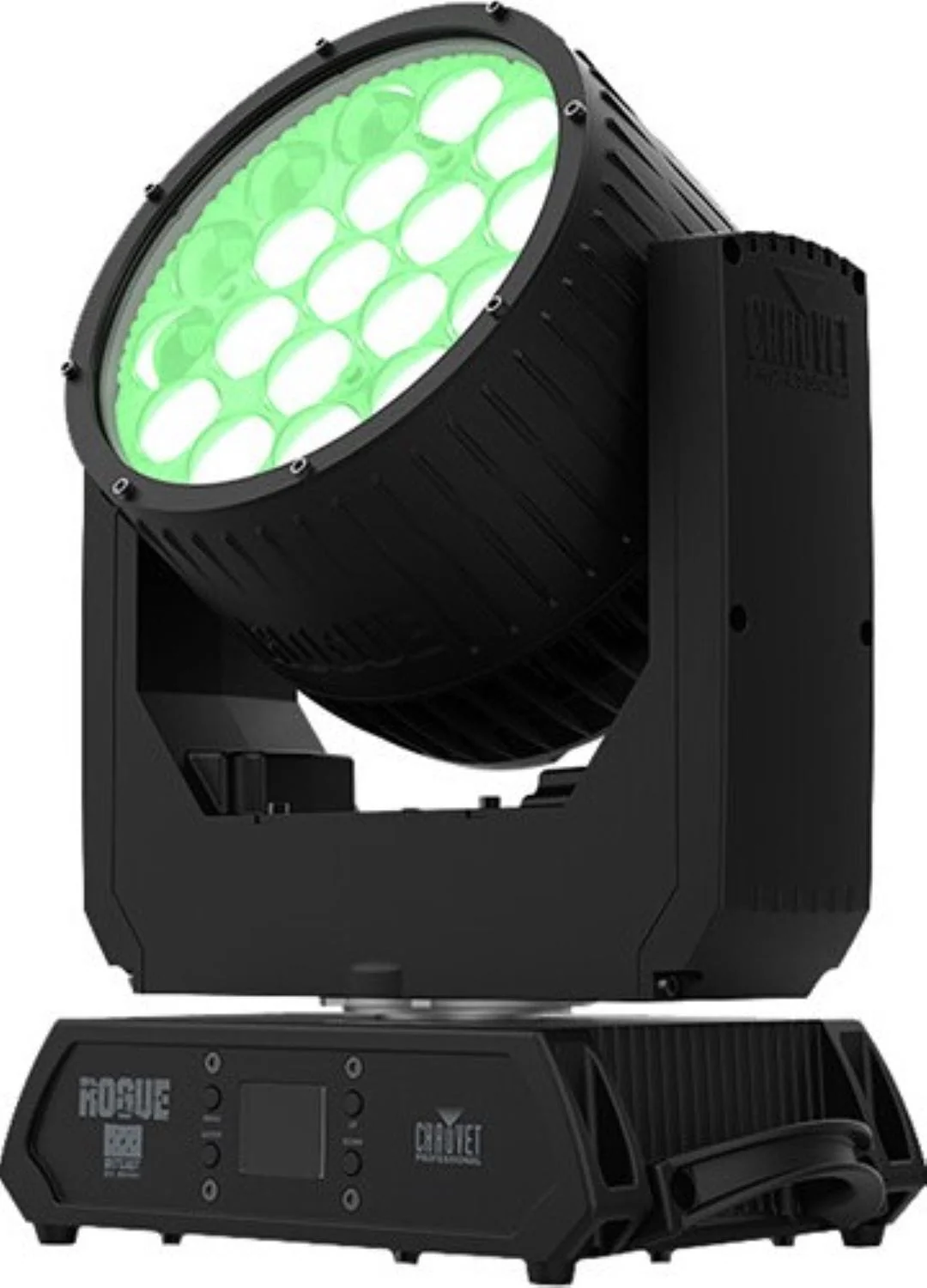

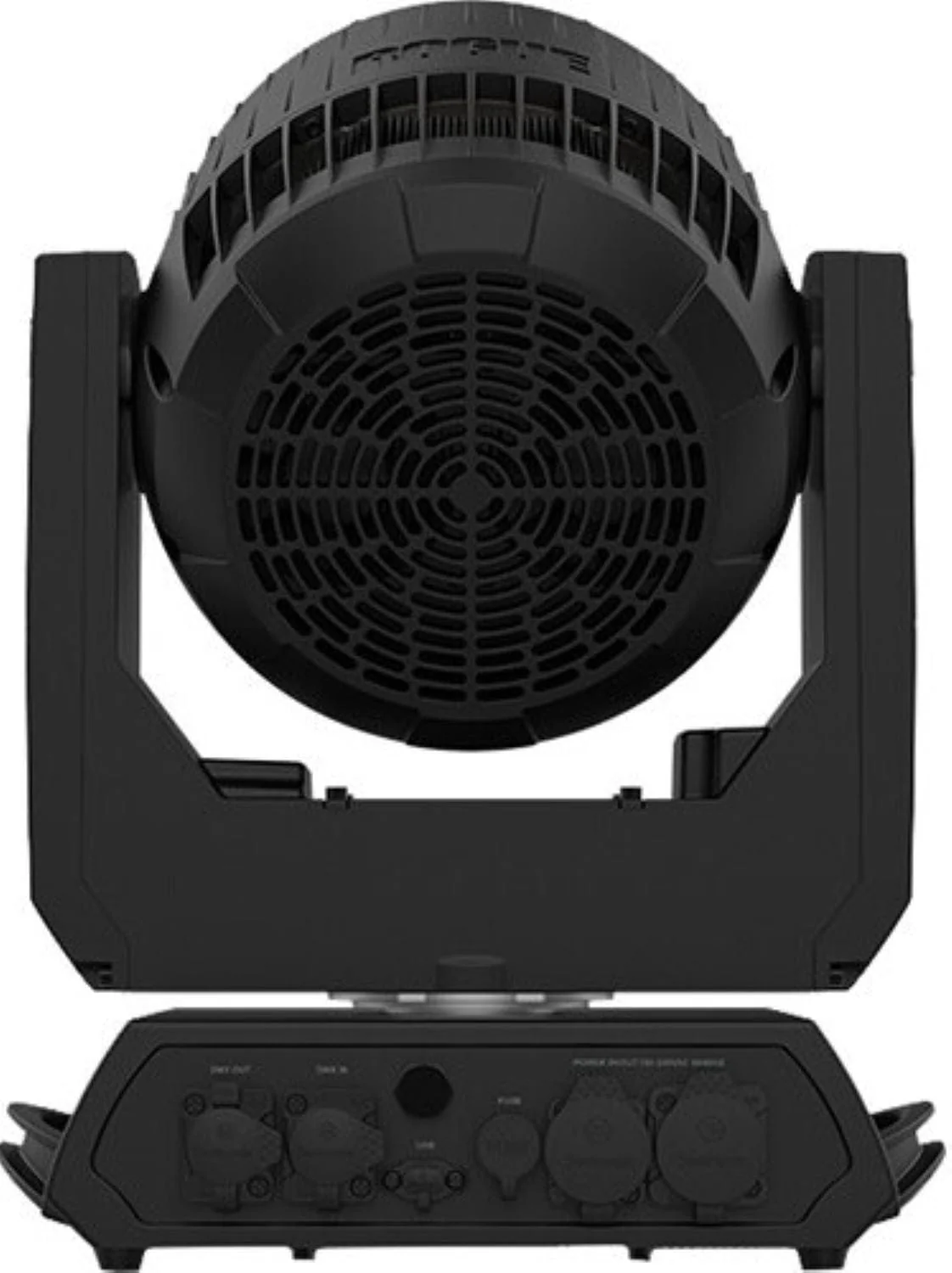

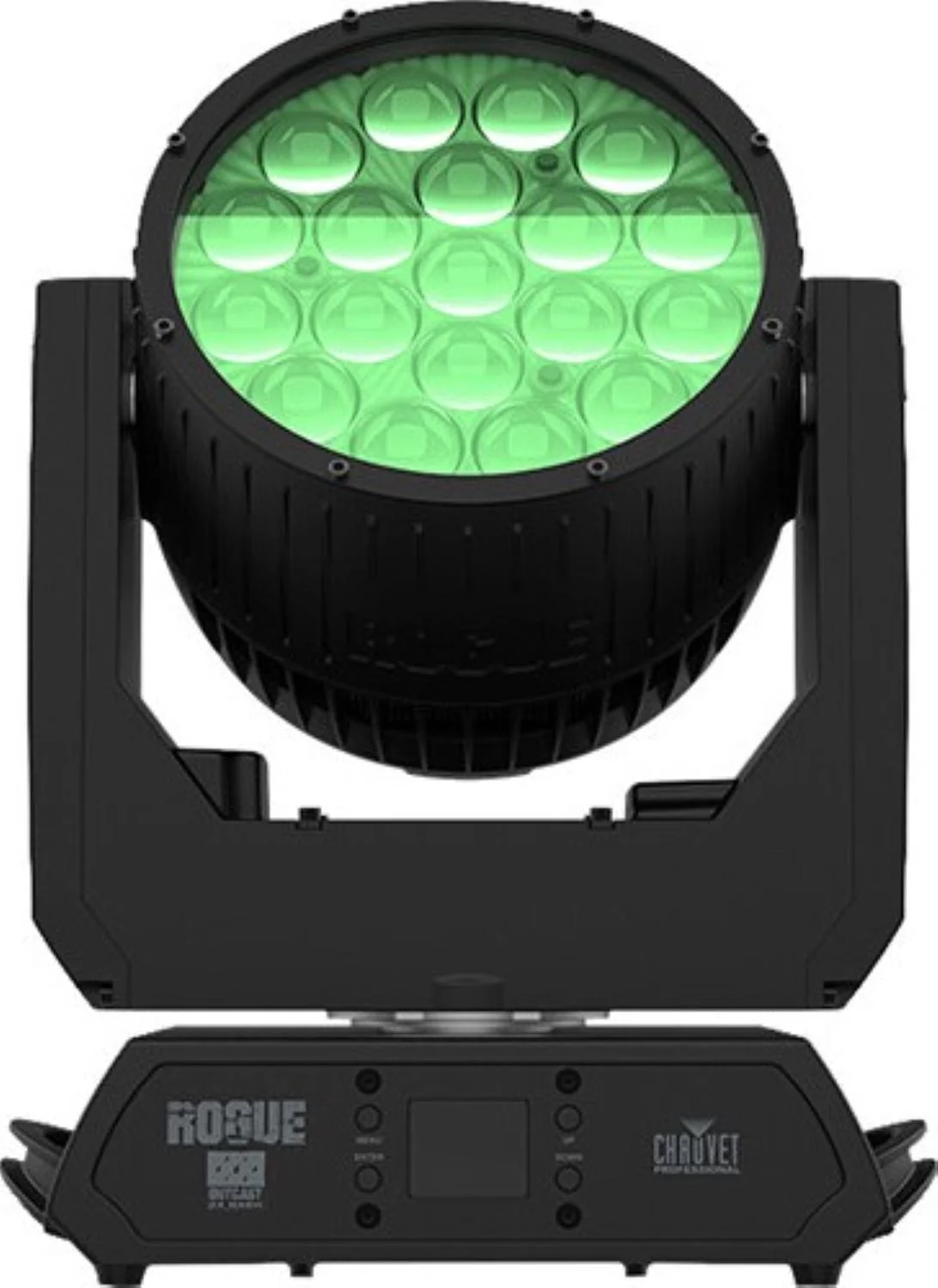

ChauvetPro ROGUEOUTCAST2XWASH Rogue Outcast 2X Wash IP65-Rated Moving Head Light

ChauvetPro ROGUEOUTCAST2XWASH Rogue Outcast 2X Wash IP65-Rated Moving Head Light

Chauvet Professional's Rogue Outcast 2X Wash is a powerful and versatile lighting solution that is perfect for a wide range of indoor and outdoor applications. With a lightweight, IP65-rated design, this wash can be easily hung and positioned to illuminate any space with its wide zoom range of 8° to 66° and color temperature range of 2800 to 10000 K. The durable alloy housing ensures that it can withstand the demands of any situation, while the selection of simple to complex DMX personalities allows for complete customization. The wash features 19 bright 25W RGBW quad-LEDs occupying 5 pixel-mappable zones, which create beautiful color blending and fades thanks to 16-bit master and individual dimming. And for those using it on camera, the user-selectable calibrated white ensures the perfect shot every time.

Features:

• Fully featured IP65-rated RGBW LED yoke wash fixture
• Durable and lightweight aluminum/magnesium alloy body
• Smooth fades with 16-bit individual color and master dimming
• 8° to 66° zoom
• 19 RGBW LEDs, 25W each
• 5-pin DMX input/output connections
• 5 zones of LED control for pixel mapping control
• Fast, smooth pan and tilt movement
• RDM enabled for remote addressing and troubleshooting
• Selectable PWM options for camera operation
• User selectable calibrated white, 7500K default calibration
• 6 distinct dimming modes for advanced control
• Easy-to-read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility
• USB-C port for uploading software

Specifications:

• Optical:
  • Light Source: 19 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • Beam Angle: 8° to 36.1°
  • Field Angle: 11.8° to 53°
  • Cutoff Range: 17.5° to 66.1°
  • Zoom Range: 8° to 66.1°
  • Lumens Output: 6,258
  • Illuminance (11.8°): 8,713 lux @ 5 m
  • Illuminance (53°): 694 lux @ 5 m
  • Selectable PWM: 600Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
• Dynamic Effects:
  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Curves: 6
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No
• Connections:
  • Power Connection: Bare ended to Seetronic IP65 PowerKon
  • Power Input: Seetronic IP65 PowerKon
  • Power Output: Seetronic IP65 PowerKon
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5' (1.5 m)
• Control:
  • Control Protocol: DMX, RDM
  • DMX Channels: 15, 17, 22, 33, 54, or 56
  • Modes/Personalities: 8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)
• Electrical:
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
  • Power and Current: 291 W, 2.47 A @ 120 V, 60 Hz
  • Power and Current: 284 W, 1.41 A @ 208 V, 60 Hz
  • Power and Current: 282 W, 1.28 A @ 230 V, 50 Hz
• Certifications/Qualifications:
  • CE, MET, FCC, UKCA
  • IP Rating: IP65 (temporary wet location)
• Physical:
  • Dimensions: 11.92" x 8.58" x 14.1" (303 x 218 x 361 mm)
  • Weight: 23.4 lb (10.6 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum/magnesium alloy, High-impact flame-retardant polymer
