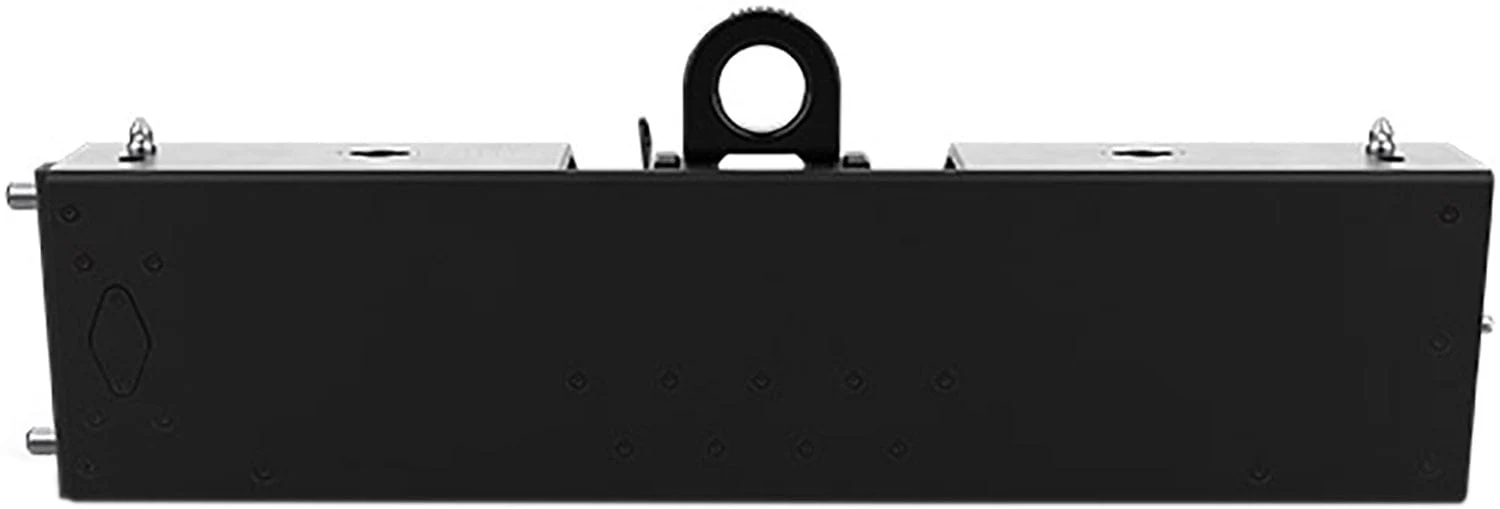

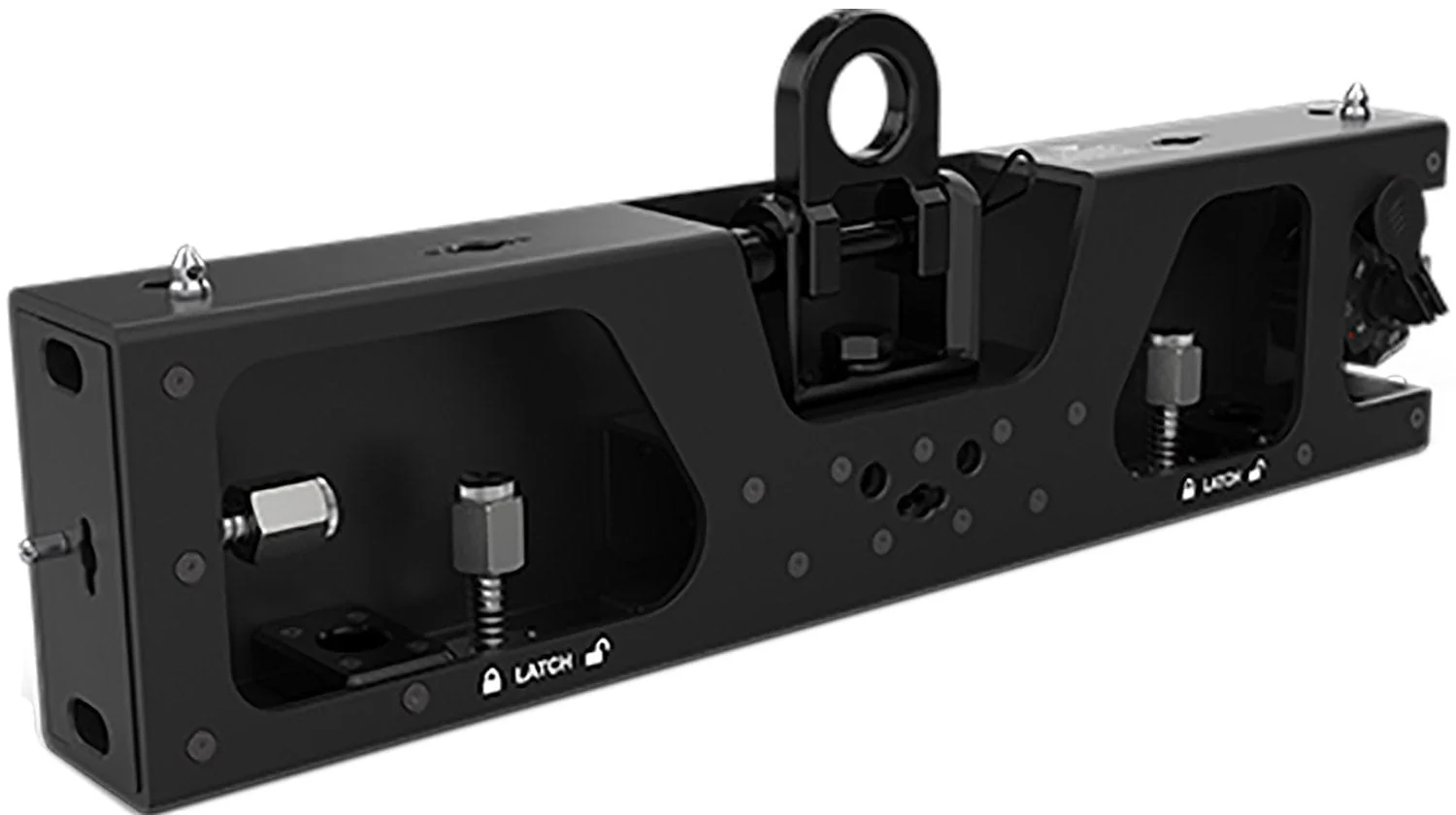

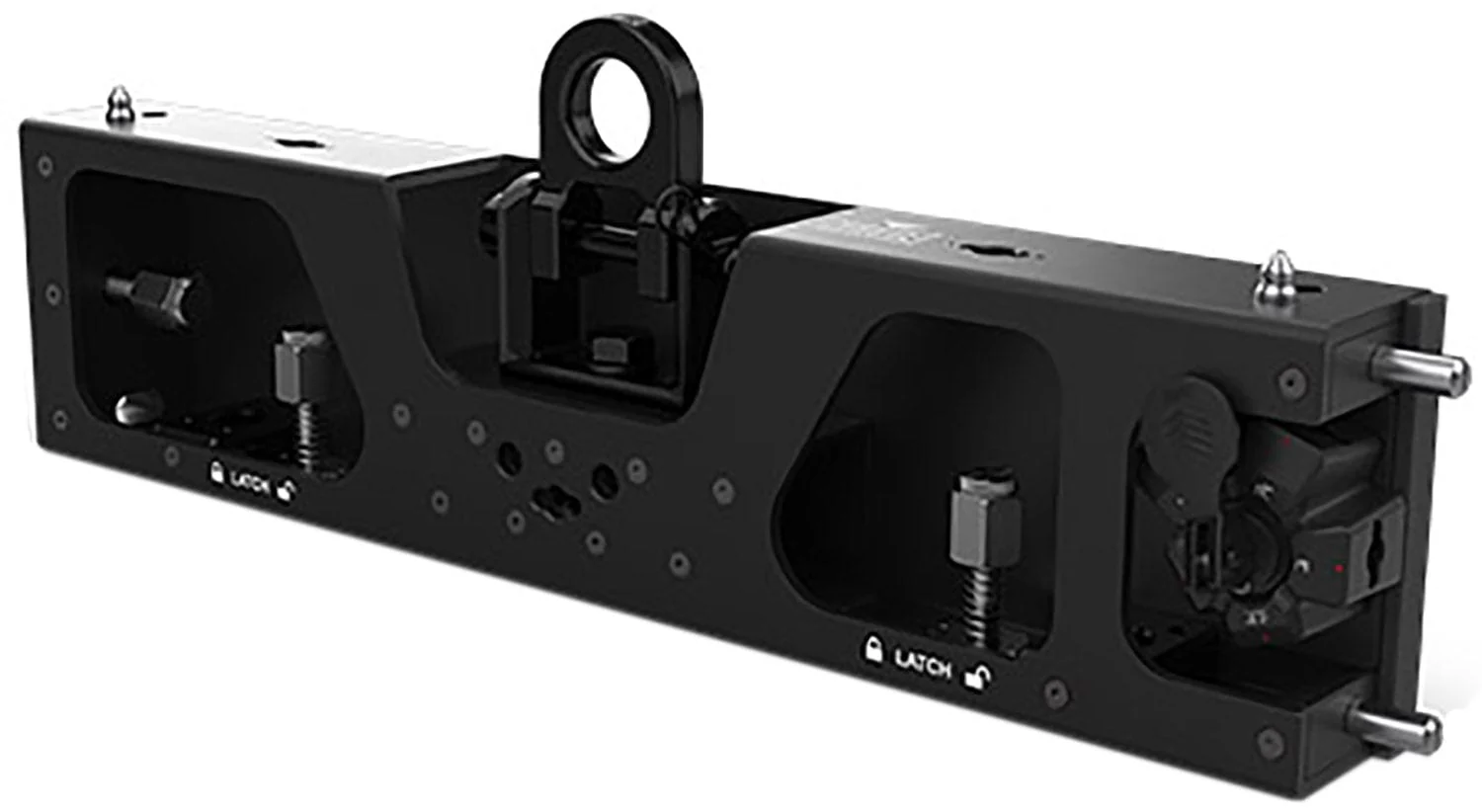

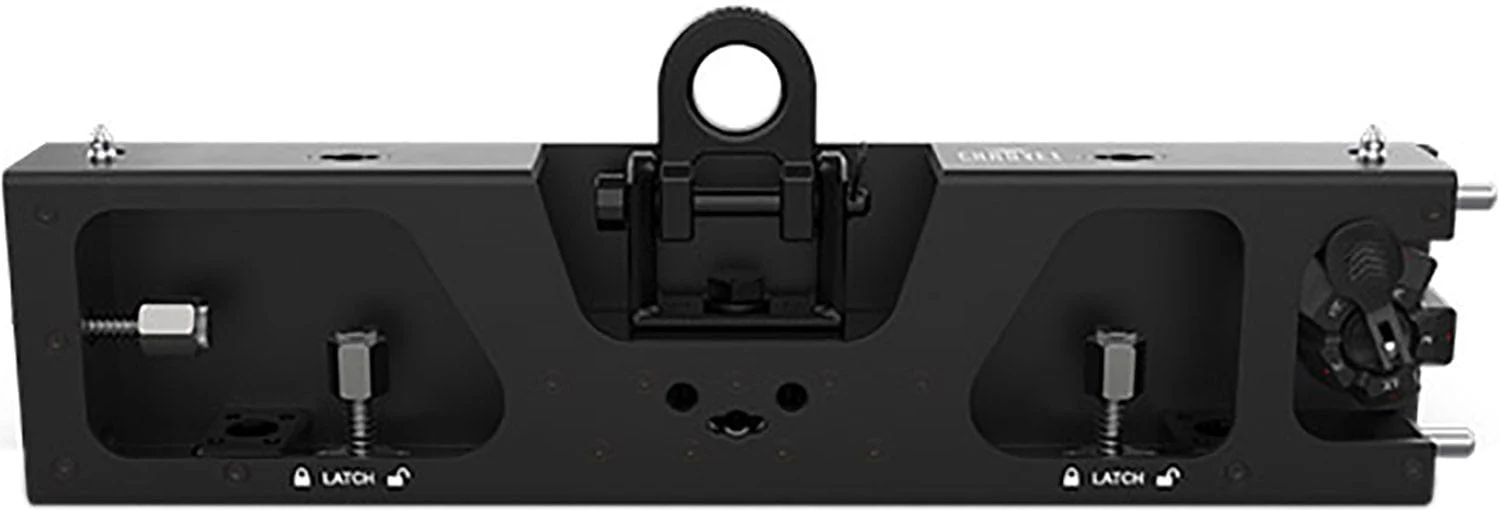

ChauvetPro REMRB50CMIP IP Rated REM Series Video Panel Rig Bar with 50cm / 19.7-Inch Curving

ChauvetPro REMRB50CMIP IP Rated REM Series Video Panel Rig Bar with 50 centimeter / 19.7-Inch Curving

REM-RB100CM IP and REM-RB50CM IP Curve are rugged IP65-rated rig bars that perform dual functions. They may be used to hang the video wall overhead, and also for ground stacking purposes, by adding in the GROUNDSUPPORT2KIT.

Features:

• REM Rig Bar, used for both overhead hanging and ground stacking
• Works with CHAUVET REM video panels
• Equipped hoist ring supports standard rigging hardware for overhead hanging (1/2” and 5/8” shackles)
• Included Clamp attachment bracket (DRB-CTC) allows for direct connection using M12 bolts in clamps using TRUSST CTC-50HC

Specifications:

• Physical:
  • Dimensions: 19.67 x 2.36 x 4.72 in (499.6 x 60 x 120 mm)
  • Weight: 16.8 lb (7.62 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum extrusion, stainless steel
• Clamp:
  • Load Capacity: (hanging): 1,760.6 lb (345 kg)
  • Load Capacity: (stacking): 1,752.70 lb (795 kg)
  • Recommended Shackle Sizes: 1/2”, 5/8”
  • Certifications: IP Rating: IP65, temporary outdoor/wet use
• Required Accessories (not included): Compatible Mounting Options: Shackle (Sizes: 1/2”, 5/8”), Pipe Clamp (M12 threaded bolt)
