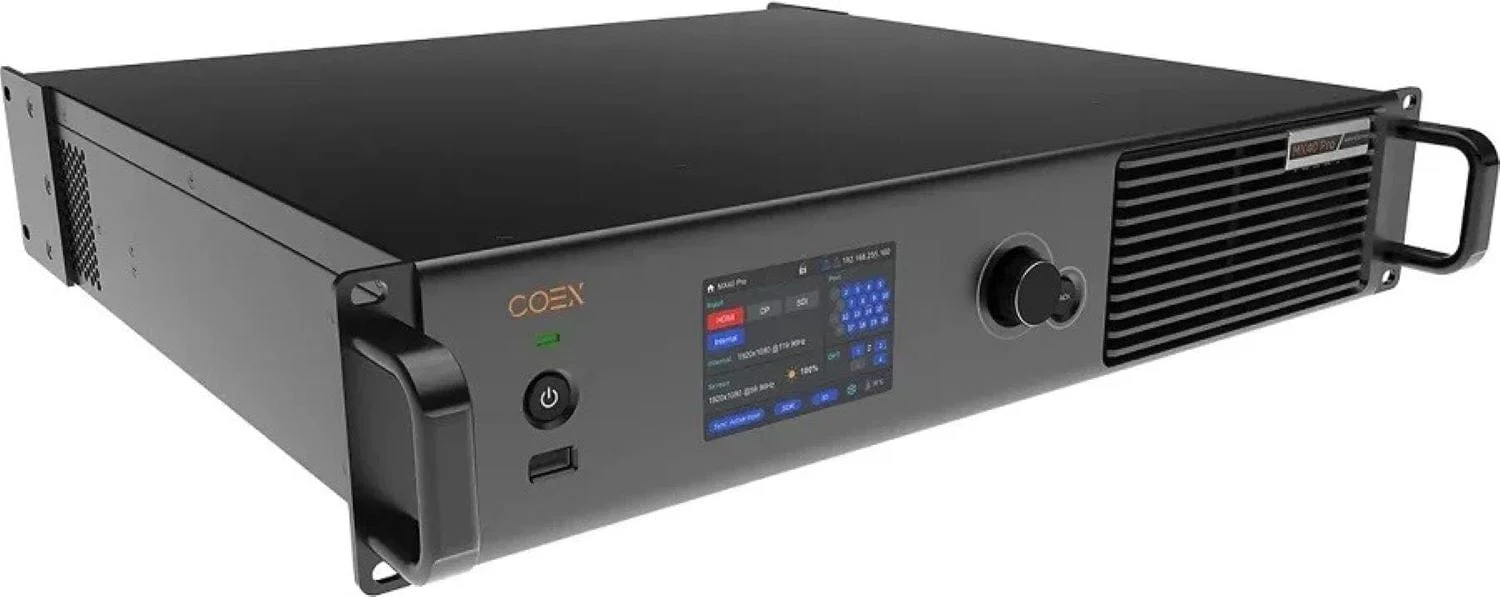

ChauvetPro NovaStar MX40 Pro Controller

ChauvetPro NovaStar MX40 Pro All-in-one LED Display Controller

NovaStar MX40 Pro is an all-in-one LED display controller that integrates video processing and control in a high-performance solution for the most demanding live and on-camera applications. Its powerful VMP display control software brings design, management and monitoring into one intuitive platform. Pair with REM video panels to achieve a fast, low latency system offering a wide color gamut, high bit depths, precise color adjustment, adaptable frame rates and realistic immersion ideal for virtual production and broadcast environments, as well as offering 12G SDI and Fiber long-distance transmission capabilities essential for the world of events and touring.

Features:

• Large loading capacity of up to 8.8 million pixels
• A perfect fit with NovaStar A10s Pro receiving cards and VMP software
• Controller & processor with color adjustment system

Specifications:

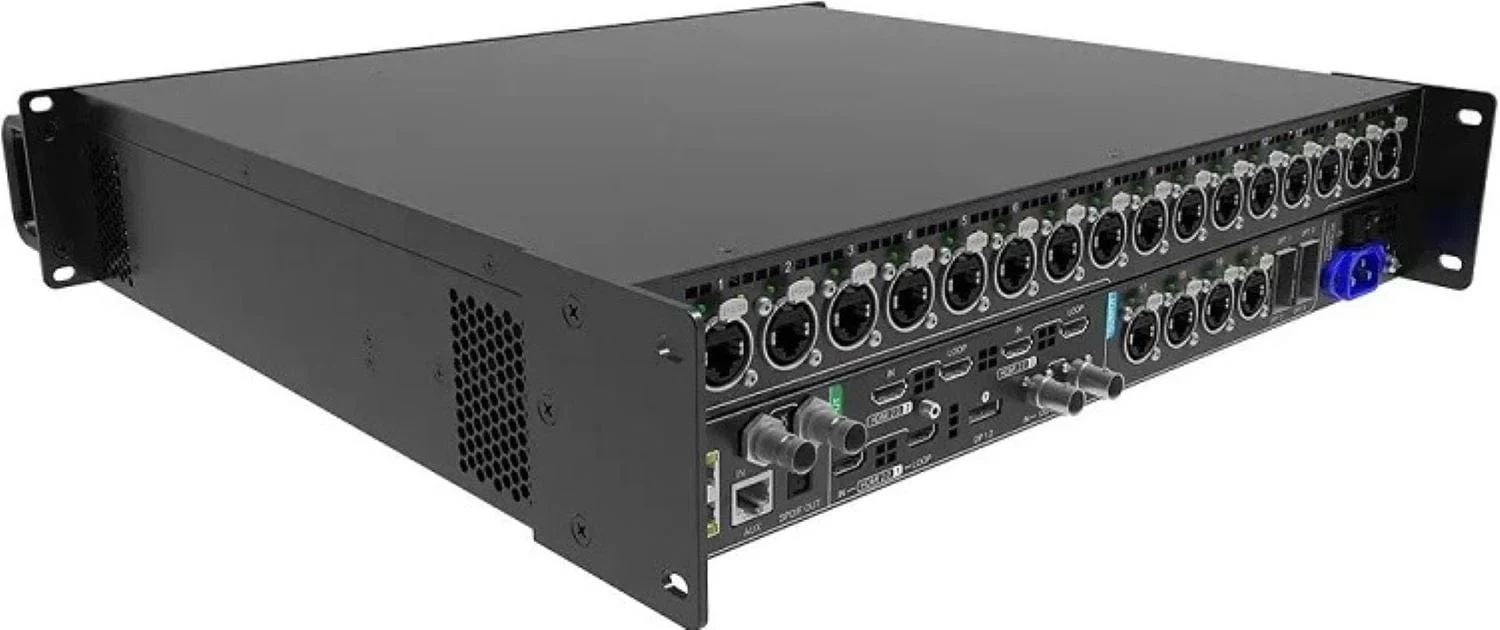

• Connectors:
  • Inputs:
    • (3) HDMI 2.0 In + Loop
    • (1) DP 1.2
    • (1) 12G-SDI In + Loop
    • (1) Genlock In + Loop
  • Outputs:
  • (20) Ethernet outputs
  • (4) 10G OPT outputs
• Control:
  • TFT menu display
  • (2) Ethernet ports
  • Genlock In + Loop
• Power & Current:
  • 100-240VAC, 50-60 Hz
  • Power consumption: 70W, 2A
  • Dimensions: 3.7" x 18.4" x 19"
  • Weight: 13 lbs
• General Specs:
  • Loading capacity: 8.8m pixels
  • Max W/H: 10,240 pixels
  • XR functions
  • LED image booster 2.0
  • Dynamic booster
  • Full grayscale calibration
  • Low latency (< 1 ms)
  • HDR functions
