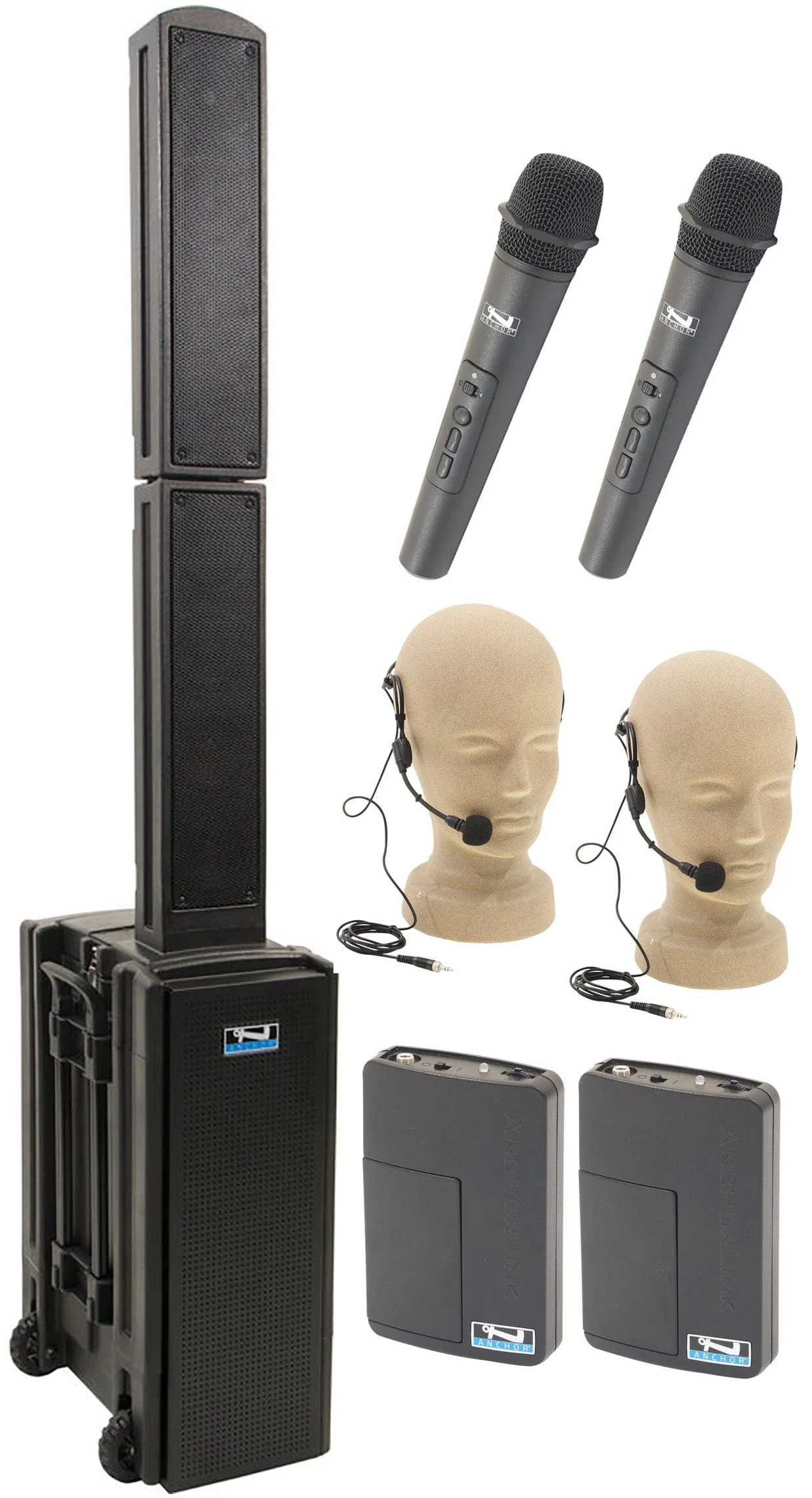

Anchor Audio 815425 Beacon 2 System X4 - Anchor Air / 2x Handheld / 2x Headband Wireless Microphones

Anchor Audio 815425 Beacon 2 System X4 - Anchor Air / 2x Handheld / 2x Headband Wireless Microphones

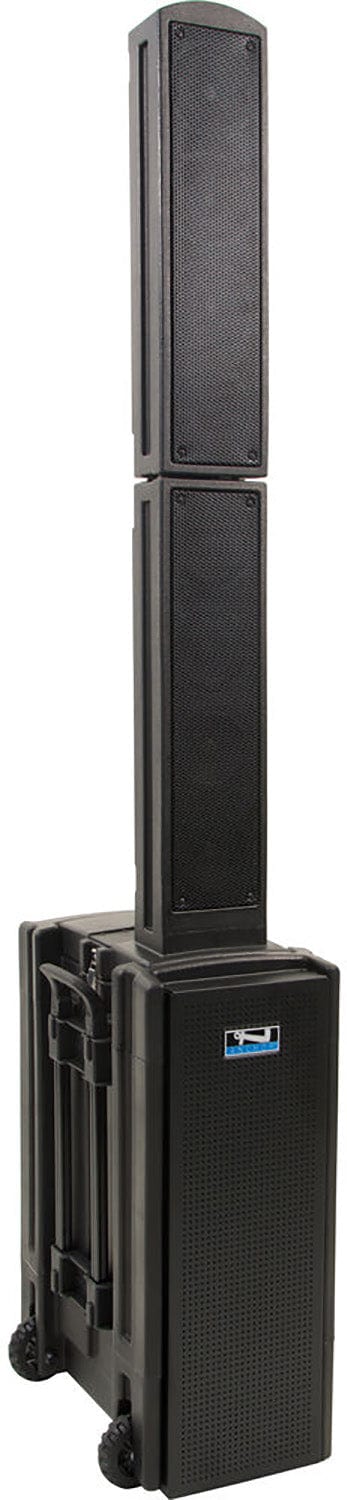

1x Anchor Audio BEA2-XU4 Beacon 2 Portable Line Array Tower with Bluetooth, AIR Transmitter & Two Dual Mic Receivers

The Anchor Audio BEA2-XU4 is a Beacon 2 portable line array tower designed for versatility and powerful amplification. Equipped with Bluetooth, an AIR wireless transmitter, and two dual wireless microphone receivers, this system delivers exceptional performance for crowds of up to 2,500 people in sports venues, educational facilities, and various indoor and outdoor events.

With a robust 150W rated output power, the BEA2-XU4 drives eight 4" neodymium speakers and three 8" woofers paired with a neodymium compression driver to achieve an impressive 120 dB SPL. This powerful combination ensures clear, high-quality sound that captivates any audience, making it the ideal choice for your next event.

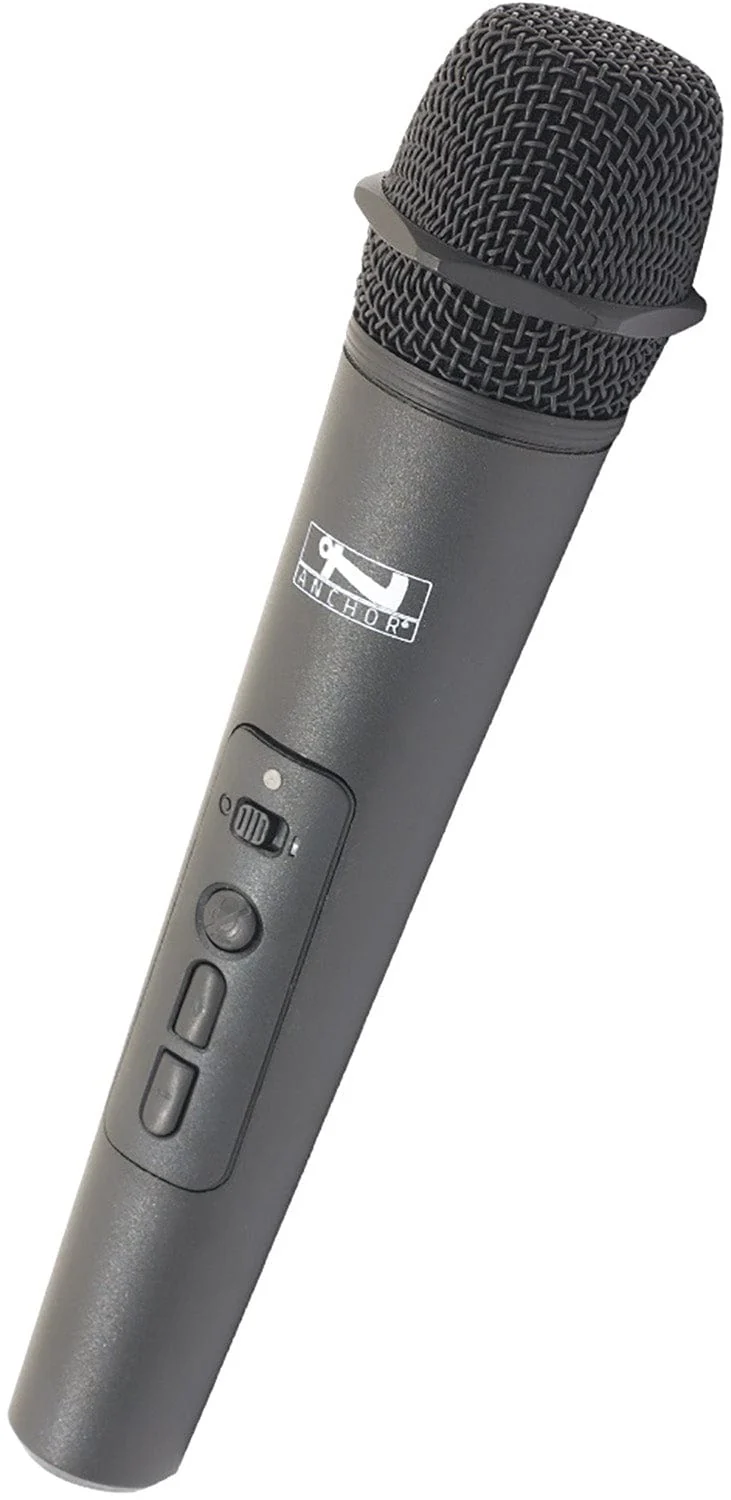

2x Anchor Audio WH-LINK Wireless Handheld Microphones

The WH-LINK is a wireless handheld microphone with a sleek and lightweight design. It operates on the 1.9 GHz frequency. The WH-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries.

The WH-LINK handheld microphone is used with the AnchorLink series.

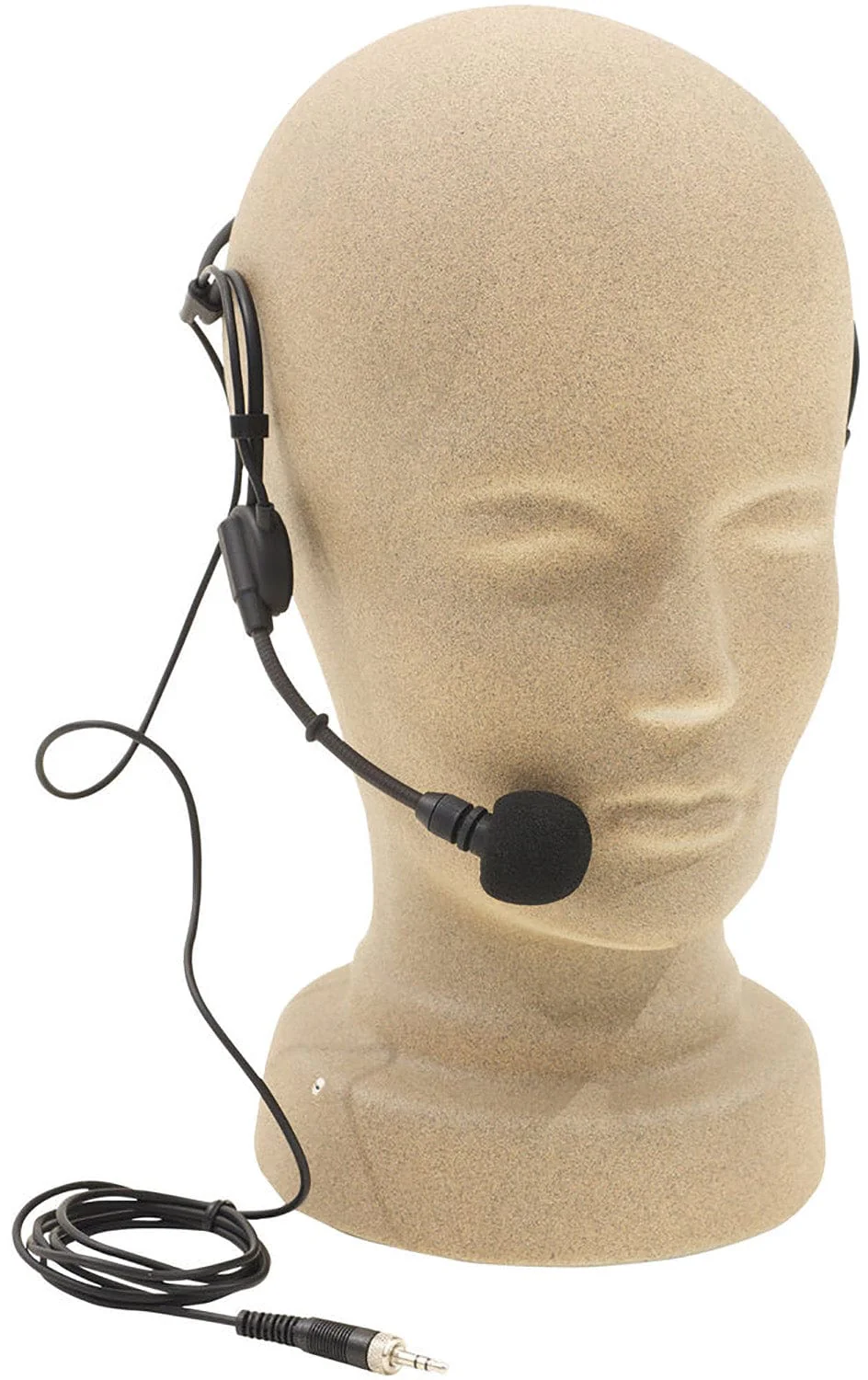

2x Anchor Audio HBM-LINK Headband Mic with 3.5mm Plug

The HBM-LINK follows your head when turned and flawlessly tracks your voice. Wear it around the back of head and over your ears, so the microphone is resting right in front of your mouth. The headband microphone has a 3.5 mm connector plug.

For a handsfree, wireless experience, use it with a beltpack transmitter such as the WB-LINK.

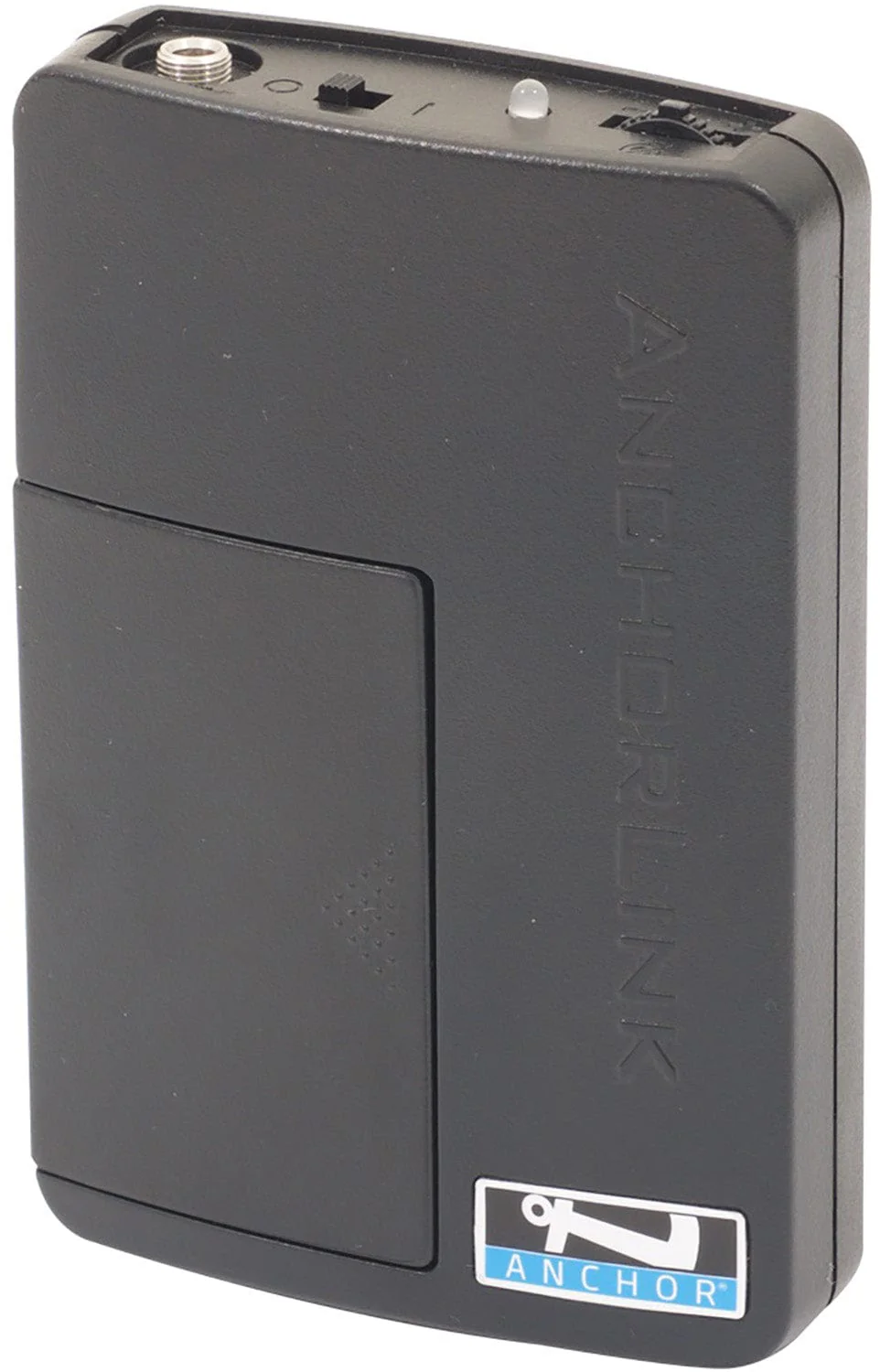

2x Anchor Audio WB-LINK Wireless Beltpack Transmitter

The WB-LINK is a wireless beltpack transmitter with a 3.5 mm connector plug. It operates on the 1.9 GHz frequency. The WB-LINK is powered by two AA batteries and operates approximately 6 - 8 hours with fresh batteries. Use the beltpack with the AnchorLink series.

For a handsfree, wireless experience, the WB-LINK can be used with microphone elements such as the HBM-LINK, CM-LINK, EM-LINK, and LM-LINK.

Features:

• Anchor Audio BEA2-XU4 Beacon 2 Portable Line Array Tower:
  • Reaches crowds of up to 2500 people
  • Integrated handle and rolling wheels
  • Built-in Bluetooth receiver
  • AIR wireless transmitter
  • Two dual wireless mic receivers
  • 150W of rated output power
  • 8 x 4" speakers, 3 x 8" woofers
  • Integrated mixer & 2-band equalizer
  • Built-in rechargeable batteries
  • XLR, 1/4" & 3.5mm inputs, 1/4" output
• Anchor Audio WH-LINK Wireless Handheld Microphone:
  • Classic Wireless Handheld Microphone
  • For AnchorLink-Equipped PA Systems
  • Volume and Mute Controls
  • One-Time Pair Function
  • Up to 8 Hours of Operation
  • 1.9 GHz Wireless Frequency Range
  • Automatic Frequency Hopping
  • Lightweight Design
  • Powered via 2 x AA Batteries
• Anchor Audio HBM-LINK Headband Mic with 3.5mm Plug:
  • For Hands-Free Presentations
  • Use with WB-LINK Beltpack Transmitter
  • Cardioid Polar Pattern
  • 3.5mm Connector
• Anchor Audio WB-LINK Wireless Beltpack Transmitter:
  • For AnchorLink-Equipped PA Systems
  • 3.5mm Mic Input Connector
  • Accepts Lavalier and Headset Mics
  • Volume and Mute Controls
  • One-Time Pair Function
  • Up to 8 Hours of Operation
  • 1.9 GHz Wireless Frequency Range
  • Automatic Frequency Hopping
  • Powered via 2 x AA Batteries
  • Includes Belt Clip

Specifications:

• Anchor Audio BEA2-XU4 Beacon 2 Portable Line Array Tower:
  • Portable PA System:
    • Amplifier power rating:
      • 150 W (AC power)
      • 125 W (Battery power)
  • Speakers:
    • Full-range driver: 8x 4" / 10.2 cm
    • LF driver: 3x 8" / 20.3 cm woofer
    • Magnet: Neodymium
  • Performance:
    • Frequency response: 60 Hz to 15 kHz ±3 dB
    • Maximum SPL: 120 dB
    • Input sensitivity:
      • Lo-Z mic input: -52 dBV / 2.5 mVrms
      • Hi-Z mic input: -43 dBV / 7.5 mVrms
      • Aux input: -14 dBV / 200 mVrms
    • I/O impedance:
      • Hi-Z input: 10 Kilohms
      • Low-Z input: 1 Kilohms
      • Line output: 600 Ohms
  • Connectivity:
    • Audio I/O:
      • 2x Combo XLR-1/4" TRS balanced mic input
      • 1x 1/4" TS unbalanced line input
      • 1x 1/8" / 3.5 mm TRS unbalanced line input
      • 1x 1/4" TRS balanced line output
    • Phantom power: +12 V
  • Wireless:
    • Wireless transmission: 1.9 GHz
    • Max wireless range:
      • RF wireless: 300' / 91.4 m (line of sight)
    • RF frequency band: 902 to 928 MHz
    • Bluetooth power class: 1
  • Power:
    • Battery type: 2x Built-in rechargeable 12 V lithium-ion
    • Approximate battery life: 8 hours
    • Internal battery capacity: 7 Ah
    • AC input power: 100 to 240 VAC, 50 / 60 Hz
    • Power consumption: 250 W (max)
  • Physical:
    • Environmental resistance: No
    • Dimensions:
      • 28 x 11 x 18.5" / 71.1 x 27.9 x 47 cm (Collapsed)
      • 71.5 x 11 x 18.5" / 181.6 x 27.9 x 47 cm (Full assembly)
    • Weight: 43 lb / 19.5 kg
• Anchor Audio WH-LINK Wireless Handheld Microphone:
  • Frequency Band: 1.9 GHz
  • Wireless Range: 300' / 91 m, line of sight
  • Controls:
    • Volume
    • Mute
  • Power:
    • 2 x AA batteries
    • Operates up to 8 hours
  • Packaging Info:
    • Package Weight: 0.76 lb
    • Box Dimensions (LxWxH): 10.45 x 3.15 x 2.3"
• Anchor Audio HBM-LINK Headband Mic with 3.5mm Plug:
  • Polar Pattern: Cardioid
  • Frequency Response: 100 Hz to 18 kHz
  • Sensitivity: -84 dB ±3 dB
  • Connector: 1/8" / 3.5 mm
  • Cable Length: 4.0' / 1.2 m
  • Package Weight: 0.35 lb
  • Box Dimensions (LxWxH): 7.15 x 5.75 x 2.45"
• Anchor Audio WB-LINK Wireless Beltpack Transmitter:
  • Frequency Band: 1.9 GHz
  • Wireless Range: 300' / 91 m, line of sight
  • Input Connector: 1/8" / 3.5 mm
  • Controls:
    • Volume
    • Mute
  • Power:
    • 2 x AA batteries
    • Operates up to 8 hours
  • Packaging Info:
    • Package Weight: 0.35 lb
    • Box Dimensions (LxWxH): 5.85 x 4.2 x 1.2"
