Allen & Heath DX32 Expander

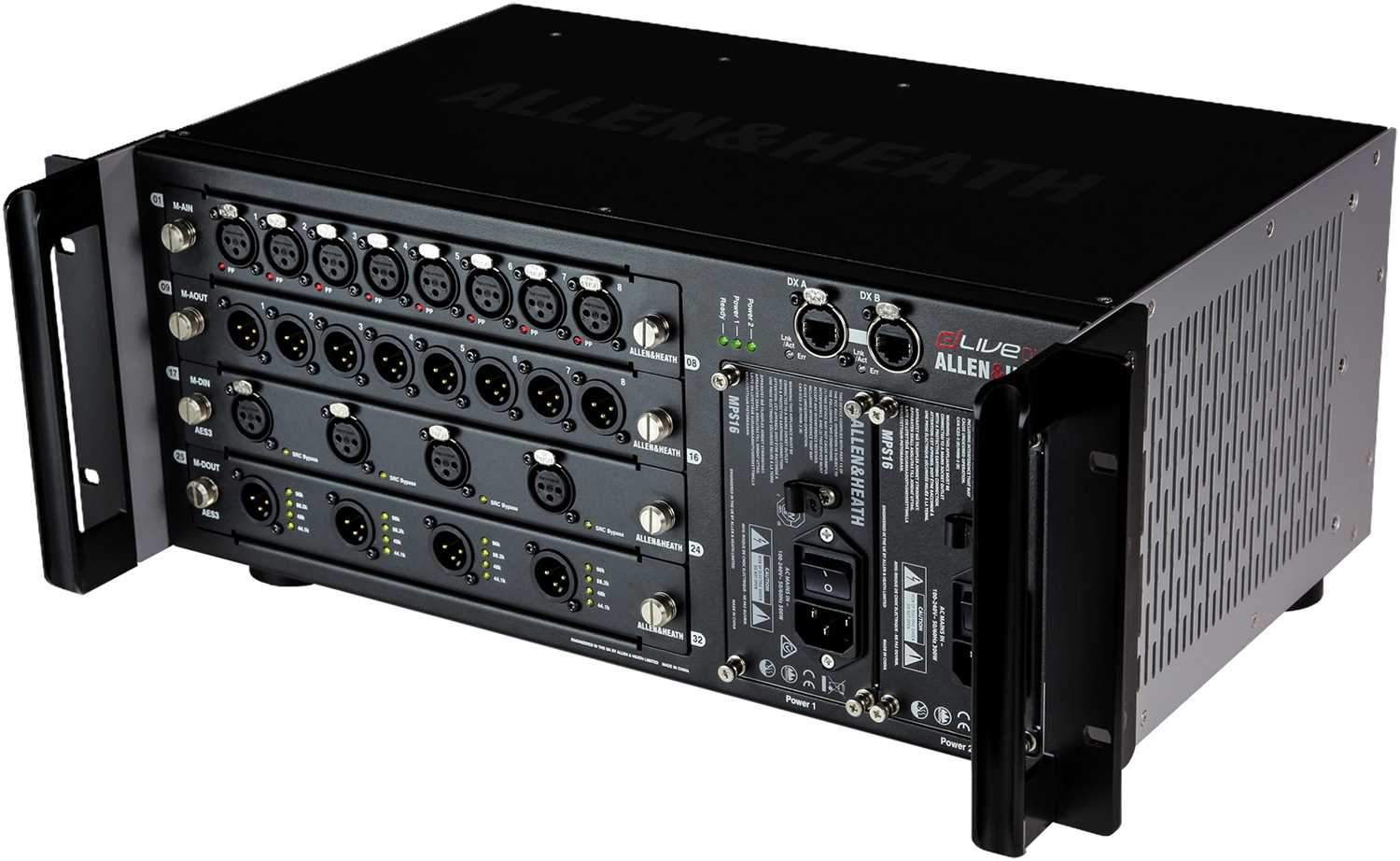

Allen & Heath DX32 96kHz Modular Expander

The DX32 Expander adds remote, modular I/O to a dLive system. It provides 4x 8 channel slots to fit a selection of analogue or digital I/O. Up to 2 DX32 Expanders can be connected to the MixRack, and a further DX32 can be connected to the Surface.

M-AIN8 recallable preamps with XLR connectors for balanced or unbalanced microphone and line level signals. Gain, Pad and 48V are digitally controlled within the preamp.

M-DIN4x stereo AES3 inputs on XLR with SRC (32kHz – 192kHz sampling rate). Sample Rate Conversion can be bypassed for 96kHz operation.

M-AOUT8 line level, balanced XLR outputs. The outputs are relay protected to prevent power on or off thumps.

M-DOUT4x stereo AES3 outputs on XLR (44.1kHz, 48kHz, 88.2kHz or 96kHz switchable).

Features:

• 4x 8ch modular design
• Redundant, hot swappable power supply
• Dual redundant Cat5 link to Surface or MixRack
• Rack-mounted or shelf / floor operation
• 3 Year Warranty

Control Surfaces:

• Allen & Heath Avantis Digital Mixer
• Allen & Heath Avantis Solo Digital Mixer
• Allen & Heath SQ-5 Digital Mixer
• Allen & Heath SQ-6 Digital Mixer
• Allen & Heath SQ-7 Digital Mixer
• Allen & Heath QU-5 Digital Mixer
• Allen & Heath QU-6 Digital Mixer
• Allen & Heath QU-7 Digital Mixer
• Allen & Heath SQ5+ Digital Mixer
• Allen & Heath SQ6+ Digital Mixer
• Allen & Heath SQ7+ Digital Mixer
