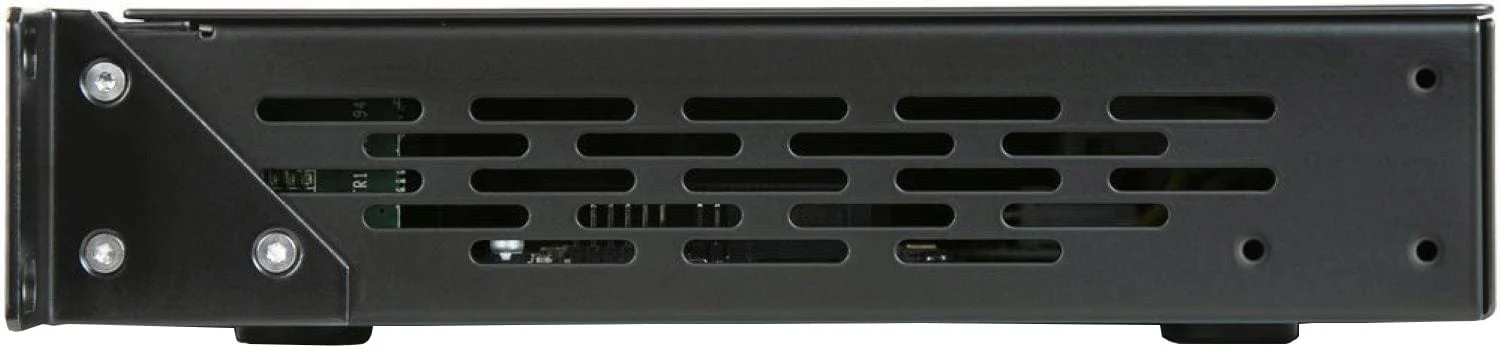

Allen & Heath DX012 Expander

Allen & Heath DX012 12out 96kHz Expander

DX012 provides remote output expansion for SQ, Avantis and dLive mixers, and for AHM audio matrix processors.

Features:

• 12 XLR outputs, configurable as:
  • 12 analogue
  • 8 analogue + 4 stere AES
  • 4 analogue + 8 stere AES
• DX A and B with locking Ethercon ports
• Redundant or cascade mode
• Switchable AES sample rate

Specifications:

• Digital Outputs: AES3 2 Ch XLR, 2.5V balanced, terminated 110Ω
• Sample Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz
• Analogue XLR Outputs: Balanced, Relay protected
• Output Impedance: <60Ω
• Nominal Output: +4dBu = 0dB meter reading
• Maximum Output Level: +22dBu
• Residual Output Noise: -95dBu (22Hz-22kHz)
• THD+N: -98dB (0dBu, 1kHz)
• Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
• Power:
  • Mains Voltage Operating Range 100-240V AC, 50/60Hz
  • Mains Power Consumption 35W max
• Dimensions and Weight (Width x Depth x Height x Weight): 482.6 x 48.2 x 214.7 mm x 2.95kg (19” x 1.9” x 8.5” x 6.5lbs)

Control Surfaces:

• Allen & Heath Avantis Digital Mixer
• Allen & Heath Avantis Solo Digital Mixer
• Allen & Heath SQ-5 Digital Mixer
• Allen & Heath SQ-6 Digital Mixer
• Allen & Heath SQ-7 Digital Mixer
• Allen & Heath QU-5 Digital Mixer
• Allen & Heath QU-6 Digital Mixer
• Allen & Heath QU-7 Digital Mixer
• Allen & Heath SQ5+ Digital Mixer
• Allen & Heath SQ6+ Digital Mixer
• Allen & Heath SQ7+ Digital Mixer
