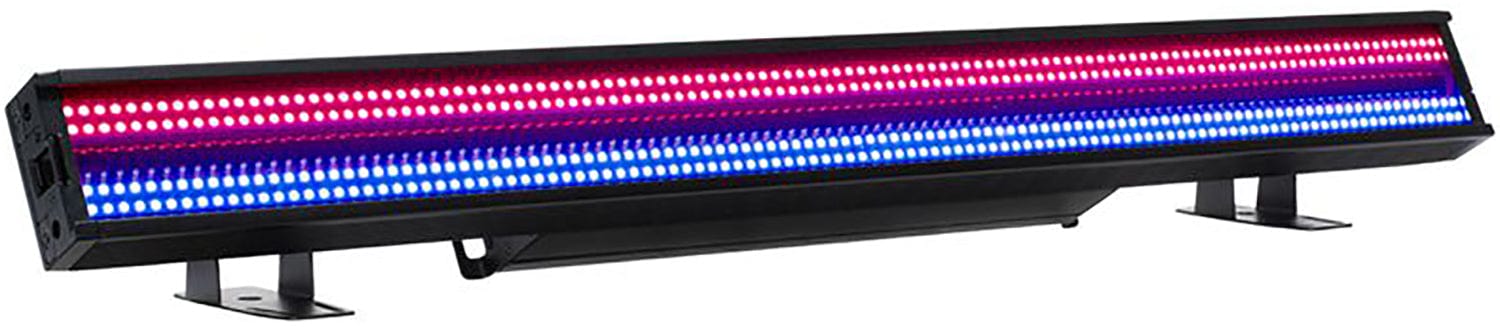

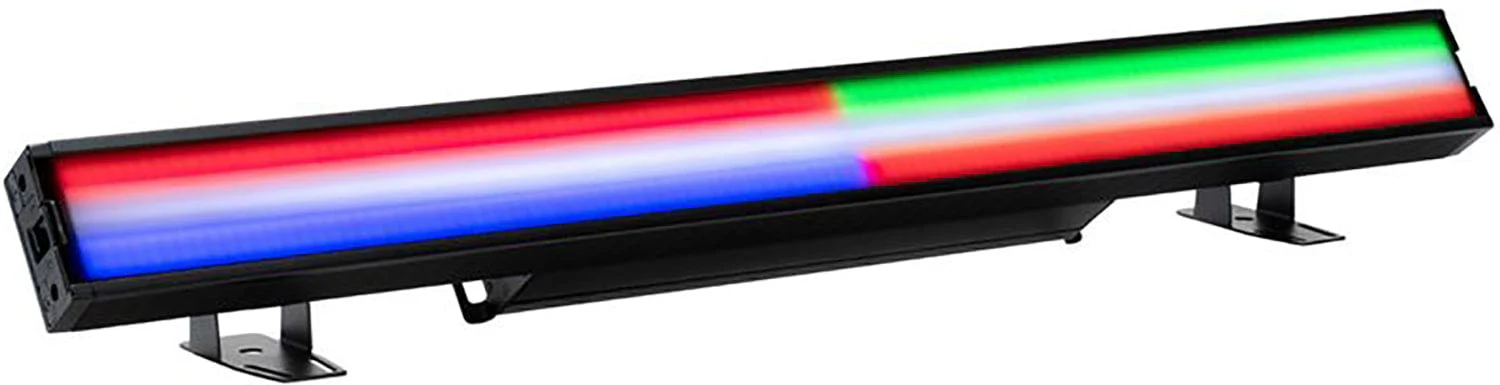

ADJ American DJ JOLT-BAR-FX2 IP20 RGBCW LED Bar Light with Wired Digital Communication Network

ADJ American DJ JOLT-BAR-FX2 IP20 RGBCW LED Bar Light with Wired Digital Communication Network

With added features over its predecessor, the Jolt Bar FX2 is a highly flexible fixture that can be used to create a wide variety of effects ideal for concert productions, festival stages and rental houses, as well as for permanent installation in large nightclubs.

Features:

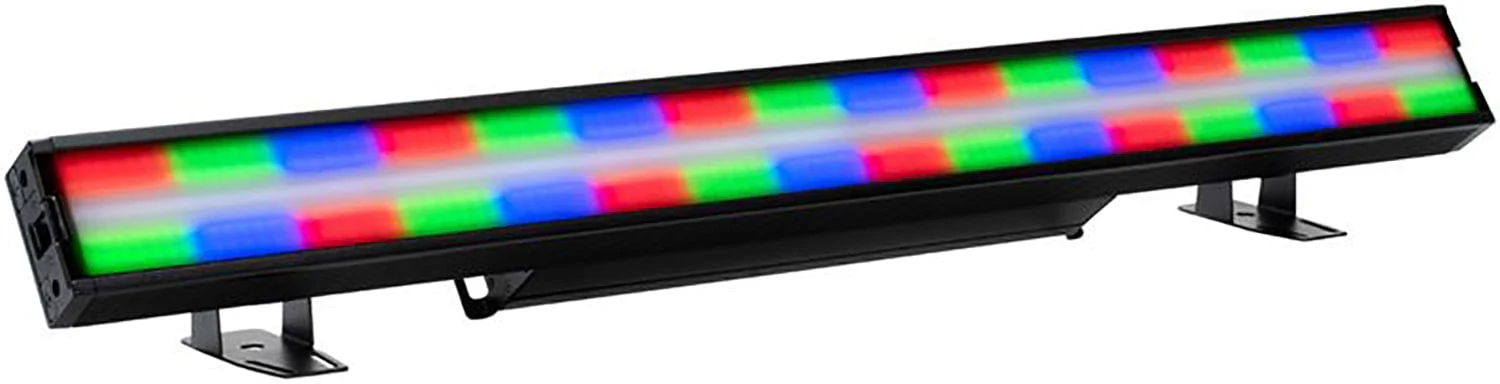

• 32 x RGB LED Zones
• 16 x Cool White LED Zones
• 25 Built-in RGB LED Program Macros
• 9 Built-in Cool White LED Program Macros
• Built-in Aria X2 wireless DMX

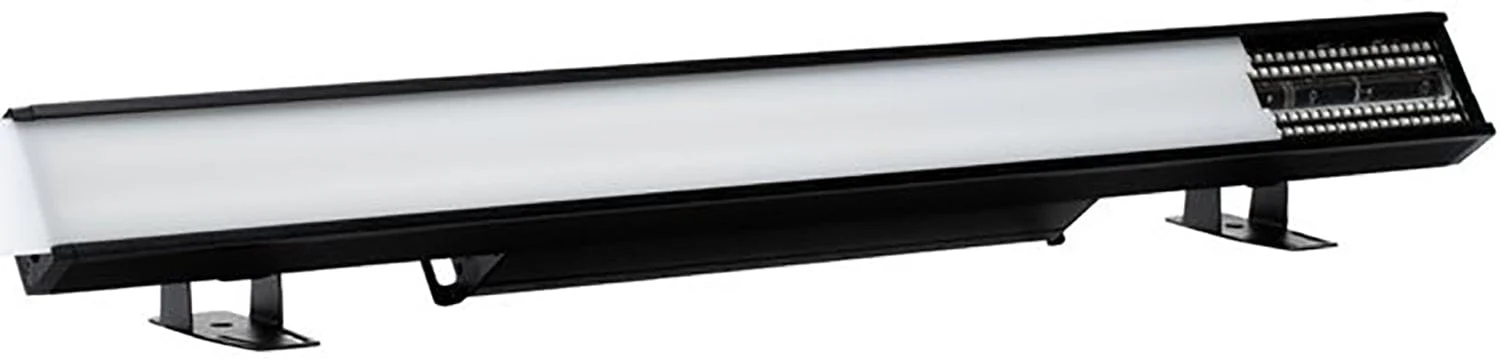

• Frost lens assembly
• Wide 117-degree beam angle

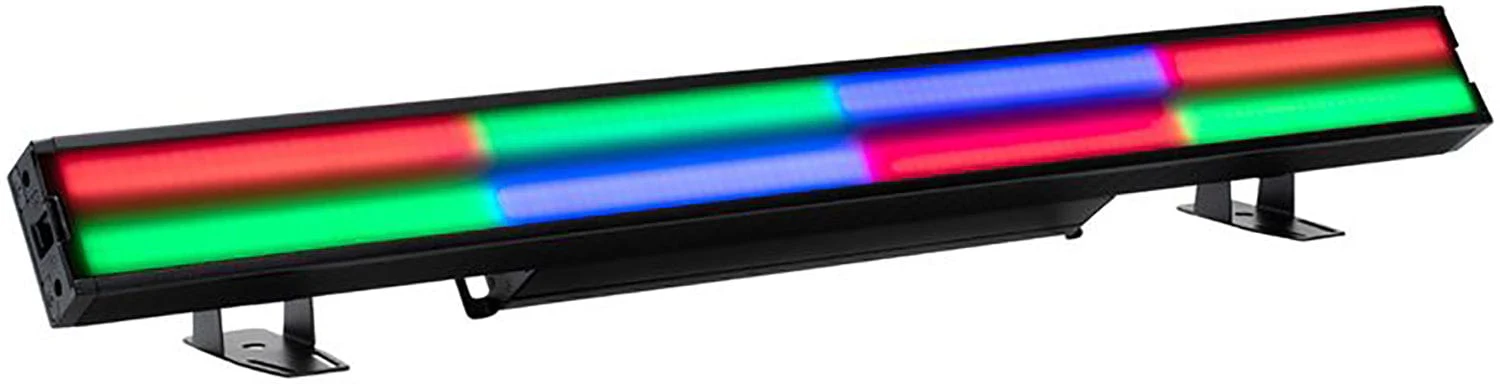

• Zone chase and strobe effects

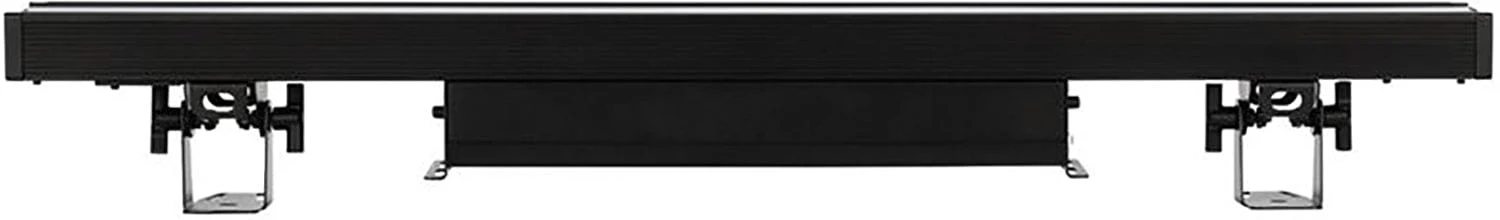

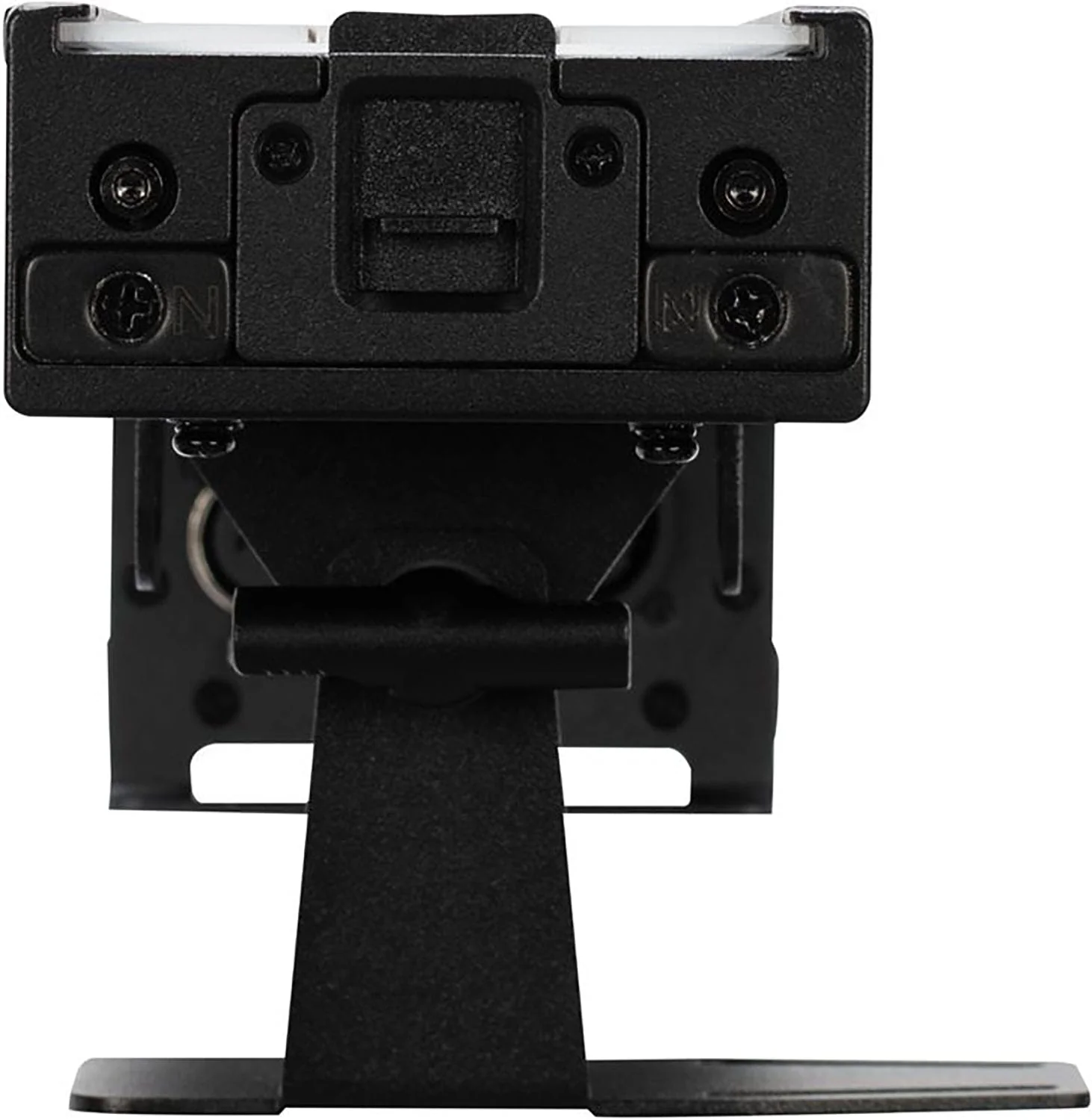

• 180 Degree Mounting bracket System

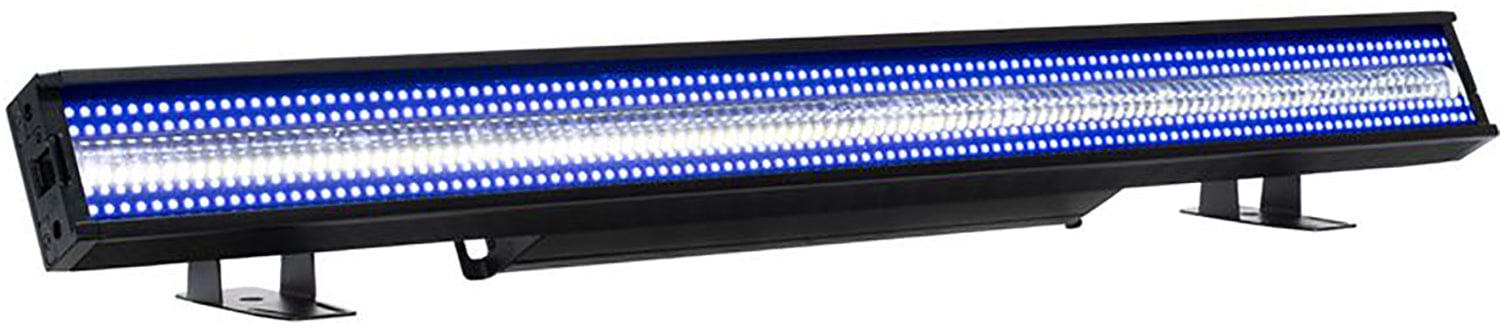

• 112 x 5-Watt cool white SMD LEDs
• 448 x .5-Watt RGB color mixing SMD LEDs

Specifications:

• Light Source:
  • 448 x 0.5W RGB SMD LEDs + 112 x 5W Cool White SMD LEDs
  • 78° Beam Angle
  • 117° Field Angle
  • Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White: 6900-7400K
  • CRI: 89
  • 50,000 Hour Average LED Life
• Control:
  • Control Protocol: DMX, Aria X2 and RDM
  • 12 DMX Modes: 6, 9, 13, 16, 18, 32, 38, 43, 64,78, 112 and 127 channels
  • Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)
  • 0-100% Smooth Dimming
  • Strobe, shutter & pulse control
  • Max Strobe Rate 25Hz. Min Strobe Rate: 0.35Hz.
  • With Wired Digital Communication Network

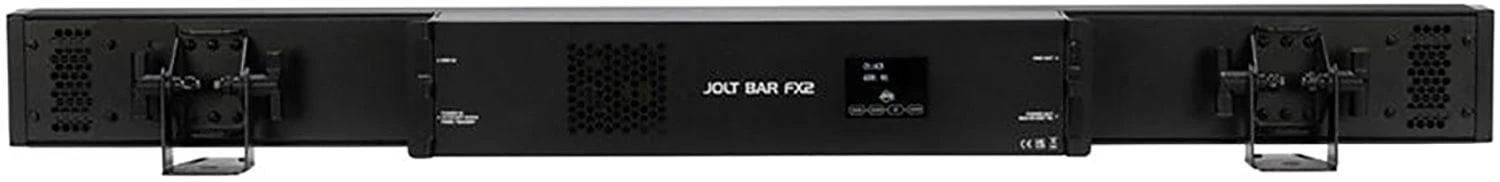

  • Display: OLED display with 4-button touch menu

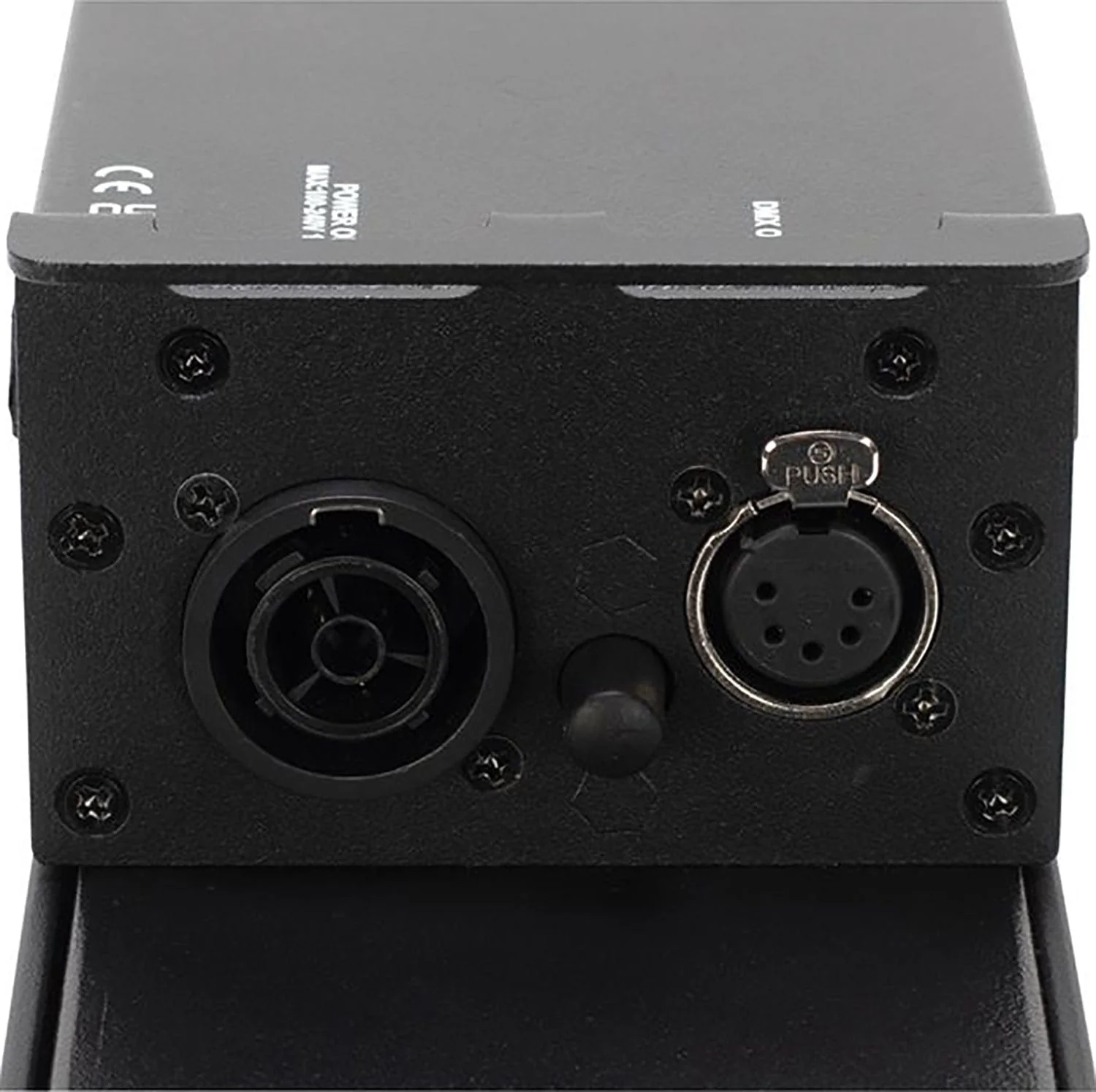

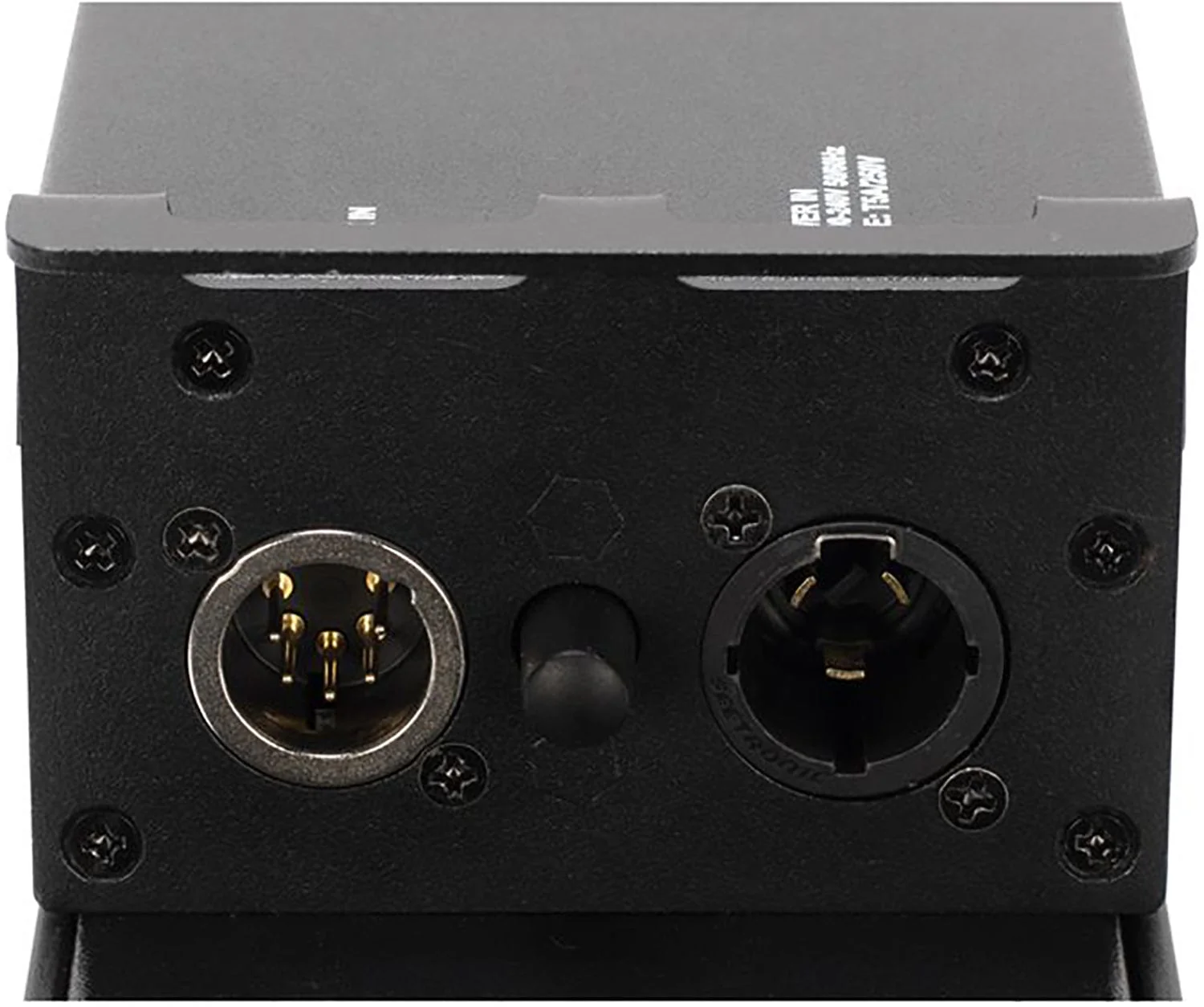

• Connections:
  • Data: Indoor locking 5-pin DMX In/Out
  • Power: Indoor locking power In/Out
• Electrical:
  • 100-240V 50Hz/60Hz (Auto Sensing)
  • Max Power Consumption: 214W @120V, 208W @230V
  • Max Power Link: 6pcs @120V, 12pcs @230V +
  • Fuse Protected: T5A/250V Glass Fuse (5*20MM)
• Dimensions / Weight:
  • Length: 4.07" (103.5mm)
  • Width: 39.4” (1000mm)
  • Height: 3.98” (101mm)
  • Weight: TBA lbs. ( TBA kg)
• What’s Included:
  • 1x Indoor, 6ft (1.83m) Power locking to Edison power cable (U.S.)
  • 1x Frost Filter
  • 2x Omega Receiver Brackets (Omega Clamps sold separately)
• Optional Accessories: 180mm Omega Bracket
• Approvals and Ratings:
  • CE
  • cETLus (Pending)
  • IP20
