Absen M2.9 2.9mm Indoor LED Tile 56-Pack with 1x HDX660 Processor Package. (150sq ft)

Absen M2.9 2.9mm Indoor LED Tile 56-Pack with 1x HDX660 Processor Package. (150sq ft)

Hanging and ground options available. Please contact the sales team for more information.

Package includes:

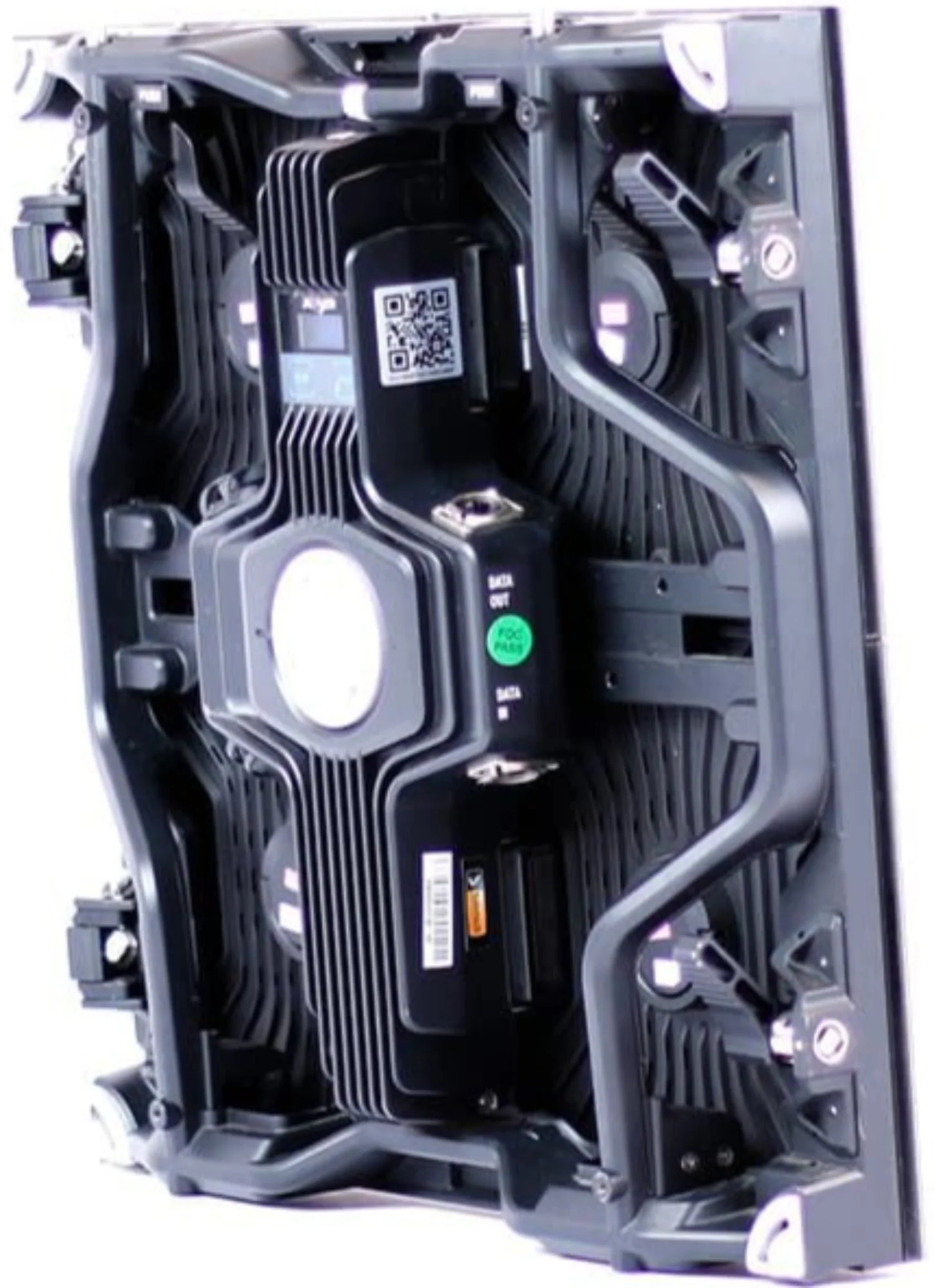

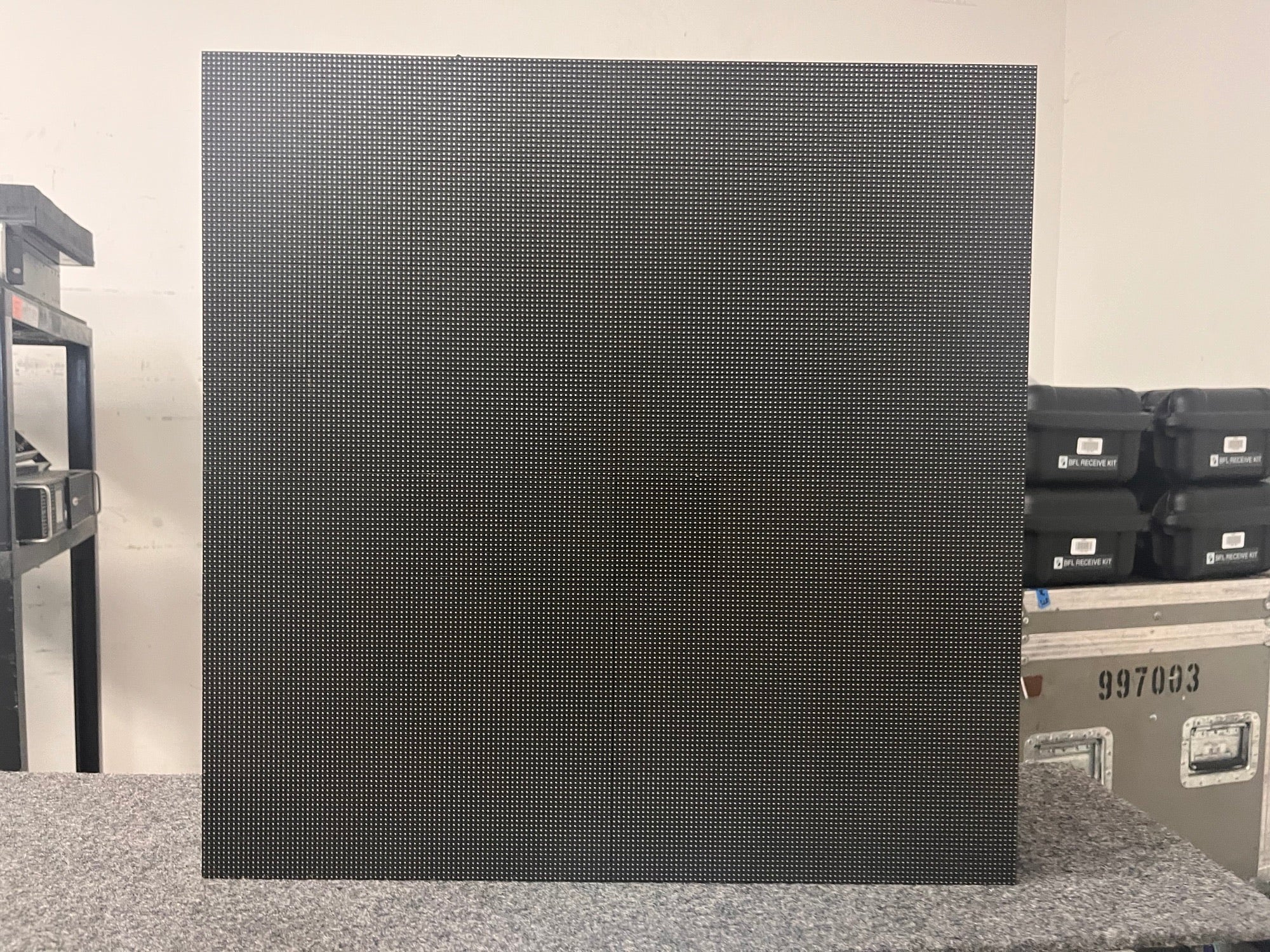

Absen M2.9 2.9mm Indoor LED Tile

Features:

• Patented “One Action” Locks - just pull to lock and push to release
• Integrated ±5° Curvability - to create convex and concave screens
• Plug-n-Play Module and Core Design - for easy installation and onsite maintenance
• Made for Mobile
  • Ergonomic design: lift and install in one movement
  • 24% lighter than traditional panels
  • Front or rear serviceable
• Perfect Picture
  • Flicker free broadcast ready high refresh rate
  • Sharp color & brightness uniformity
  • Equipped with Absen AffinityTM
• Superior Support Solutions
  • Drop, pop & lock curvable ground structure
  • Eyebolt and 2" clamp hanging bars
  • Pre-loaded touring cart available

Specifications:

• PIXEL PITCH: 2.97 mm
• PIXEL CONFIGURATION: 3-in-1 SMD
• PANEL SIZE (WxHxD):
  • 1'8" x 1'8" x 4"
  • 500 x 500 x 96 mm
• CABINET MATERIAL: Magnesium Alloy
• PIXEL MATRIX PER PANEL: (WxH) 168 x 168 pixel
• PANEL WEIGHT: 16.8 lb / 7.6 kg
• IP RATING (FRONT/REAR): IP40 / IP21
• VIEWING ANGLE (H/V): 140° / 120°
• BRIGHTNESS: 1,000 nits
• REFRESH RATE: 3,840 Hz
• GRAYSCALE: 14 bit / 18+ bit*
• CERTIFICATION: TUV-CE / ETL, FCC

Absen HDX660 LED HD Processor

HDX660 is a controller with a single-unit loading capacity of 1920×1200@60Hz. HDX660 utilizes UART to cascade and control multiple units. Suitable for a variety of applications, especially rental and fixed installations such as stage broadcasts, monitoring centers, sports arenas, and more.

Specifications:

• 12bit/10bit HDMI input, DVI input
• HDMI.DVI loop output for cascading or monitoring
• HDCP Blue-ray directly input
• 8bit video source loading capacity of 1920×1200@60Hz
• 12bit video source loading capacity of 1440×900@60Hz
