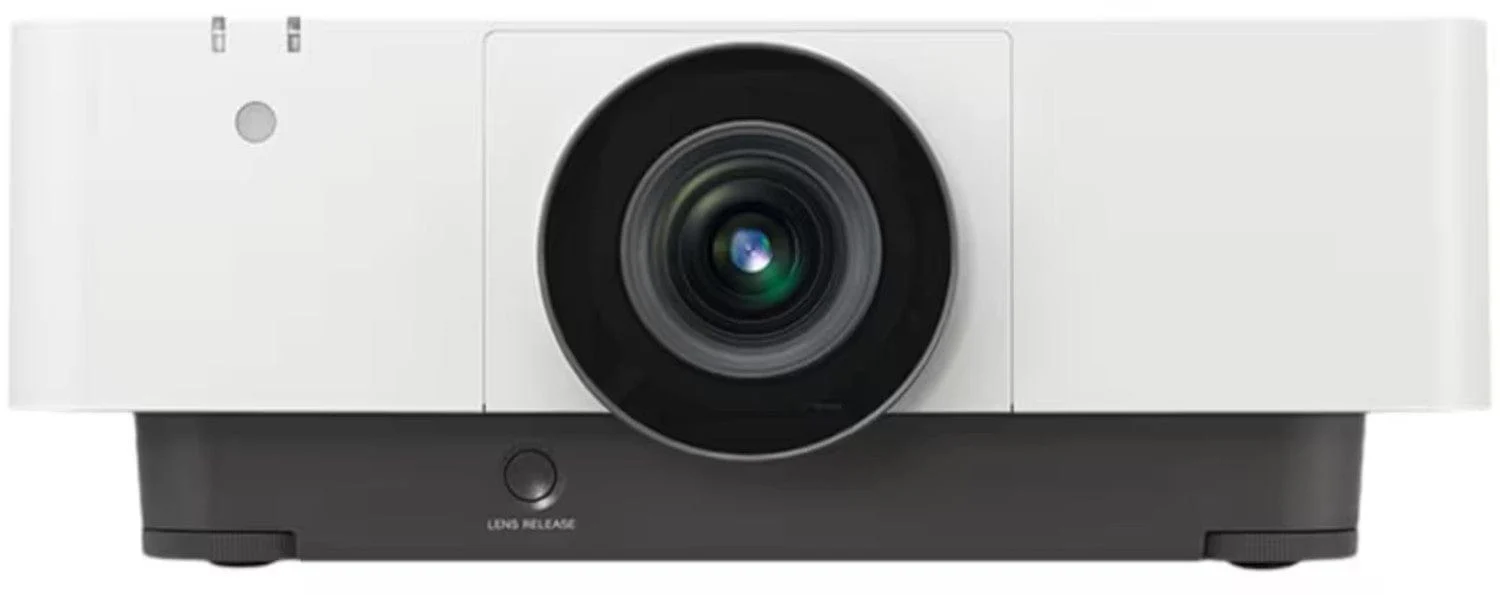

Sony VPLFHZ85/W WUXGA 7300 Lumen Laser 3LCD Projector (White)

Powerful, compact, light and superbly styled, these 3LCD laser projectors are bursting with the latest Sony innovations to deliver consistently rich, bright, colourful images. With versatile installation options and reduced maintenance they’re ideal for projection in mid-size corporate, education and public environments.

Features:

Sophisticated Design & Simplified Installation
Intelligent Settings
Automated Filter Cleaning
Dust Prevention
Data Cloning
Auto Input Select
Auto Power On

Specifications:

Display system: 3 LCD system
Display device:
- Size of effective display area: New LCD panel 0.76" (19 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
- Number of pixels: 6,912,000 (1920 x 1200 x 3) pixels
Projection lens:
- Focus: Powered
- Zoom - Powered/Manual: Powered
- Zoom - Ratio: Approx. x 1.6
- Throw ratio: 1.39:1 to 2.23:1
- Lens shift - Powered/Manual: Powered
- Lens shift - Range Vertical: -5%, +70%
- Lens shift - Range Horizontal: +/- 32%
Light source:
- Type: Laser diode
Screen size:
- Screen size: 40'' to 600'' (1.02 m to 15.24 m) (measured diagonally)
Light output:
- Mode: Standard: 7300lm / 8000lm (Center)
- Mode: Middle: 5840lm
- Mode: Low
Colour light output:
- Mode: Standard: 7300lm
- Mode: Middle: 5840lm
- Mode: Low
Time until light output declines to 50 %*5:
- Mode: Standard: 20000 hours
- Mode: Middle: 30000 hours
Contrast ratio (full white / full black): ∞:1
Displayable scanning frequency:
- Horizontal: 15 kHz to 93 kHz
- Vertical: 23 Hz to 63 Hz
Accepted signal resolution:
- Computer signal input: Maximum signal resolution: 1920 x 1200
- Video signal input: NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p,3840/60p, 3840/30p, 3840/25p, 3840/24p,4096/60p, 4096/30p, 4096/25p, 4096/24p
Keystone correction (Max.):
- Horizontal: +/- 30 degrees
- Vertical: +/- 30 degrees
INPUT OUTPUT (Computer / Video / Audio / Control):
- INPUT A:
  - RGB / Y PB PR input connector: Mini D-sub 15 pin (female)
  - Audio input connector: Stereo mini jack
- INPUT B:
  - DVI input connector: DVI-D 24-pin (single link), HDCP support
  - Audio input connector: Shared with INPUT A
- INPUT C:
  - HDMI input connector: HDMI 19-pin, HDCP support
  - Audio input connector: HDMI audio support
- INPUT D: HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control)
- VIDEO IN:
  - Video input connector: BNC
  - Audio input connector: Shared with input A
- OUTPUT A:
  - Monitor output for Input A Connector: Mini D-sub 15-pin (female)
  - Audio output connector: Stereo mini jack
- OUTPUT B:
  - Monitor output for Input B Connector: DVI-D 24-pin (single link), HDCP not supported
  - Audio output, Monitor out connector: Stereo mini jack
- REMOTE: D-sub 9-pin (male) / RS232C
- LAN: RJ45, 10BASE-T/100BASE-TX
- IR (Control S): Stereo mini jack, Plug in power DC5V
- USB: TYPE-A (for F/W update) , TYPE-A (for Power supply)
Acoustic Noise:
- Acoustic Noise (Mode: Standard / Middle): 38 dB / 36 dB
Operating temperature / Operating humidity: 0°C to 45°C (32°F to 109°F) / 20% to 80% (no condensation)
Storage temperature / Storage humidity: -10°C to +60°C (14°F to +140°F) / 20% to 80% (no condensation)
Power requirements: AC 100 V to 240 V, 5.1 A to 2.2 A, 50 Hz / 60 Hz
Power consumption:
- AC 100 V to 120 V: Mode: Standard: 506 W
- AC 220 V to 240 V: Mode: Standard: 474 W
Power consumption (Standby Mode):
- AC 100 V to 120 V: 0.5W (when “Standby mode” is set to “Low”)
- AC 220 V to 240 V: 0.5W (when “Standby mode” is set to “Low”)
Power consumption (Networked Standby Mode):
- AC 100 V to 120 V:
  - 9.8 W (LAN)
  - 10.6 W (HDBaseT)
  - 10.6 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")
- AC 220 V to 240 V:
  - 10.9 W (LAN)
  - 11.6 W (HDBaseT)
  - 11.6 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")
Standby Mode / Networked Standby Mode Activated: Approx. 10 Minutes
Heat dissipation:
- AC 100 V to 120 V: 1617 BTU/h
- AC 220 V to 240 V: 1727 BTU/h
Dimensions (W x H x D) (without protrusions) : 460 x 169 x 494 mm (18 1/8 x 6 3/4 x 19 1/2 inches)
Mass: Approx. 13 kg (29 lb)
Optional accessories:
- Projection Lens: VPLL-3003 / 3007 / Z3009 / Z3010 / Z3024 / Z3032
